S5048PV5-EI-GL H3C S5000V5 Series Switch

S5048PV5-EI-GL

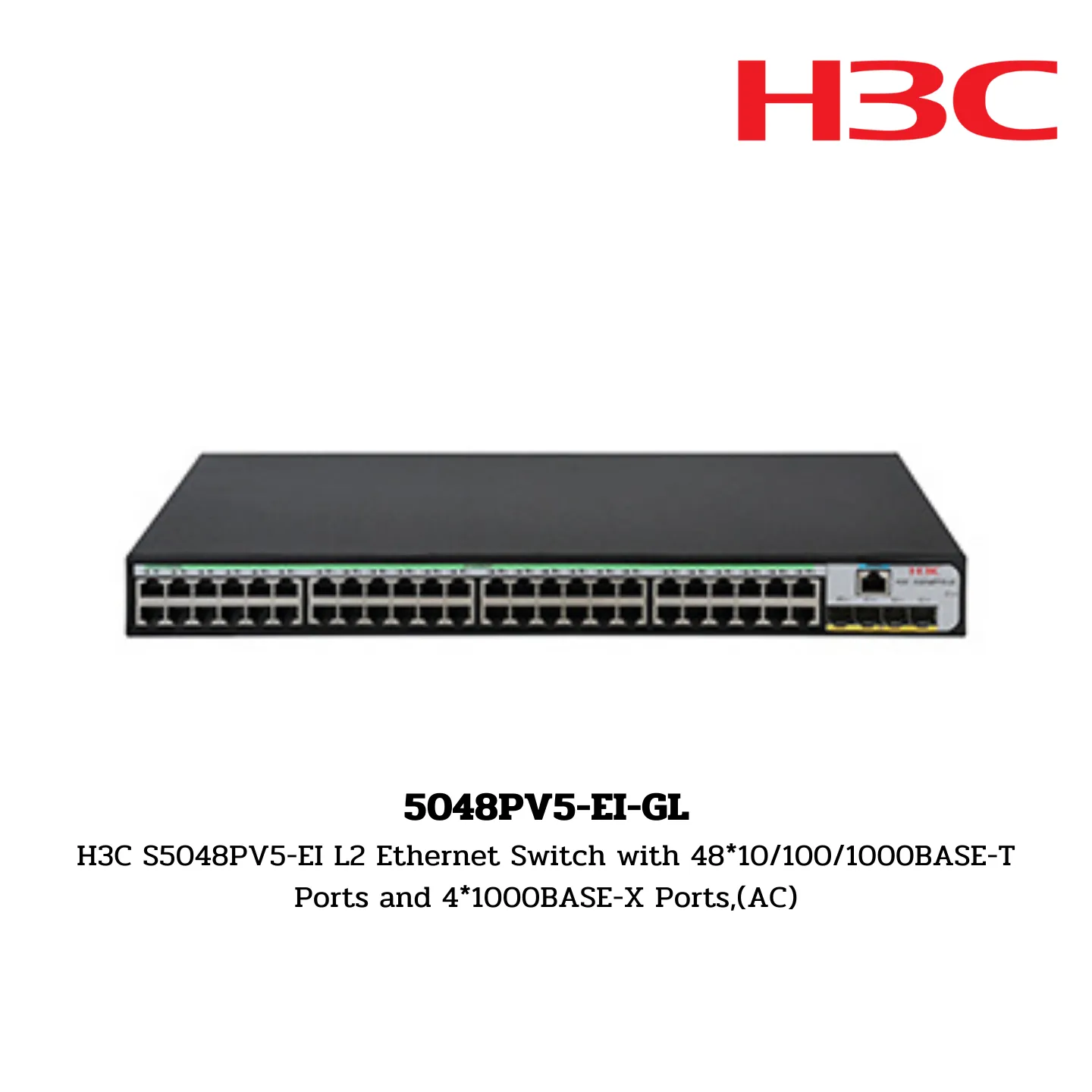

H3C S5048PV5-EI L2 Ethernet Switch with 48*10/100/1000BASE-T Ports and 4*1000BASE-X Ports,(AC)

Brand:

• H3C

Hardware Specifications

Switching Capacity:

• 104Gbps

Packet Forwarding Rate:

• 78Mpps

Management Port:

• 1 console port

10/100/1000 Base-T Ports:

• 48

SFP Ports:

• 4

Copper Port Features:

• Half-duplex, full-duplex, auto-negotiation, MDI/MDI-X

Ethernet Functions:

• LLDP
• Static MAC configuration
• MAC address learning limit (up to 8K)
• Port mirror and flow mirror
• Link aggregation (up to 8 ports per group)
• Port isolation
• STP/RSTP/MSTP
• IEEE 802.3ad (Dynamic link aggregation)
• Static port aggregation

VLAN:

• 802.1Q (up to 4K VLAN)
• Protocol-based VLAN
• IP subnet based VLAN
• MAC based VLAN
• GUEST VLAN

IP Routing:

• Static routing

DHCP:

• DHCP Relay
• DHCP Client
• DHCP Snooping
• DHCP Snooping Option82

Broadcast:

• IGMP V1/V2/V3 Snooping

QoS:

• Diff-Serv QoS
• WRR/HQ-WRR
• 802.1p
• DSCP priority mapping
• Directional port speed limit

ACL:

• ACL on layer 2, layer 3, and layer 4
• ACL on IPv4, IPv6
• VLAN ACL

IPv6:

• IPv6 static routing
• Dual-stack
• DHCPv6 Client
• DHCPv6 Snooping
• ND
• PMTU
• IPv6 Ping
• IPv6 Telnet
• IPv6 SSHv2
• IPv6 domain name resolution

Reliability:

• Hot patch
• In-service patch upgrade

Security:

• Hierarchical user management and password protection
• SSHv2, SSL
• Specific IP address based FTP logging and password mechanism
• Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet, and protocol packet
• Prevent Dos attack
• IP + MAC + PORT + VLAN binding
• IEEE 802.1x
• SAVI source address validity authentication
• Radius
• HWTACACS
• SNMPv3
• Broadcast suppression
• Prevent CPU attack

System Management:

• Console/AUX
• Modem/Telnet/SSH2.0/CLI
• Loading and upgrading through FTP/TFTP/Xmodem/SFTP
• SNMP V1/V2c/V3
• NTP
• System log
• Cluster management

Environment Temperature:

• Operating temperature: -5℃ to 50℃
• Storage temperature: -40℃ to 70℃

Environment Humidity:

• Operating humidity: 5% to 95%, non-condensing
• Storage humidity: 5% to 95%, non-condensing

Environment Protection:

• RoHs, EEE

Power Consumption:

• MIN: 18W
• MAX: 41W

Fan Number:

• 1

PoE+:

MTBF (Mean Time Between Failures):

• 115.68 years

MTTR (Mean Time to Repair):

• 1 hour

Weight:

• ≤3.5kg

Input Voltage Range:

• AC: 100V～240V AC, 50/60Hz

Dimensions (W × D x H):

• 440 × 230 × 43.6 mm
