S5170-28S-EI-GL H3C S5170S Series Switch

S5170-28S-EI-GL

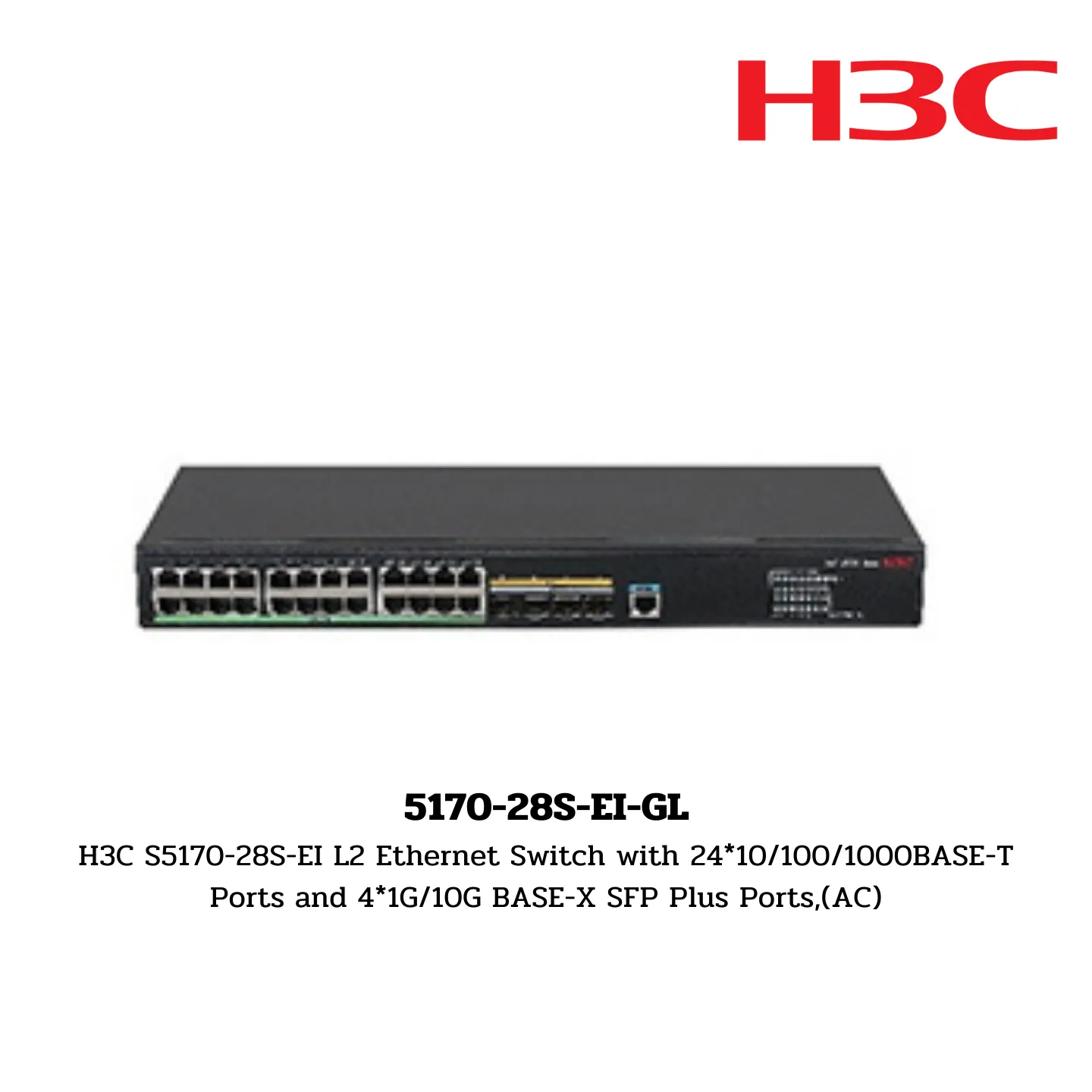

H3C S5170-28S-EI L2 Ethernet Switch with 24*10/100/1000BASE-T Ports and 4*1G/10G BASE-X SFP Plus Ports,(AC)

Hardware Specifications

Port Switching Capacity:

• 128Gbps

System Switching Capacity:

• 598Gbps

Forwarding Capacity:

• 96Mpps

Flash:

• 512MB

SDRAM:

• 1GB

Buffer (bytes):

• 2MB

CPU:

• 1GHz, 2 Cores

Dimensions (W × D × H):

• 440 × 160 × 43.6 mm

Weight:

• ≤2.2kg

10/100/1000 Base-T Ports:

• 24

SFP+ Ports:

• 4

Input Voltage:

• AC: Rated voltage range: 100V~240V AC, 50/60Hz
• Max voltage range: 90V~264V AC, 47~63Hz

Power Consumption (full configuration):

• 37W

Number of Fans:

• 1

MTBF (Mean Time Between Failures):

• 105.515 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with transmission distance between 20km and 80km)
• -5℃ to 40℃ (when using transceiver modules with maximum transmission distance ≥ 80km)

Storage Temperature:

• -40℃ to 70℃

Operating & Storage Relative Humidity (non-condensing):

• 5% to 95%
