Switch H3C รุ่น 5560X-54C-PWR-EI-GL

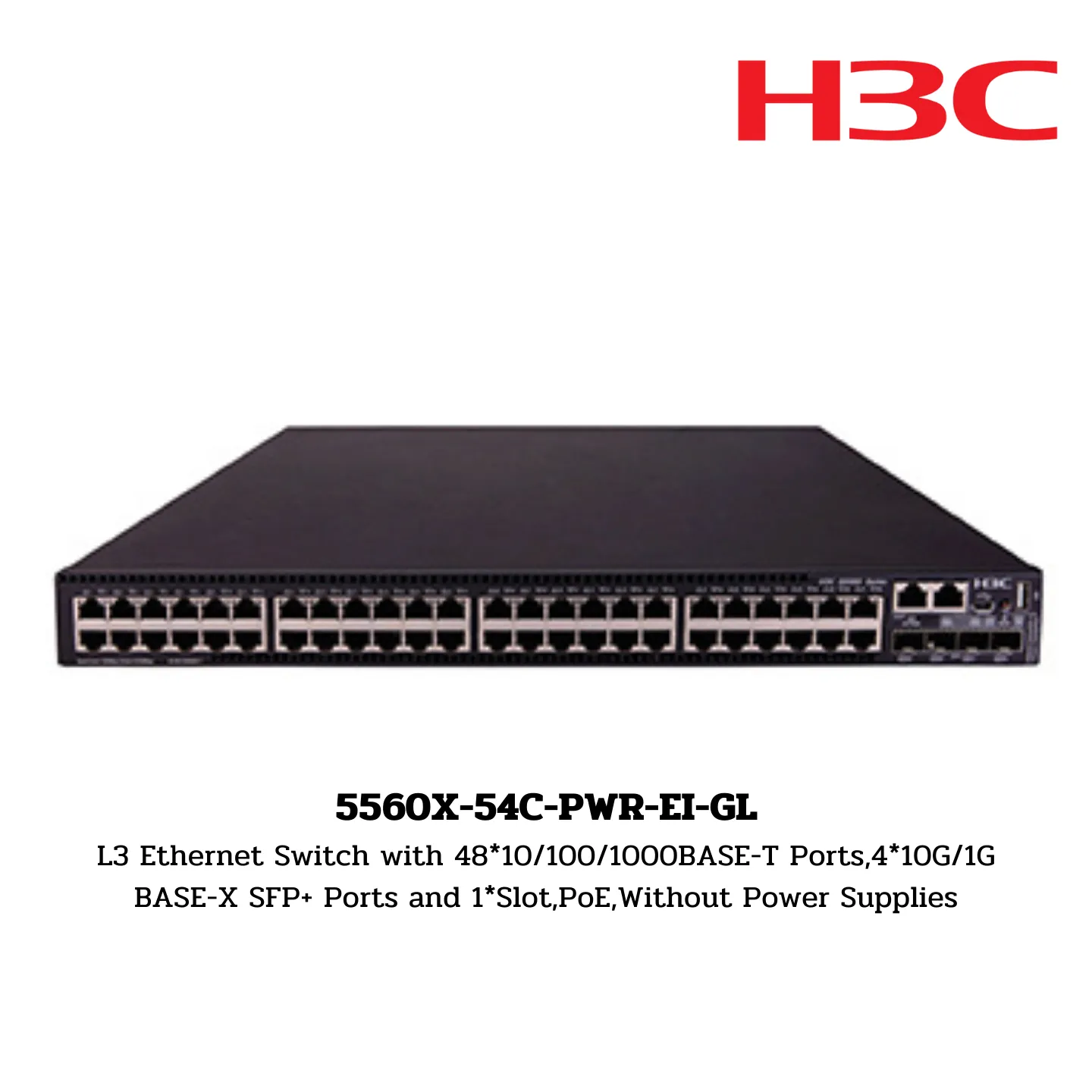

5560X-54C-PWR-EI-GL
L3 Ethernet Switch with 48*10/100/1000BASE-T Ports,4*10G/1G BASE-X SFP+ Ports and 1*Slot,PoE,Without Power Supplies

Brand:

• H3C

Hardware Specifications

Port Switching Capacity:

• 336Gbps

Packet Forwarding Rate:

• 252Mpps

Box Switching Capacity:

• 598Gbps

Dimensions (H × W × D):

• 43.6 × 440 × 460 mm (1.72 × 17.32 × 18.11 in)

Weight:

• ≤9.6kg (21.16 lb)

CPU:

• Dual Core, 800MHz

Flash/SDRAM:

• 1GB/2GB

Packet Buffer:

• 4MB

Management Ethernet Ports:

• 1

Console Ports:

• 1 × RJ-45 console port
• 1 × Micro-USB console port

(Note: Only the Micro-USB console port is available when both ports are connected.)

Service Ports:

• 48 × 10/100/1000Base-T autosensing Ethernet ports
• 4 × 10G SFP+ ports

Expansion Slots:

• 1

Compatible Interface Modules:

• 2-port 40GE QSFP+ interface module
• 2-port 25G SFP28 interface module
• 2-port 10G SFP+ interface module
• 2-Port 10G BASE-T Interface Card with MACSec
• 2-Port 10G SFP Plus Interface Card with MACSec
• 4-Port 10/100/1000BASE-T Ethernet, 6-Port SFP (2-Port Combo) Interface Module
• 8-Port 10G SFP Plus with MACSec Interface Module
• 8-Port 1/2.5/5G BASE-T Ethernet Copper Interface Module
• 8-Port 1/2.5/5/10G BASE-T Ethernet Copper Interface Module

AC Input Voltage (PSR360-56A/PSR720-56A):

• Rated: 100 VAC to 240 VAC @ 50 Hz/60 Hz
• Max: 90 VAC to 264 VAC @ 47 Hz to 63 Hz

AC Input Voltage (PSR1110-56A):

• Rated: 115 VAC to 240 VAC @ 50 Hz/60 Hz
• Max: 102.5 VAC to 264 VAC @ 47 Hz to 63 Hz

DC Input Voltage (PSR560-56D):

• Rated: –48 VDC to –60 VDC
• Max: –36 VDC to –72 VDC
• You can use a –48 VDC power source in the equipment room or an H3C RPS (RPS1600-A).

Power Consumption:

• Minimum:
  • Single AC input: 33W
  • Dual AC inputs: 40W
  • Single DC input: 48W
  • Dual DC inputs: 66W
• Maximum:
  • Single 1110W AC input: 1090W (including 810W for PoE)
  • Dual 1110W AC inputs: 1742W (including 1440W for PoE)
  • Single 560W DC input: 502W (including 360W for PoE)
  • Dual 560W DC inputs: 1003W (including 810W for PoE)

MTBF (Mean Time Between Failures):

• 133.40 years

MTTR (Mean Time to Repair):

• 1 hour

Operating Temperature:

• -5℃ to 50℃ (normal operating temperature)
• -5℃ to 45℃ (when using transceiver modules with transmission distance ≥ 10km)

Storage Temperature:

• -40℃ to 70℃ (-40℉ to 158℉)

Operating & Storage Humidity:

• 5% RH to 95% RH, non-condensing

MAC Address Entries:

• 65,536

VLAN Table:

• 4094

VLAN Interface:

• 1024

Active VLAN:

• 4094

IPv4 Routing Entries:

• 32,768

IPv4 ARP Entries:

• 32,768

IPv4 ACL Entries:

• Ingress: 2048
• Egress: 512

IPv4 Multicast L2 Entries:

• 4000

IPv4 Multicast L3 Entries:

• 4000

IPv6 Unicast Routing Entries:

• 16,384

QoS Forward Queues:

• 8

IPv6 ACL Entries:

• Ingress: 2048
• Egress: 512

IPv6 ND Entries:

• 16,384

IPv6 Multicast L2 Entries:

• 4000

IPv6 Multicast L3 Entries:

• 2000

Jumbo Frame Length (Bytes):

• 10000

Maximum Stacking Members:

• 9

Maximum Stacking Bandwidth:

• 160Gbps

LACP Group:

• 128

Maximum Number in One LACP Group:

• 32
