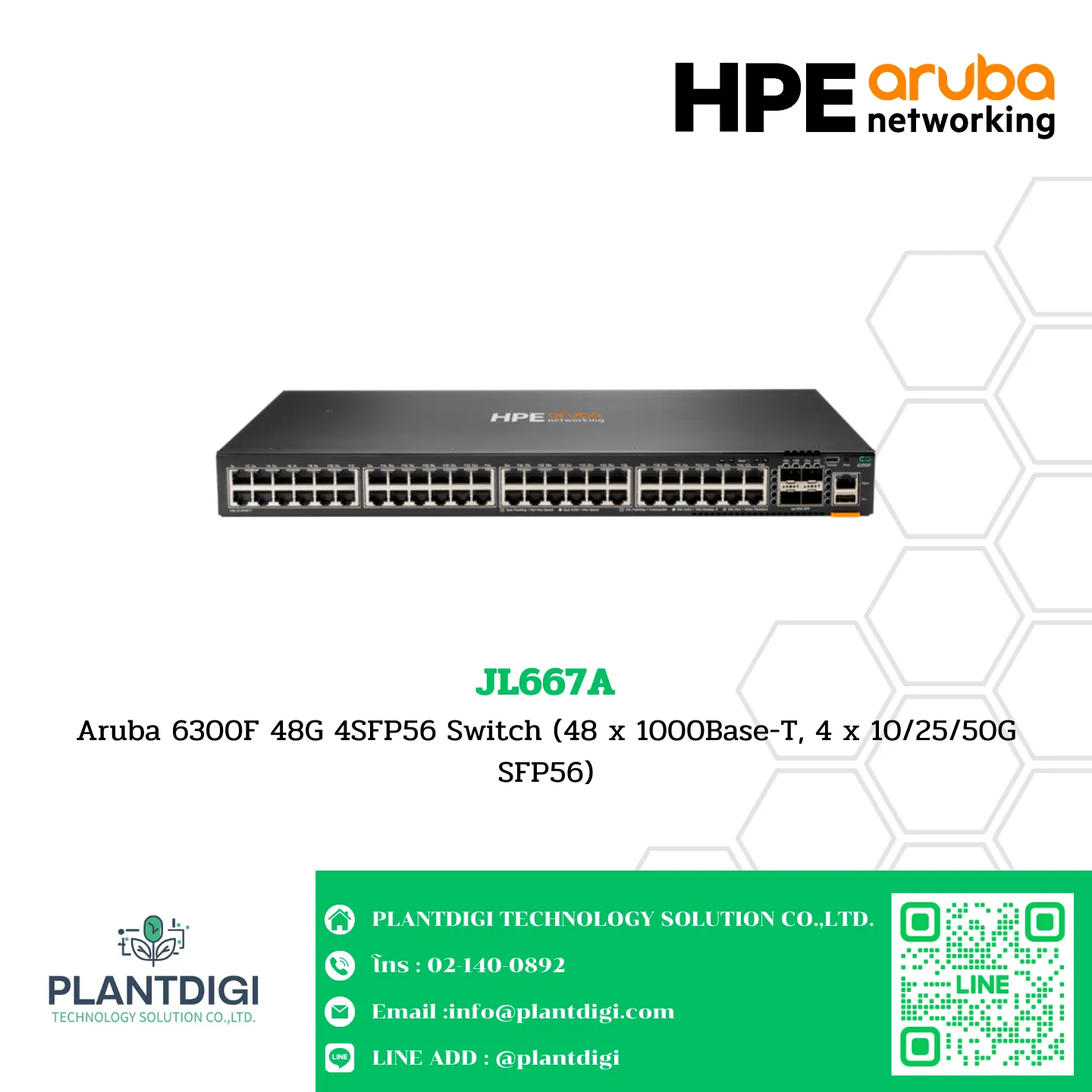

Switch Aruba OS-CX HPE รุ่น JL667A

JL667A
Aruba 6300F 48G 4SFP56 Switch (48 x 1000Base-T, 4 x 10/25/50G SFP56)

Hardware Specifications

Differentiator:

• Aruba 6300F 48-port 1GbE and 4-port SFP56 Switch is ideal for enterprise branch offices, campuses, and SMB networks.

Power Consumption:

• Idle: 52W
• 100% Traffic Rate: 74W

Input Voltage:

• Fixed PSU: 100V-120V / 200V-240V

Ports:

• (48) 10/100/1000BASE-T ports
• (4) 1G/10G/25G/50G* SFP ports
• Supports PoE Standards IEEE 802.3af, 802.3at
• (1) USB-C Console Port
• (1) OOBM Port
• (1) USB Type A Host Port

Notes:

• 50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.

Latency:

• 1Gbps: 2.28 μs
• 10Gbps: 1.46 μs
• 25Gbps: 1.90 μs
• 50Gbps: 3.49 μs

Switch Fabric Speed:

• Built-in wirespeed 1/10/25/50GbE* and 40/100GbE uplinks
• *50G capability is for use with 50G DACs for both interconnect and VSF stacking. 50G transceivers and DACs are not supported on S0E91A and S0X44A switch models, which requires QSFP to SFP56 DAC cable for VSF stacking with other CX 6300F and CX 6300M switch models only. VSF stacking not supported on 1G ports.

Switching Capacity:

• 496 Gbps

Stacking Capabilities:

• Up to 10 switches per stack

Throughput:

• 369 Mpps

Memory and Processor:

• Quad Core ARM Cortex™ A72 @ 1.8GHz
• 8 GBytes DDR4
• 32 GBytes eMMC
• 8 MB Shared Packet Buffer Memory

Management Features:

• HPE Aruba Networking AirWave
• HPE Aruba Networking Central Network Management
• HPE Aruba Networking NetEdit
• Command-line interface
• SNMP v2c/v3
• RMON

Weight:

• 4.46 kg (9.83 lbs)

Dimensions:

• 4.4 × 44.2 × 32.7 cm (1.73 × 17.4 × 12.9 in)
