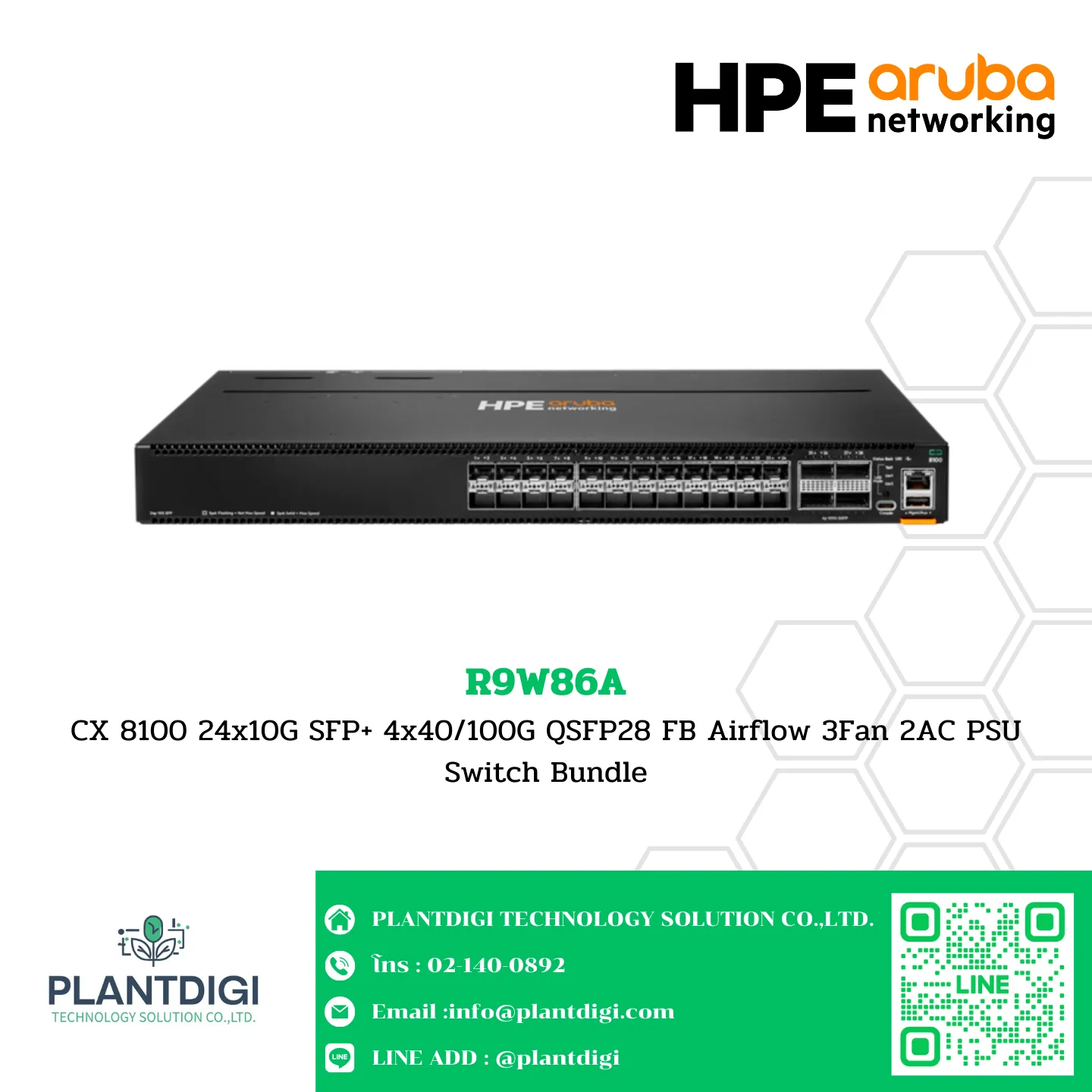

Switch Aruba OS-CX HPE รุ่น R9W86A

R9W86A
CX 8100 24x10G SFP+ 4×40/100G QSFP28 FB Airflow 3Fan 2AC PSU Switch Bundle

Hardware Specifications

Differentiator:

• The HPE Aruba Networking CX 8100 Switch series is based on ArubaOS-CX, a modern, database-driven operating system that automates and simplifies many critical and complex tasks. The enhanced capabilities of ArubaOS-CX provide a unique set of differentiators for campus and data center switching.

Ports:

• (24) 1GbE/10GbE (SFP/SFP+)
• (4) 40GbE/100GbE (QSFP+/QSFP28)

Power Consumption:

• Idle: 120W
• Max: 375W

Heat Dissipation:

• 1275 BTU/hr

Input Voltage:

• 100-127V 7.1A for 100-127VAC
• 200-240V 3.4A for 200-240VAC

Switching Capacity:

• 1.28 Tbps

Memory and Processor:

• Quad Core ARM Cortex™ A72 @ 1.8 GHz

Power Supply:

• Bundles include the 2 power supplies (2xJL600A in R9W86A, R9W88A, R9W90A & R9W92A)

Operating Temperature:

• Up to 32°F to 113°F (0°C to 45°C) up to 5000 ft depending on the model

Management Features:

• RJ-45 serial and USB-C console
• RJ-45 Ethernet port
• USB-Type A

Additional Features:

• Includes 2 Power Supplies with No open PS slots
• Includes 3 Fan Trays with No open FT Slots
• Includes 1 2-Post Rack Kit
• Min=0 Max= 24 SFP/SFP+ 1/10G Transceivers
• QSA28 Adapter Min=0 Max=6 (rule6)
• 1U – Height
