Switch HPE FlexNetwork รุ่น JL826A

JL826A

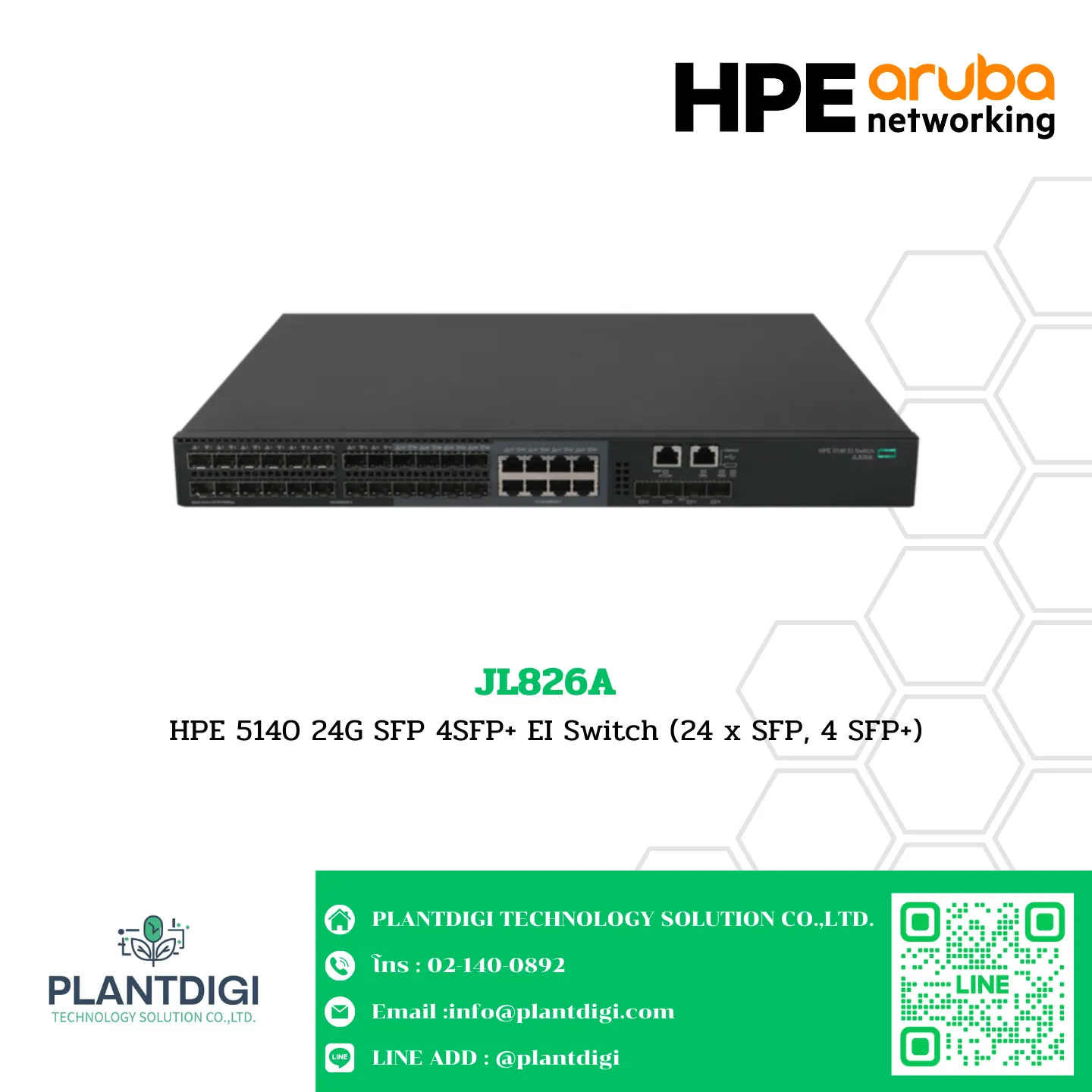

“HPE 5140 24G SFP 4SFP+ EI Switch (24 x SFP, 4 SFP+)

Hardware Specifications

Power Consumption:

• 60W (Maximum), 30W (Idle)
  • Notes: Idle power is the actual power consumption of the device with no ports connected. Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated.
  • Power ratings for AC power supply is indicated previously.
  • For DC input power, idle power is 38W and maximum is 68W.
  • DC maximum input current is 8A. Units are supplied without a power supply.
  • Customer must buy 1 or 2 JD362B (AC) or JD366B (DC) power supply.

Heat Dissipation:

• Maximum: 102/204 BTU/hr. (107.61/215.22 kJ/hr.) for AC powered units.
• For DC powered units, heat dissipation is 130 BTU/hr. minimum, 232 BTU/hr. maximum.

Input Voltage:

• AC Voltage: 100 VAC–240 VAC
• DC Voltage: –48 VDC to –60 VDC

Ports:

• (16) SFP 100/1000 Mbps ports
• (8) SFP dual-personality ports—10/100/ 1000BASE-T RJ-45 or 100/1000BASE-X Combo Ports
• (4) SFP+ fixed 1000/10000 SFP+ ports
• (1) RJ-45 serial console port

Latency:

• 1000 Mb latency: < 5 µs
• 10 Gbps latency: < 3 µs

Routing Capabilities:

• Table Size: 1024 entries
• MAC address: 16,384 entries
• IPv6 Ready Certified

Switching Capacity:

• 128 Gbps

Stacking Capabilities:

• IRF 9 switches

Throughput:

• 95 Mpps

Memory and Processor:

• 512 MB SDRAM
• 256 MB flash

Power Supply:

• 1 minimum power supply required (ordered separately)

Operating Temperature:

• 23°F to 113°F (–5°C to 45°C)

Management Features:

• HPE Aruba Networking IMC – Intelligent Management Center
• SmartMC
• Command-line interface
• Web browser
• SNMP manager

Detailed Product Description:

• 24 SFP ports (Of the 24, 8 are dual-personality ports – autosensing 10/100/1000BASE-T or SFP) min=0 / max=24 SFP Transceivers
• 4 SFP+ ports min=0 / max=4 SFP+ Transceivers
• Must select min 1 power supply
• 1U Height

Weight:

• 6 kg (13.23 lbs)

Dimensions:

• 4.36 × 44 × 36 cm (1.72 × 17.32 × 14.17 in)
