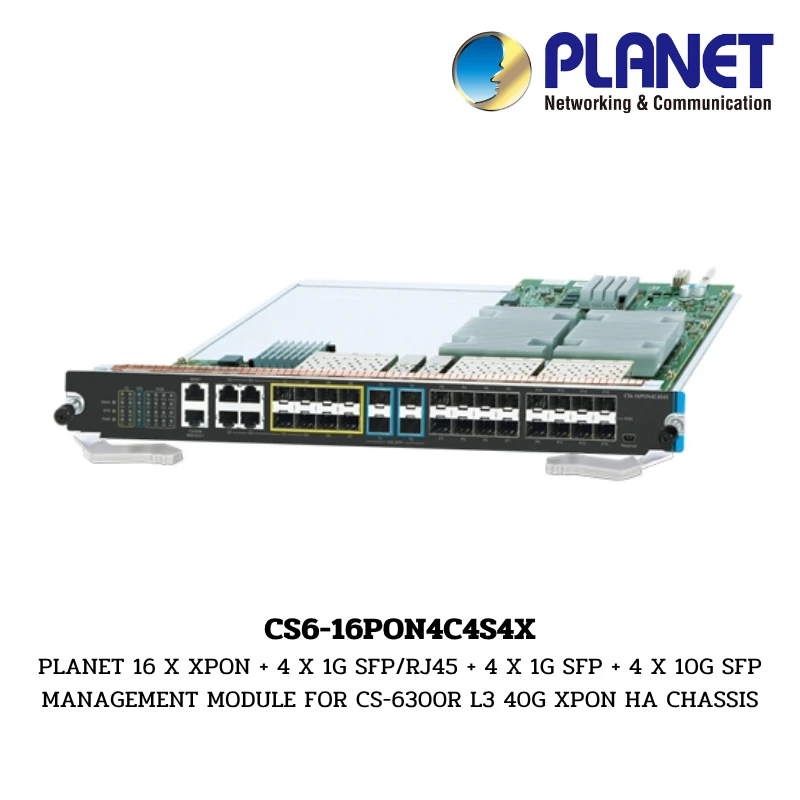

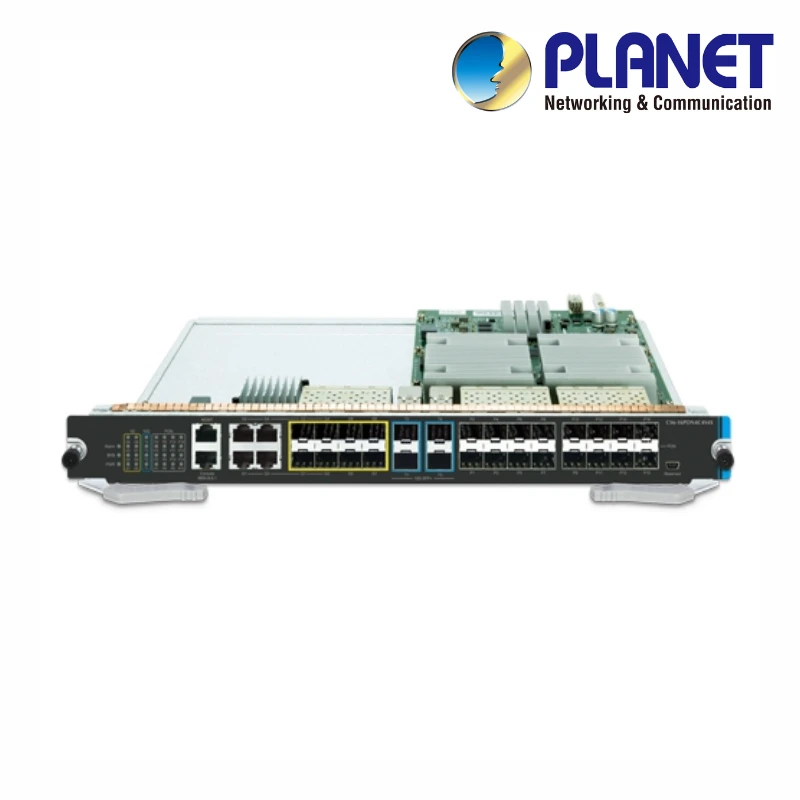

(CS6-16PON4C4S4X) PLANET 16 X XPON + 4 X 1G SFP/RJ45 + 4 X 1G SFP + 4 X 10G SFP MANAGEMENT MODULE FOR CS-6300R L3 40G XPON HA CHASSIS

IEEE 802.3 10BASE-T / 100BASE-TX / 1000BASE-SX/LX / 1000T

IEEE 802.3ae 10GbE / IEEE 802.3ba 40GbE

IEEE 802.3x Flow Control / IEEE 802.3ad Port Trunk with LACP

IEEE 802.1D STP / 802.1w RSTP / 802.1s MSTP

IEEE 802.1p CoS / 802.1Q VLAN / 802.1ad Q-in-Q

IEEE 802.1x Port Authentication / 802.1ab LLDP

RFC 791 IP / 792 ICMP / 2068 HTTP / 1112 IGMP v1 / 2236 IGMP v2 / 3376 IGMP v3

RFC 2710 MLD v1 / 3810 MLD v2 / 2328 OSPF v2 / 1058 RIP v1 / 2453 RIP v2

RFC 2080 RIPng / 2740 OSPFv3

Static routing, RIP v1/v2, OSPFv2, BGP (Border Gateway Protocol), IS-IS

PIM-DM, PIM-SM, PIM-SSM

VRRP, Policy routing, Load balance (Equal-cost routing)

GR (Graceful Restart) for OSPF/BGP, BFD (Bidirectional Forwarding Detection)

RIPng, OSPFv3, BGP4+

PIM-DM, PIM-SM, PIM-SSM

Manual tunnel, ISATAP tunnel, 6-to-4 tunnel

ICMPv6, DHCPv6, ACLv6, IPv6 Neighbor Discovery, Path MTU Discovery

Port Configuration (Enable/Disable, Auto-negotiation, Bandwidth control, Loopback detect)

TX/RX/Both Port Mirroring (Many to 1)

802.1Q Tagged VLAN, 802.1ad Q-in-Q, GVRP, Private VLAN (Up to 4K groups)

STP/RSTP/MSTP (BPDU protection, Root protection)

IGMP v1/v2/v3 Snooping, MLD v1/v2 Snooping, MVR (Up to 8K multicast groups)

QoS (8 priority queues, WRR, SP, SP+WRR, DiffServ, Policy-based QoS)

Standard/Expanded ACL (IP, MAC, Time-based), Ingress 2560 / Egress 1024 entries

MAC address limitation/filtering, MAC sticky (IP+MAC+Port binding)

Port isolation, DHCP snooping (Option 82), Dynamic ARP inspection, IP source guard

Defend against DoS or TCP attacks, AAA (TACACS+, RADIUS), IEEE 802.1x

Console, Telnet, SSHv2, Web browser, SNMP v1/v2/v3, SSLv3

IPv4/IPv6 Dual stack management, SNMP RMON (1, 2, 3, 9)

Firmware upgrade / Config upload-download via TFTP

sFlow and Netflow statistics analysis, Syslog server
