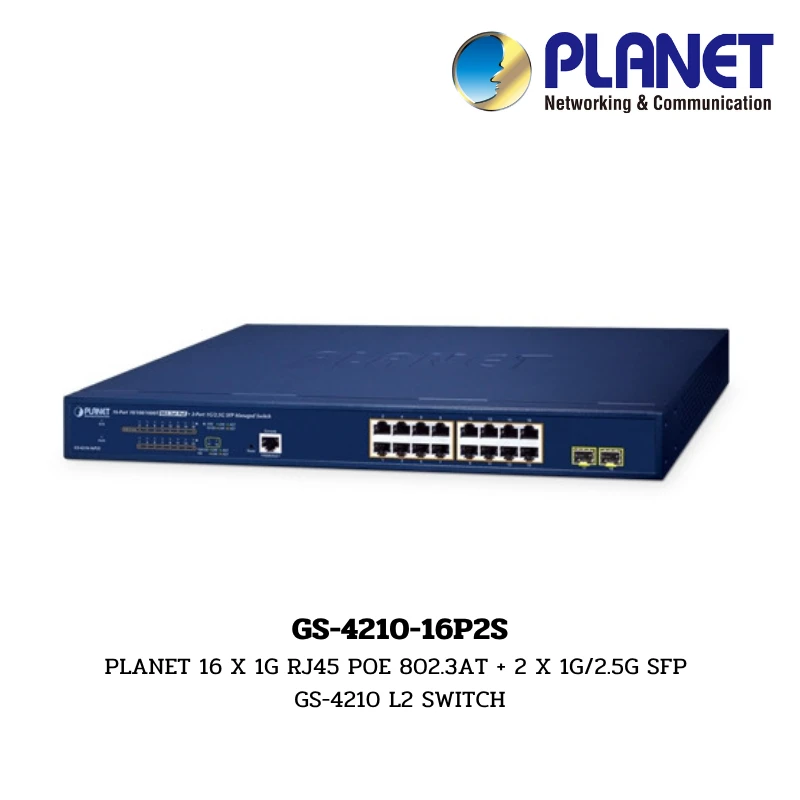

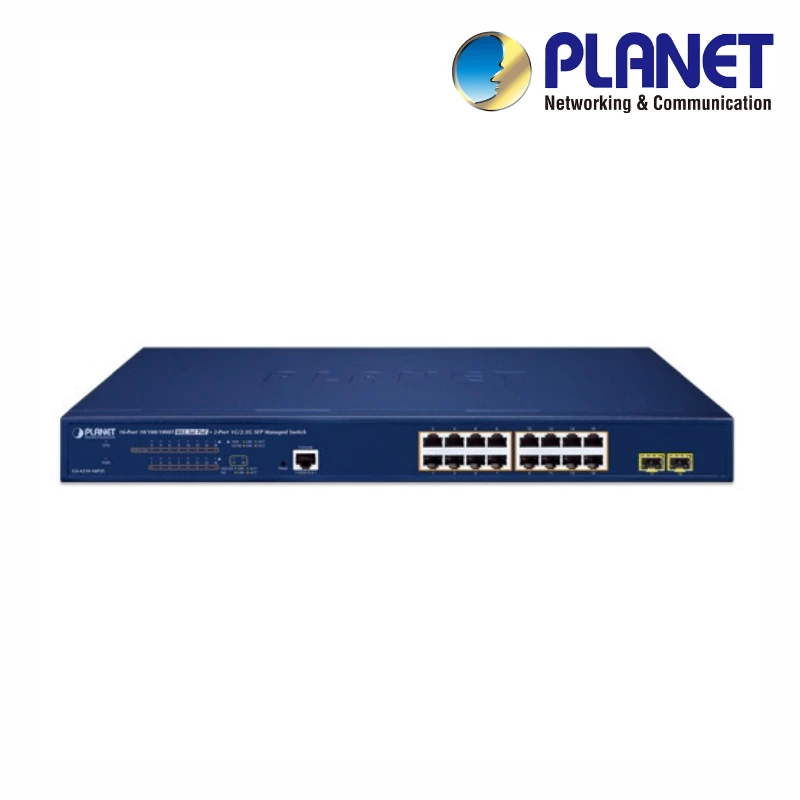

(GS-4210-16P2S) PLANET 16 X 1G RJ45 POE 802.3AT + 2 X 1G/2.5G SFP GS-4210 L2 SWITCH
Planet GS-4210-16P2S เป็น Managed PoE+ Switch ขนาดมาตรฐาน 1U Rack-mount ที่มาพร้อมพอร์ต Gigabit Ethernet จำนวน 16 พอร์ต รองรับการจ่ายไฟมาตรฐาน 802.3at PoE+ และพอร์ต SFP Uplink อีก 2 พอร์ต ออกแบบมาเพื่อเป็นโซลูชันเครือข่ายที่คุ้มค่าสำหรับธุรกิจ SMB และระบบกล้องวงจรปิด IP ขนาดกลาง รองรับการจัดการผ่าน Web GUI ที่ใช้งานง่าย พร้อมฟีเจอร์ความปลอดภัยระดับองค์กรและการสำรองเครือข่ายด้วย ERPS Ring ที่รวดเร็ว
ข้อมูลจำเพาะ (Specifications)
| รายการ (Feature) | รายละเอียด (Description) |
| Copper Ports | 16 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X Ports |
| PoE Injector Port | 16 802.3af/802.3at PoE Injector Ports (Port 1 to Port 16) |
| SFP Slots | 2 100/1000BASE-X SFP interfaces (Supports dual mode) |
| PoE Power Budget | 220 watts |
| PoE Power Output | Per Port 52V DC, max. 30 watts (802.3at) / 15.4 watts (802.3af) |
| PoE Management | PD Alive Check, Scheduled Power Recycling, PoE Schedule, PoE Usage Monitoring, PoE Extension (up to 250m) |
| Console | 1 x RS-232-to-RJ45 serial port (115200, 8, N, 1) |
| Power Requirements | 100~240V AC, 50/60Hz, 4A (max.) |
| Power Consumption | Max. 281 watts / 964 BTU |
| Fan | 2 Thermal Fans |
| Enclosure | Metal, 1U height |
| ESD Protection | Contact Discharge 6KV DC / Air Discharge 8KV DC |
| Switch Architecture | Store-and-Forward, 36Gbps non-blocking fabric |
| Switch Throughput | 26.78Mpps @ 64 bytes |
| MAC Address Table | 8K entries, 4Mbits Shared Data Buffer |
| Jumbo Frame | 9216 bytes |
| Protocols |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 ITU G.8032 ERPS Ring |
| Layer 2 Functions |
Port Mirroring (TX/RX/Both, Many-to-1) 802.1Q tagged-based VLAN, Q-in-Q, Voice VLAN, Protocol VLAN, Private VLAN, GVRP IEEE 802.3ad LACP and Static Trunk STP, RSTP, MSTP IPv4 IGMP (v2/v3) snooping / IPv6 MLD (v1/v2) snooping QoS (8 mapping IDs, 8 level priority, Strict priority/WRR) Supports ERPS Ring (Recovery time < 450ms) Ingress/Egress Rate Limit per port bandwidth control |
| Security Functions |
IPv4/IPv6 IP-based ACL / MAC-based ACL IEEE 802.1X Port-based authentication / RADIUS client RADIUS/TACACS+ user access authentication IP-MAC port binding, MAC filter, Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention / ARP inspection / IP source guard STP BPDU guard, BPDU filtering and BPDU forwarding |
| Management |
Web browser, Telnet, SNMP v1, v2c, v3, SSHv2, TLS v1.2 Firmware upgrade by HTTP/TFTP, LLDP, SNTP PLANET Smart Discovery Utility / NMS System / CloudViewer app Remote/Local Syslog |
| Weight | 2.8 kg |
| Dimensions (W x D x H) | 445 x 207 x 45 mm |
| Environment | Operating: 0 ~ 50 degrees C / Humidity: 5 ~ 95% (non-condensing) |
| Compliance | FCC Part 15 Class A, CE |
