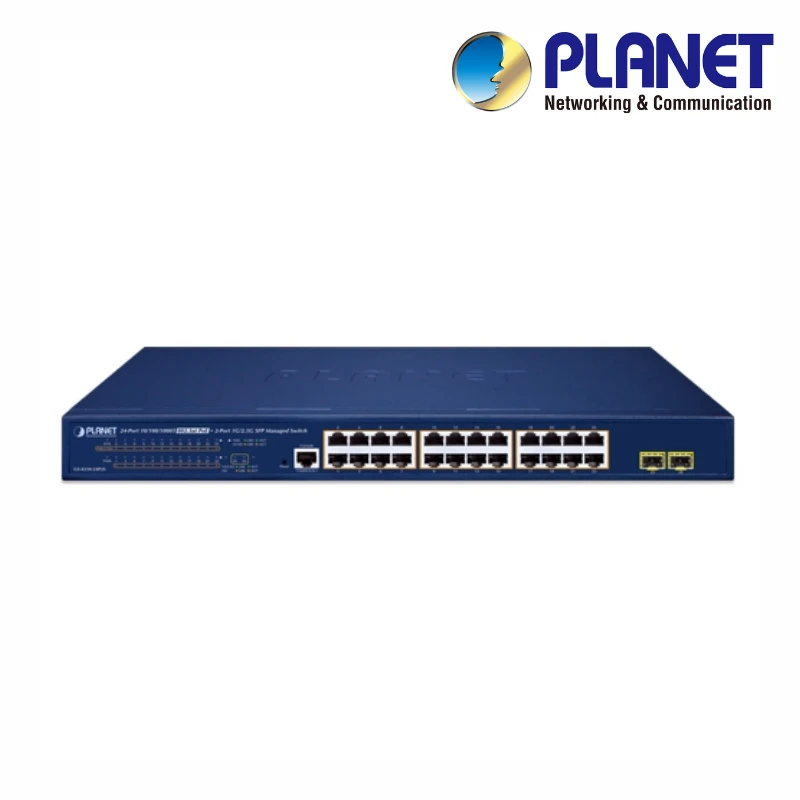

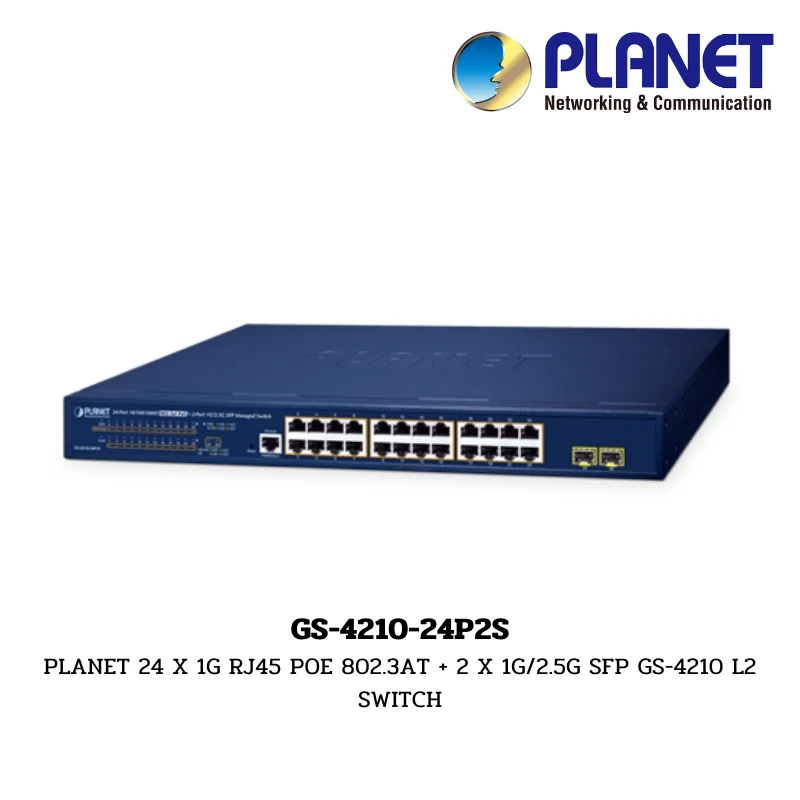

(GS-4210-24P2S) PLANET 24 X 1G RJ45 POE 802.3AT + 2 X 1G/2.5G SFP GS-4210 L2 SWITCH

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3ab Gigabit 1000BASE-T

IEEE 802.3z Gigabit SX/LX

IEEE 802.3x flow control and back pressure

IEEE 802.3ad port trunk with LACP

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN Tagging

IEEE 802.1x Port Authentication Network Control

IEEE 802.1ab LLDP

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

RFC 768 UDP

RFC 783 TFTP

RFC 791 IP

RFC 792 ICMP

RFC 793 TCP

RFC 2068 HTTP

RFC 1112 IGMP version 1

RFC 2236 IGMP version 2

RFC 3376 IGMP version 3

RFC 2710 MLD version 1

RFC 3810 MLD version 2

ITU-T G.8032 ERPS Ring

Port Mirroring (TX/RX/both, Many-to-1)

IEEE 802.1Q tagged-based VLAN, Q-in-Q, Voice VLAN, Private VLAN, GVRP

IEEE 802.3ad LACP and Static Trunk (8 groups, 8-port per trunk)

STP, RSTP, MSTP, BPDU Guard/Filtering/Forwarding

IPv4 IGMP (v2/v3) snooping / IPv6 MLD (v1/v2) snooping

QoS (8 mapping IDs, 8 level priority, Strict priority/WRR)

Supports ERPS Ring (Recovery time < 450ms)

Ingress/Egress Rate Limit per port bandwidth control

IPv4/IPv6 IP-based ACL / MAC-based ACL (Max. 256 entries)

IEEE 802.1X Port-based authentication / RADIUS/TACACS+ authentication

IP-MAC port binding, MAC filter, Static MAC address

DHCP Snooping and DHCP Option82

DoS attack prevention / ARP inspection / IP source guard

Web browser, Telnet, SNMP v1, v2c, v3, SSHv2, TLS v1.2/v1.3

Firmware upgrade by HTTP/TFTP, LLDP, SNTP

PLANET Smart Discovery Utility / NMS / CloudViewerPro / CloudNMS

Remote/Local Syslog / SMTP remote alarm
