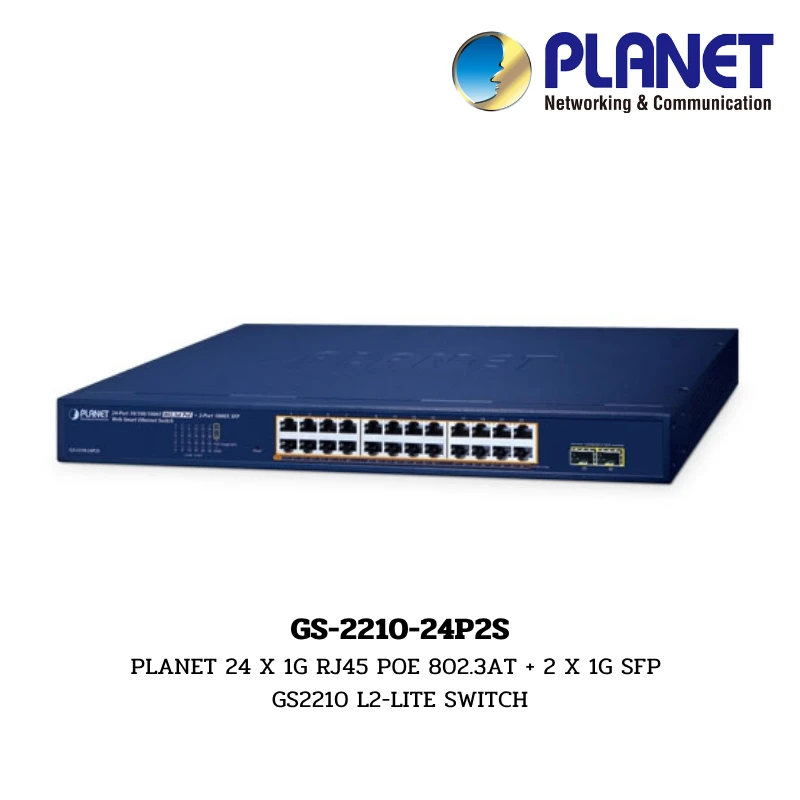

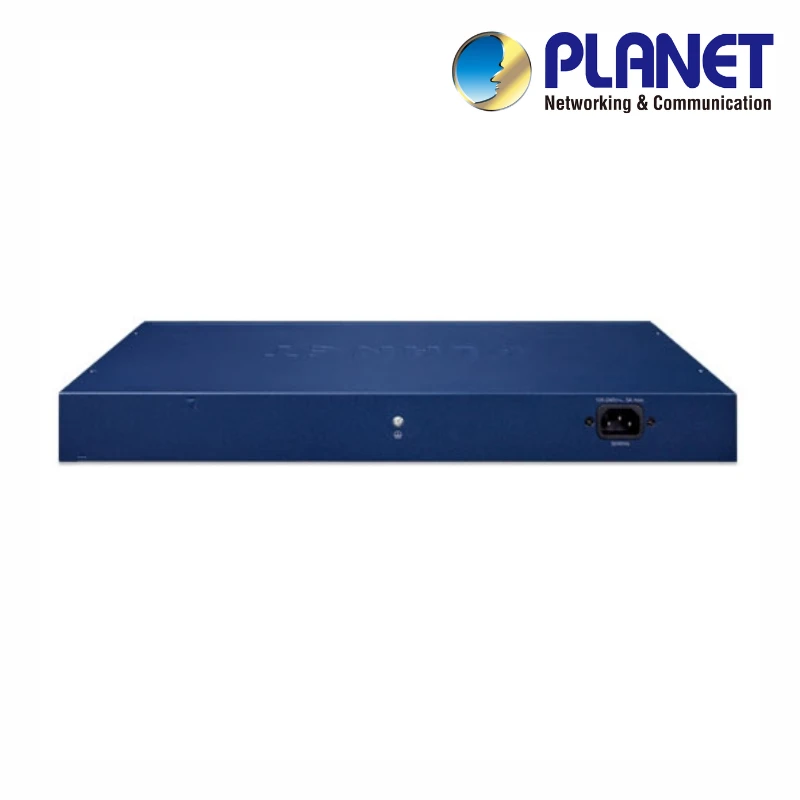

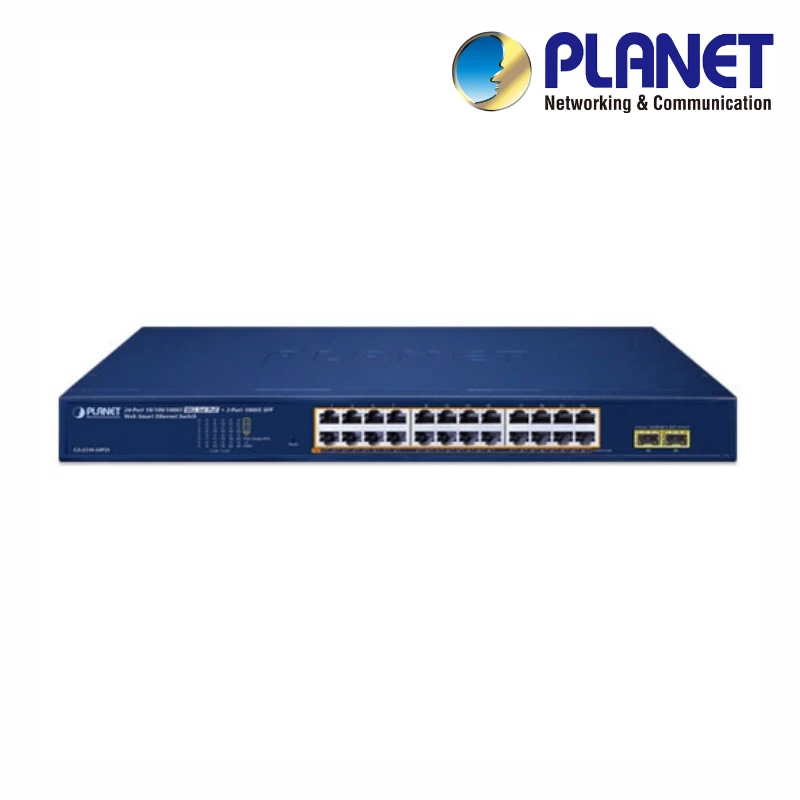

(GS-2210-24P2S) PLANET 24 X 1G RJ45 POE 802.3AT + 2 X 1G SFP GS2210 L2-LITE SWITCH
Planet GS-2210-24P2S เป็น Managed PoE+ Switch ขนาด 1U Rack-mount ประสิทธิภาพสูงในซีรีส์ L2-Lite ที่ออกแบบมาเพื่อรองรับความหนาแน่นของอุปกรณ์ปลายทางจำนวนมาก มาพร้อมพอร์ต Gigabit Ethernet ถึง 24 พอร์ต ที่รองรับการจ่ายไฟ PoE+ (30W) และพอร์ต SFP Uplink 2 พอร์ต มีงบประมาณการจ่ายไฟรวมสูงสุดที่ 260 วัตต์ พร้อมระบบแจ้งเตือนอัจฉริยะ PoE Usage 80% เพื่อช่วยให้ผู้ดูแลระบบควบคุมการใช้พลังงานได้อย่างปลอดภัย
ข้อมูลจำเพาะ (Specifications)
| รายการ (Feature) | รายละเอียด (Description) |
| Copper Ports | 24 x 10/100/1000BASE-T RJ45 copper ports |
| PoE Injector Port | 24 ports with 802.3af/802.3at PoE+ injector function |
| SFP Slots | 2 x 100/1000BASE-X SFP interface |
| PoE Power Budget | 260 watts (max.) |
| PoE Power Output | 32 watts (max. per port) |
| Power Requirements | AC 100~240V, 50/60Hz |
| Power Consumption | 9.4 watts (System) / 297 watts (System + PoE) |
| Fan | 2 |
| Enclosure | Metal, 1U height |
| ESD Protection | Contact ±6KV / Air ±8KV |
| Surge Protection | Differential mode ±2KV / Common mode ±4KV |
| Switch Architecture | Store-and-forward, 52Gbps non-blocking fabric |
| Switch Throughput | 38.68Mpps |
| MAC Address Table | 8K entries, 4.1MB Shared Data Buffer |
| Jumbo Frame | 10KBytes |
| Protocols |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3z Gigabit 1000BASE-SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet PLUS RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 |
| Layer 2 Functions |
Port Configuration (EEE Green energy, Port reboot, Flow control, Bandwidth control, Loopback protection) Port Status (Speed, Duplex, Link status, Auto negotiation, Green energy saving status) Port Mirroring (In / Out / All, Many-to-1 monitor) 802.1Q tagged VLAN (up to 4K VLAN groups) Bandwidth Control (TX/RX/Both) Static Link Aggregation (8 groups, 8 ports per trunk group) QoS (8 priority queues, Strict priority/WRR, 802.1p CoS/ToS, IPv4 DSCP) IPv4 IGMP v1/v2 snooping (Up to 256 groups) |
| Security Functions |
Port isolation DHCP Snooping |
| Management |
Web browser, Telnet (Authentication for IPv4 user) Cable Diagnostics, Ping Test PLANET Smart Discovery Utility / NMS system / NMSViewerPro |
| Weight | 2500 g |
| Dimensions (W x D x H) | 440 x 207 x 44 mm |
| Environment | Operating: 0 ~ 50 degrees C / Humidity: 5 ~ 90% (non-condensing) |
| Compliance | FCC Part 15 Class A, CE |
