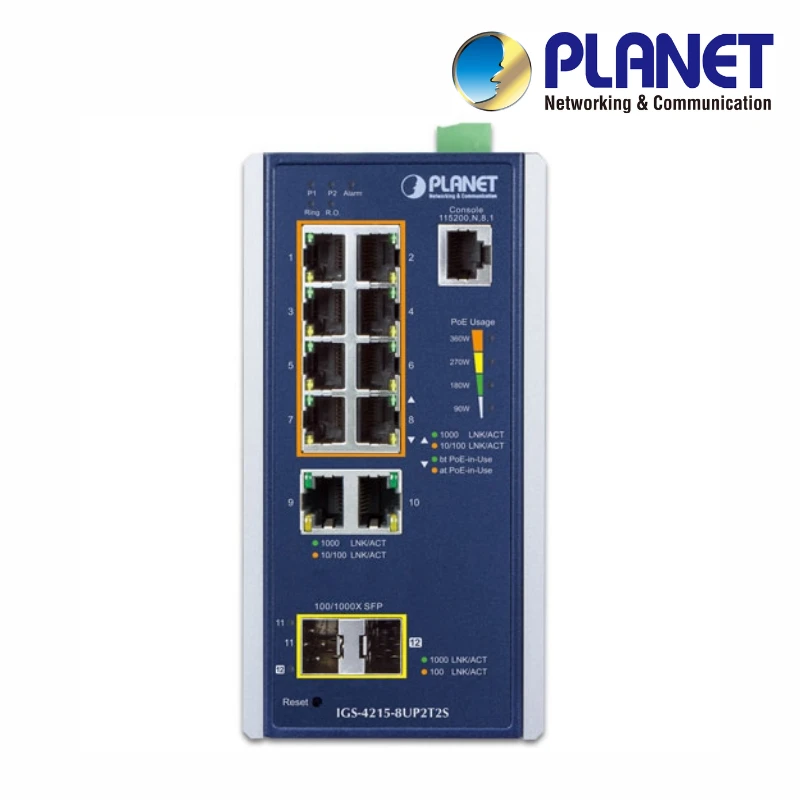

(IGS-4215-8UP2T2S) PLANET 8 X 1G RJ45 POE 802.3BT + 2 X 1G RJ45 + 2 X 1G SFP IGS-4215 L2 INDUSTRIAL SWITCH
Planet IGS-4215-8UP2T2S เป็น Industrial Managed Switch ระดับ Layer 2 รุ่นท็อปที่ออกแบบมาเพื่อรองรับอุปกรณ์ที่ต้องการพลังงานสูงเป็นพิเศษ มาพร้อมพอร์ต Gigabit Ethernet ทั้งหมด 10 พอร์ต โดยมีพอร์ต PoE++ (802.3bt Type-4) จำนวน 8 พอร์ต ซึ่งแต่ละพอร์ตสามารถจ่ายไฟได้สูงสุดถึง 95 วัตต์ และมีพอร์ต SFP อีก 2 พอร์ตสำหรับการเชื่อมต่อไฟเบอร์ออปติกระยะไกล ตัวอุปกรณ์รองรับ PoE Budget สูงสุดถึง 360W (เมื่อใช้แหล่งจ่ายไฟคู่) พร้อมระบบป้องกันไฟกระชาก 4KV และทำงานได้ในอุณหภูมิวิกฤต -40 ถึง 75 องศาเซลเซียส เหมาะสำหรับระบบกล้อง PTZ ความเร็วสูง, จอ Digital Signage ขนาดใหญ่ และอุปกรณ์อุตสาหกรรมยุคใหม่
ข้อมูลจำเพาะ (Specifications)
| รายการ (Feature) | รายละเอียด (Description) |
| Copper Ports | Ten 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports (Ports 1 to 10) |
| PoE Injector Port | Eight ports with 802.3af/802.3at/802.3bt PoE++ injector function (Ports 1 to 8) |
| SFP Ports |
Two 1000BASE-SX/LX/BX SFP interfaces (Ports 11 to 12) Compatible with 100BASE-FX SFP |
| Memory | RAM: 128Mbytes / Flash Memory: 16Mbytes |
| Console | 1 x RS232-to-RJ45 serial port (115200,8, N, 1) |

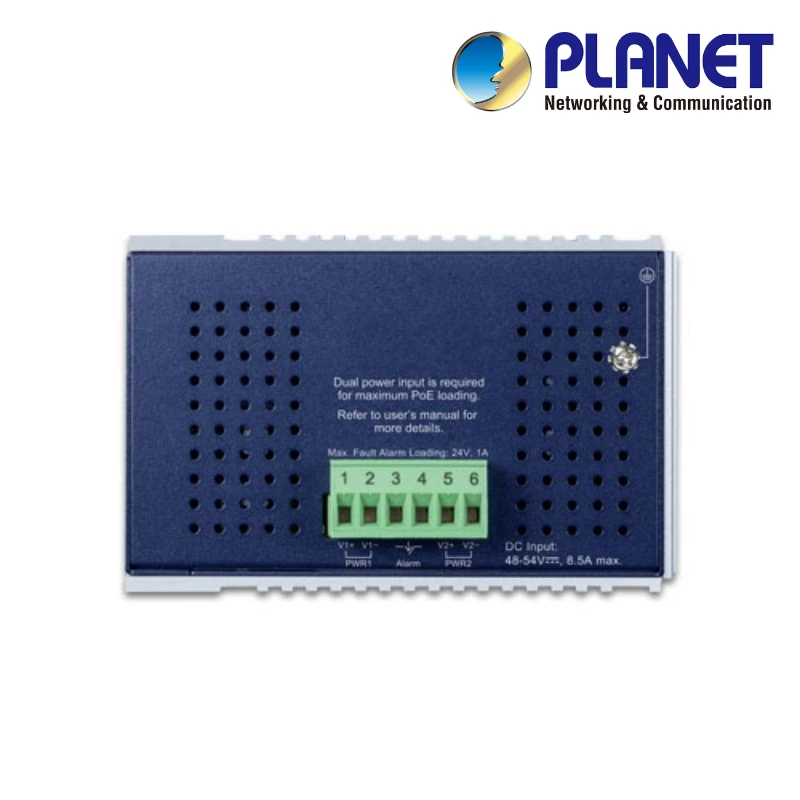

| Connector | Removable 6-pin terminal block (Pin 1/2 Power 1; 3/4 Fault; 5/6 Power 2) |
| Alarm | One relay output for power failure (1A @ 24V AC) |
| Power Requirements | 48~54V DC, 8.5A (max.) (>52V DC for PoE++ output recommended) |
| Power Consumption | System On: Max. 9.18 watts / PoE Full Loading: Max. 390 watts |
| Protection |
ESD: Contact 6KV/Air 8KV DC Surge Protection: 4KV DC |
| Enclosure | IP30 aluminum case, DIN-rail kit and wall-mount ear |
| Switch Architecture | Store-and-Forward, 24Gbps non-blocking fabric |
| MAC Address Table | 8K entries, 4.1 megabits Shared Data Buffer |
| PoE Standard | IEEE 802.3bt PoE++ Type-4 / IEEE 802.3at / IEEE 802.3af |
| PoE Power Budget | Single input: 240W max / Dual power input: 360W max |
| PoE Management | PD Alive Check, Scheduled Power Recycling, PoE Schedule, Usage Monitoring, PoE Extension (up to 250m) |
| Protocols |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az for Energy-Efficient Ethernet RFC 768 UDP RFC 783 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU G.8032 ERPS Ring |
| Layer 2 Functions |
Port Mirroring (TX/RX/Both, Many-to-1) 802.1Q tagged VLAN, Q-in-Q, Voice VLAN, Private VLAN IEEE 802.3ad LACP and static trunk (6 groups) STP, RSTP, MSTP IPv4 IGMP snooping v2, v3 / IPv6 MLD snooping v2, v3 QoS (8 priority queues, Strict priority/WRR) Ingress/Egress Rate Limit bandwidth control Supports ERPS Ring (Recovery time < 450ms) |
| Security Functions |
IPv4/IPv6 IP-based ACL/MAC-based ACL (Max. 256 entries) IEEE 802.1X Port-based authentication RADIUS/TACACS+ user access authentication IP-MAC port binding, MAC filter DHCP Snooping and DHCP Option82 DoS attack prevention ARP inspection / IP source guard |
| Management |
Console, Web browser, Telnet, SNMP v1, v2c, v3, SSHv2, TLS v1.2 Firmware upgrade by HTTP/TFTP, LLDP, SNTP PLANET Smart Discovery Utility / NMS System / CloudViewer Remote/Local Syslog |
| Weight | 1,091 g |
| Dimensions (W x D x H) | 76.8 x 107.3 x 152 mm |
| Environment | Operating: -40 ~ 75 degrees C / Humidity: 5 ~ 95% (non-condensing) |
| Compliance | FCC Part 15 Class A, CE, EN 55032/35, IEC 60068-2-32/27/6 |
