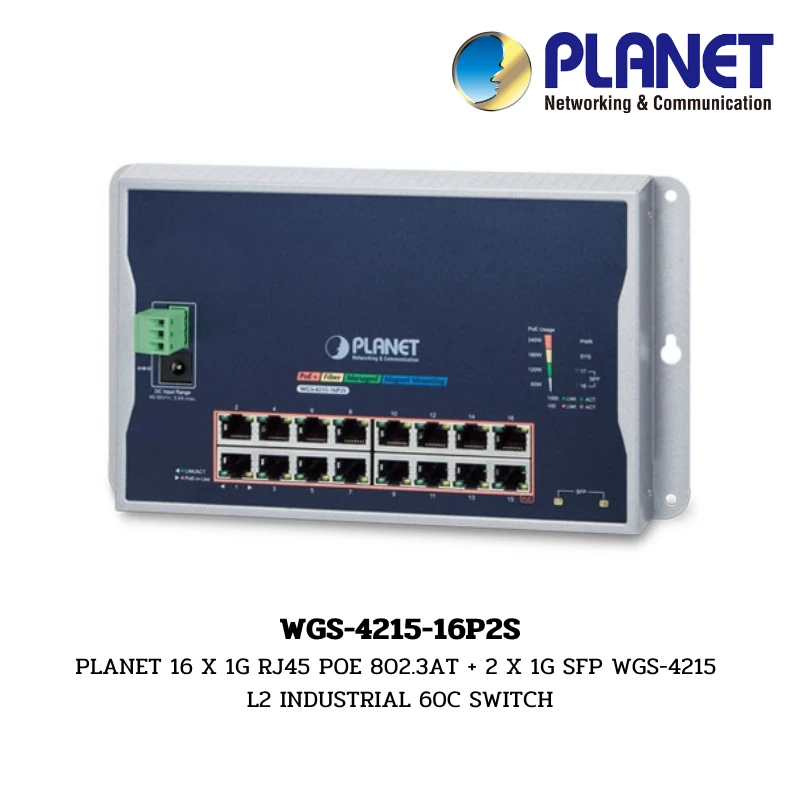

(WGS-4215-16P2S) PLANET 16 X 1G RJ45 POE 802.3AT + 2 X 1G SFP WGS-4215 L2 INDUSTRIAL 60C SWITCH
Planet WGS-4215-16P2S เป็น Industrial Managed Switch ดีไซน์แบบ Flat-type ที่ทรงพลังด้วยจำนวนพอร์ต Gigabit Ethernet ถึง 16 พอร์ต ซึ่งรองรับการจ่ายไฟ PoE+ (30W) ครบทุกพอร์ต ภายใต้ตัวเครื่องที่บางเพียง 24.4 มม. ออกแบบมาเพื่อเพิ่มความหนาแน่นของการเชื่อมต่อในพื้นที่จำกัด เช่น ตู้คอนโทรลริมผนังหรือในอาคารอัจฉริยะ มาพร้อมงบประมาณการจ่ายไฟ 240W และพอร์ต SFP สำหรับการเชื่อมต่อระยะไกล รองรับระบบสำรองเครือข่าย ERPS Ring และฟีเจอร์การจัดการ PoE ที่ครบวงจร
ข้อมูลจำเพาะ (Specifications)
| รายการ (Feature) | รายละเอียด (Description) |

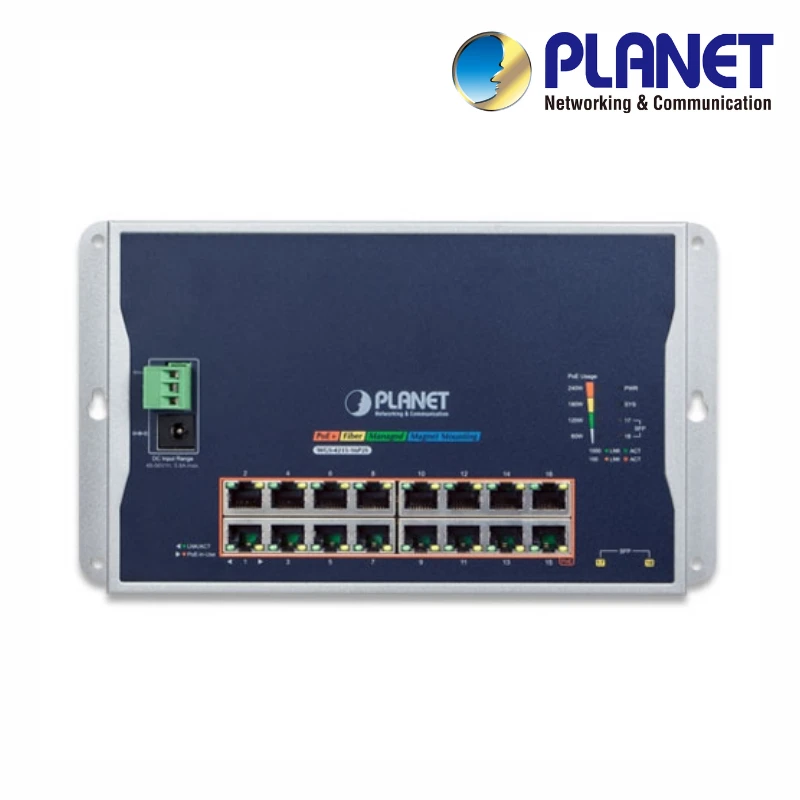

| Copper Ports | Sixteen 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| PoE Inject Port | Sixteen with 802.3at PoE+ injector function (Ports 1 to 16) |

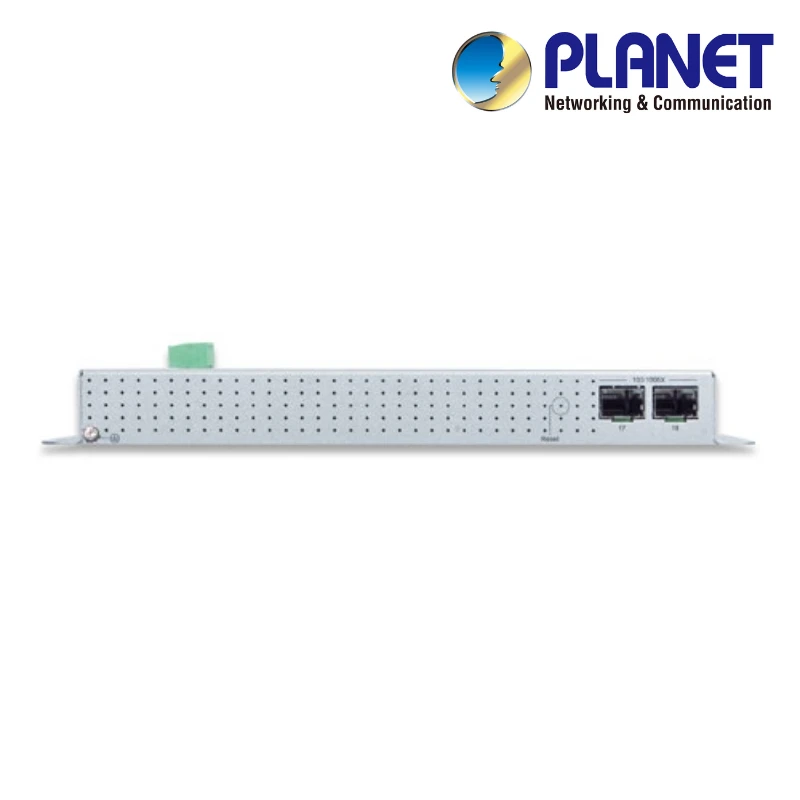

| SFP Ports | Two 100/1000BASE-X SFP interfaces (Supports dual mode) |
| Connector |
Removable 3-pin terminal block (V+, V-, Ground) DC power jack with 2.1mm central pole |
| Power Requirements | 48~54V DC, 5.8A (max.) via Terminal block or DC jack |
| PoE Power Budget | 240 watts (depending on power input) |
| PoE Power Output | 802.3at: Max 36 watts per port / 802.3af: Max 15.4 watts per port |
| PoE Management | PD Alive Check, Scheduled Power Recycling, PoE Schedule, Usage Monitoring, PoE Extension (up to 250m) |
| Power Consumption | Max. 276 watts / 941 BTU |
| Enclosure | IP30 metal case, Flat-type design |

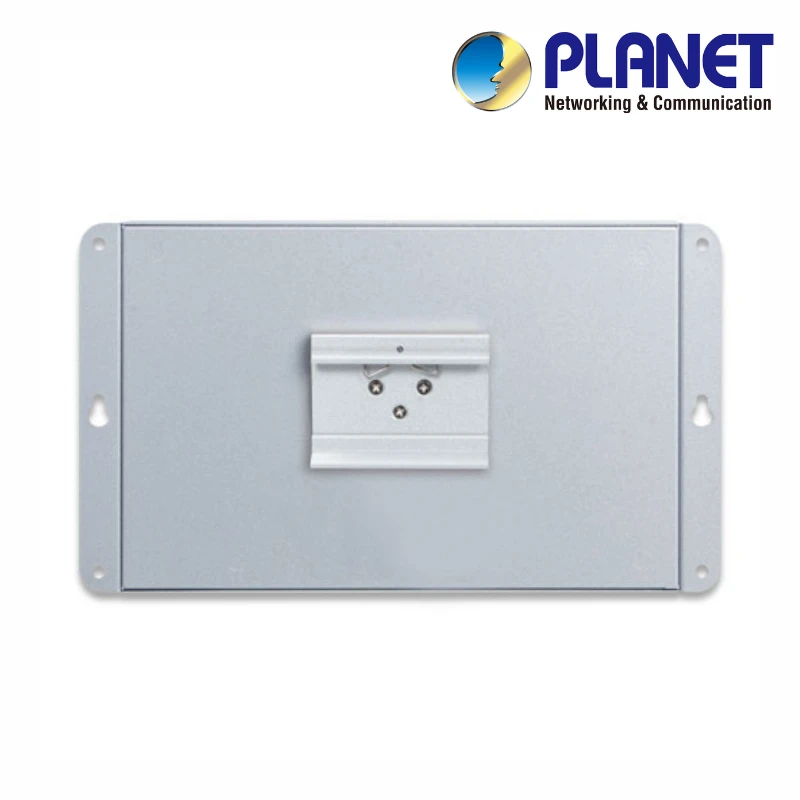

| Installation | Fixed wall mount, magnetic wall mount or DIN rail |
| ESD Protection | Contact Discharge 6KV DC / Air Discharge 8KV DC |
| Switch Architecture | Store-and-Forward, 36Gbps non-blocking fabric |
| Switch Throughput | 26.78Mpps @ 64 bytes |
| MAC Address Table | 8K entries, 4.1 megabits Shared Data Buffer |
| Jumbo Frame | 10Kbytes |
| Protocols |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3ad Port Trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3az Energy Efficient Ethernet (EEE) RFC 768 UDP RFC 783 TFTP RFC 793 TCP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 RFC 3810 MLD v2 ITU G.8032 ERPS Ring |
| Layer 2 Functions |
Port Mirroring (TX/RX/Both, Many-to-1) 802.1Q tagged VLAN, Q-in-Q, Voice VLAN, Private VLAN, GVRP IEEE 802.3ad LACP and static trunk (8 groups, 8 ports per trunk) STP, RSTP, MSTP IPv4 IGMP (v2/v3) snooping / IPv6 MLD (v1/v2) snooping QoS (8 mapping ID, 8 level priority, Strict priority/WRR) Supports ERPS Ring (Recovery time < 450ms) |
| Security Functions |
IPv4/IPv6 IP-based ACL/MAC-based ACL (Max. 256 entries) IEEE 802.1X Port-based authentication RADIUS/TACACS+ user access authentication IP-MAC port binding, MAC filter, Static MAC address DHCP Snooping and DHCP Option82 DoS attack prevention / ARP inspection / IP source guard |
| Management |
Web browser, Telnet, SNMP v1, v2c, v3, SSHv2, TLSv1.2 Firmware upgrade by HTTP/TFTP, LLDP, SNTP PLANET Smart Discovery Utility / NMS System / CloudViewer Pro Remote/Local Syslog |
| Weight | 929 g |
| Dimensions (W x D x H) | 245 x 140 x 24.4 mm |
| Environment | Operating: -10 ~ 60 degrees C / Humidity: 5 ~ 95% (non-condensing) |
| Compliance | FCC Part 15 Class A, CE, IEC 60068-2-32/27/6 |
