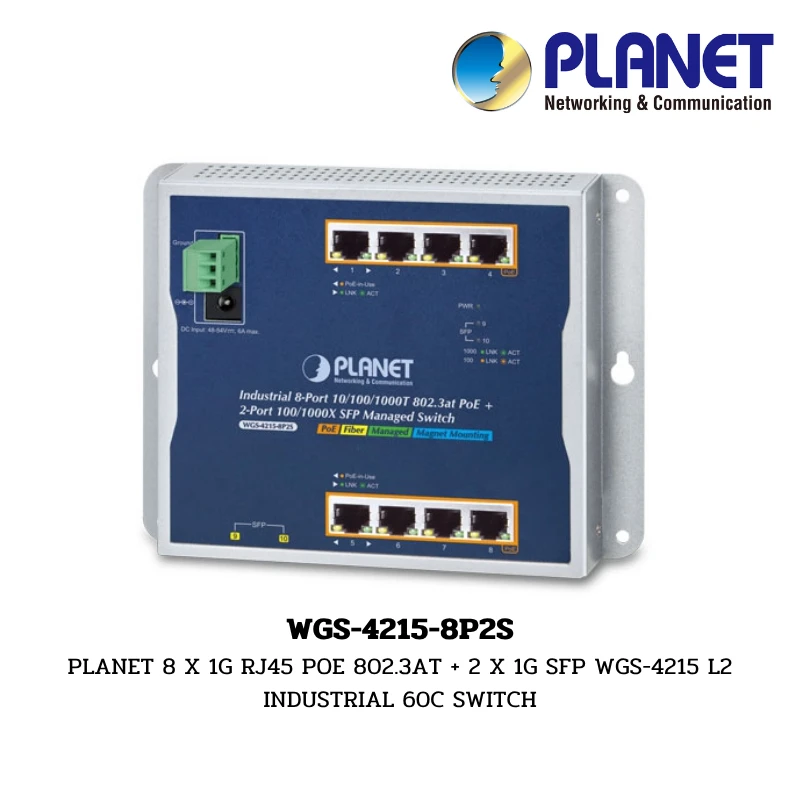

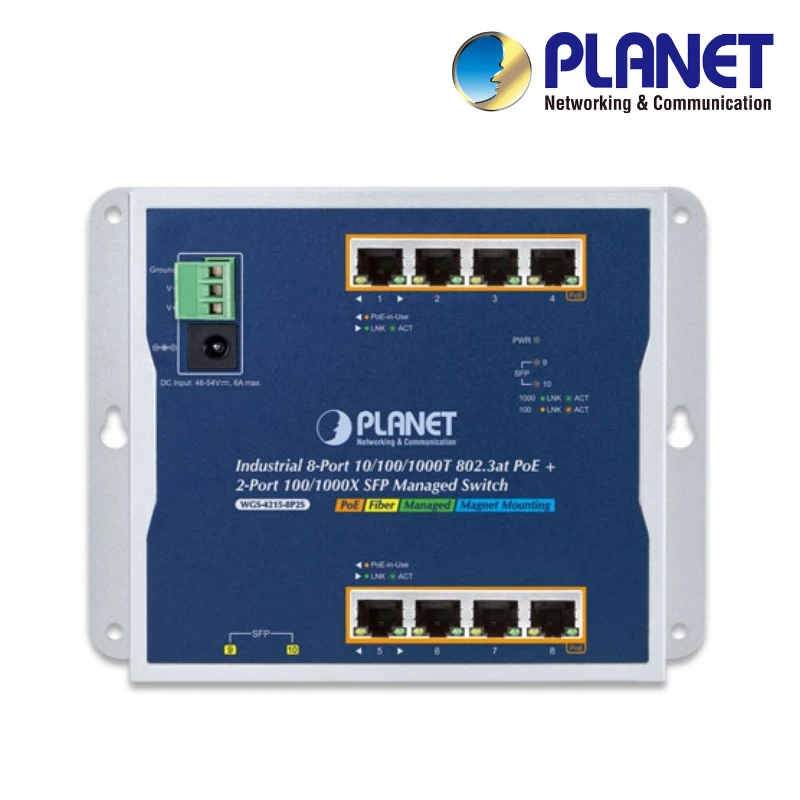

(WGS-4215-8P2S) PLANET 8 X 1G RJ45 POE 802.3AT + 2 X 1G SFP WGS-4215 L2 INDUSTRIAL 60C SWITCH

Removable 3-pin terminal block (V+, V-, Ground)

DC power jack with 2.0mm central pole

IEEE 802.3 10BASE-T

IEEE 802.3u 100BASE-TX/100BASE-FX

IEEE 802.3z Gigabit SX/LX

IEEE 802.3ab Gigabit 1000BASE-T

IEEE 802.3x Flow Control and Back Pressure

IEEE 802.3ad Port Trunk with LACP

IEEE 802.1D Spanning Tree Protocol

IEEE 802.1w Rapid Spanning Tree Protocol

IEEE 802.1s Multiple Spanning Tree Protocol

IEEE 802.1p Class of Service

IEEE 802.1Q VLAN Tagging

IEEE 802.1x Port Authentication Network Control

IEEE 802.1ab LLDP

IEEE 802.3af Power over Ethernet

IEEE 802.3at Power over Ethernet Plus

IEEE 802.3az Energy Efficient Ethernet (EEE)

RFC 768 UDP

RFC 783 TFTP

RFC 793 TCP

RFC 791 IP

RFC 792 ICMP

RFC 2068 HTTP

RFC 1112 IGMP v1

RFC 2236 IGMP v2

RFC 3376 IGMP v3

RFC 2710 MLD v1

RFC 3810 MLD v2

ITU G.8032 ERPS Ring

Port Mirroring (TX/RX/Both, Many-to-1)

802.1Q tagged-based VLAN, Q-in-Q, Voice VLAN, Private VLAN, GVRP

IEEE 802.3ad LACP and static trunk (5 groups)

STP, RSTP, MSTP

IPv4 IGMP (v2/v3) snooping / IPv6 MLD (v1/v2) snooping

QoS (8 priority queues, Strict priority/WRR)

Supports ERPS Ring (Recovery time < 450ms)

IPv4/IPv6 IP-based ACL/MAC-based ACL (Max. 256 entries)

IEEE 802.1X Port-based authentication

RADIUS/TACACS+ user access authentication

IP-MAC port binding, MAC filter, Static MAC address

DHCP Snooping and DHCP Option82

DoS attack prevention / ARP inspection / IP source guard

Web browser, Telnet, SNMP v1, v2c, v3, SSHv2, TLS v1.2

Firmware upgrade by HTTP/TFTP, LLDP, SNTP

PLANET Smart Discovery Utility / NMS System / CloudViewer Pro

Remote/Local Syslog
