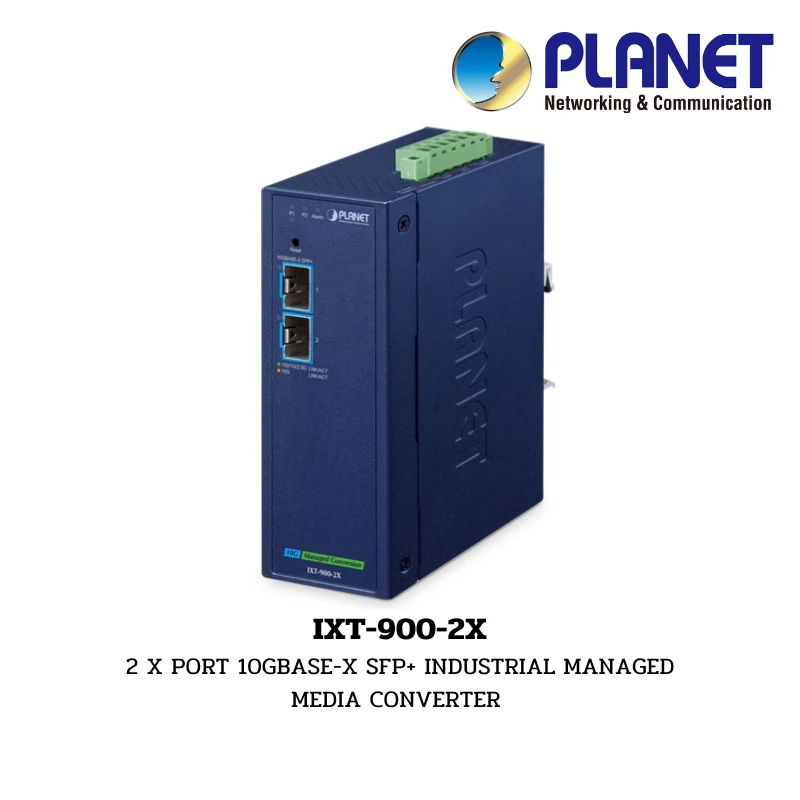

(IXT-900-2X) PLANET 2 X PORT 10GBASE-X SFP+ INDUSTRIAL MANAGED MEDIA CONVERTER
Planet IXT-900-2X เป็นอุปกรณ์แปลงสัญญาณสื่อ (Managed Media Converter) ระดับอุตสาหกรรมที่มาพร้อมพอร์ต 10G SFP+ จำนวน 2 พอร์ต ออกแบบมาเพื่อทำหน้าที่เป็นตัวทวนสัญญาณ (Repeater) หรือตัวแปลงระยะทางระหว่างโครงข่ายไฟเบอร์ออปติก (Fiber-to-Fiber) ด้วยแบนด์วิดท์มหาศาลระดับ 10Gbps จุดเด่นคือความสามารถในการบริหารจัดการระดับ Layer 2 และรองรับระบบเครือข่ายแบบวงแหวน (ERPS Ring) ภายใต้อุณหภูมิวิกฤต -40 ถึง 75 องศาเซลเซียส เพื่อความเสถียรสูงสุดของโครงข่ายหลัก
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |
| Fiber Interface | 2 x 10G/2.5G/1G/100BASE-X SFP+ interface |
| Management Interfaces | Web browser, Telnet, SNMP v1/v2c/v3, SSHv2, TLSv1.2 |
| Ring / Redundancy | ITU-T G.8032 ERPS Ring (Recovery time < 500ms) |
| Layer 2 Function | IEEE 802.1Q Tagged VLAN, Q-in-Q tunneling, LLDP, Bandwidth Control |
| QoS | 8-level priority, Strict priority / WRR, CoS/802.1p, DSCP |
| Switch Fabric | 40Gbps |
| Throughput (pps) | 29.76Mpps @ 64bytes |
| Address Table | 16K entries |
| Shared Buffer | 12Mbits |
| Jumbo Frame | 9Kbytes |
| Connector | Removable 6-pin terminal block (P1, P2, Fault Alarm) |
| Alarm Relay | One relay output for power failure (1A @ 24VDC) |
| Power Requirements | 9~48V DC or 24V AC (Redundant power support) |
| Power Consumption | Max. 5.6W / 19.1BTU (Full Loading) |
| Dimensions (W x D x H) | 50 x 87 x 135 mm |
| Weight | 576g |
| Enclosure / ESD | IP40 metal case / 4KV Contact, 8KV Air |
| Operating Temp | -40 ~ 75 degrees C |
| Standard Compliance | IEEE 802.3z/ae/x, 802.1p/Q/ad/ab, G.8032 ERPS |
| Stability Testing | IEC 60068-2-32 (Free fall), 2-27 (Shock), 2-6 (Vibration) |
