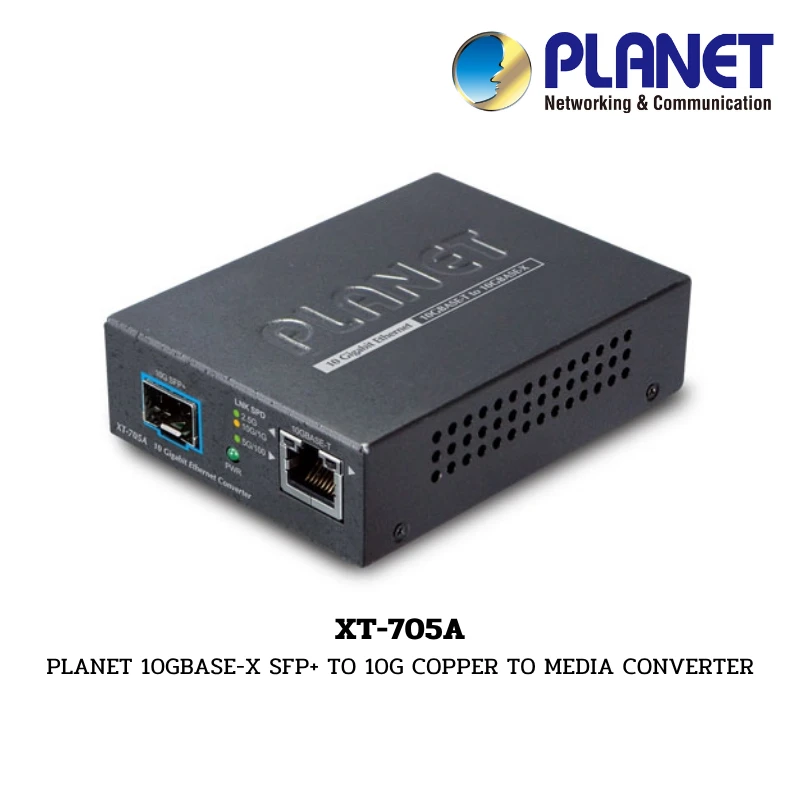

(XT-705A) PLANET 10GBASE-X SFP+ TO 10G COPPER TO MEDIA CONVERTER
Planet XT-705A เป็นอุปกรณ์แปลงสัญญาณสื่อ (Media Converter) ขนาดกะทัดรัดที่ออกแบบมาเพื่อการรับส่งข้อมูลความเร็วสูงระดับ 10Gbps โดยเฉพาะ ช่วยเชื่อมต่อระหว่างพอร์ตทองแดงแบบ Multi-Gigabit (100M/1G/2.5G/5G/10G) และพอร์ตไฟเบอร์ออปติก 10G SFP+ อุปกรณ์รุ่นนี้เหมาะสำหรับใช้งานในสำนักงานหรือศูนย์ข้อมูล (Data Center) เพื่อขยายระยะทางเครือข่ายผ่านสายไฟเบอร์ออปติกได้ไกลสูงสุดถึง 60 กิโลเมตร โดยยังคงประสิทธิภาพการทำงานที่รวดเร็วและติดตั้งได้ง่ายแบบ Plug-and-Play
ข้อมูลจำเพาะ (Specification)
| รายการ (Feature) | รายละเอียด (Description) |

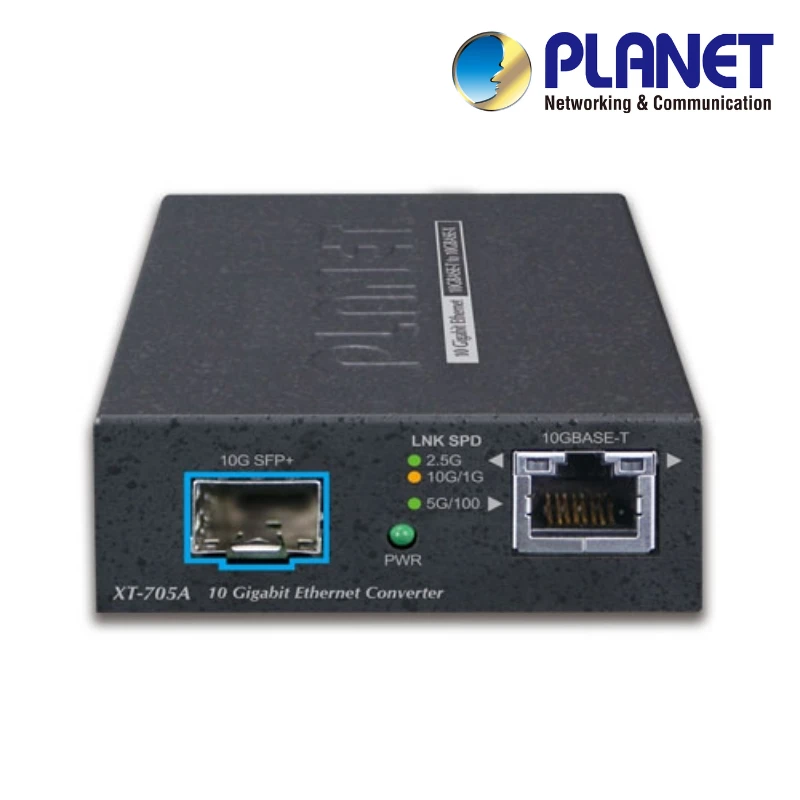

| Copper Interface | 1 x 10G/5G/2.5G/1G/100BASE-T RJ45 (Auto-MDI/MDI-X) |
| Fiber Optic Interface | 1 x 10GBASE-X SFP+ interface |
| Switch Fabric | 20Gbps |
| Throughput (pps) | 2.48Mpps @ 64bytes |
| Address Table | 9K entries (Automatic source address learning and aging) |
| Jumbo Frame | 16Kbytes |
| Flow Control | Back pressure (Half duplex) / IEEE 802.3x pause frame (Full duplex) |

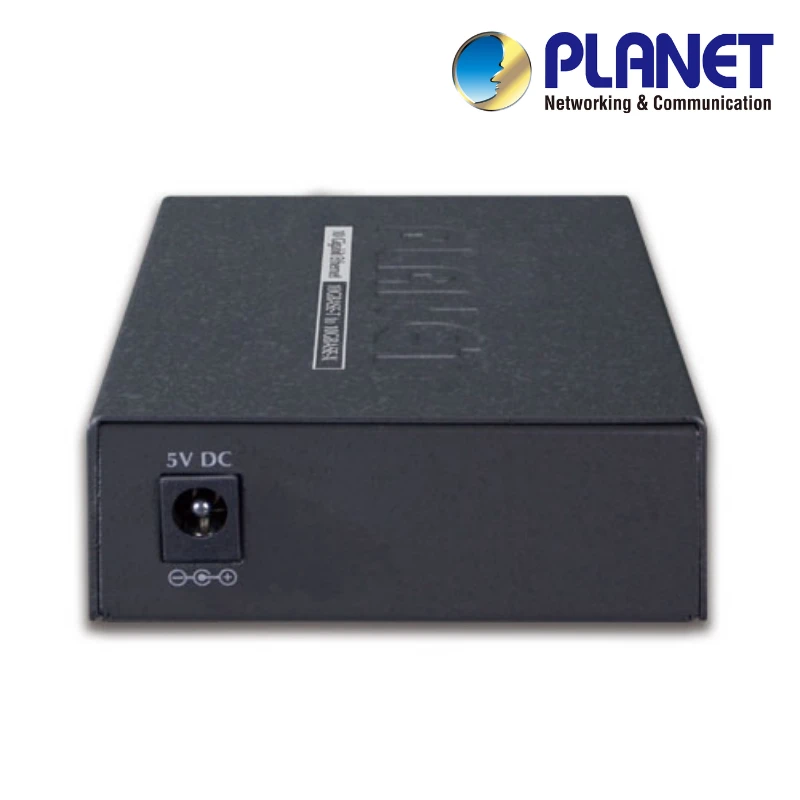

| Power Requirements | 5V DC, 2A max. |
| Power Consumption | Max. 3.75 watts / 12.8 BTU per hour |
| ESD Protection | 6KV DC |
| Dimensions (W x D x H) | 94 x 70 x 26 mm |
| Weight | 180g (Device only) |
| Enclosure | Compact-sized metal case |
| Installation | Desktop, Wall mountable, Chassis installation, Optional DIN-rail |
| Operating Temp | 0 ~ 50 degrees C |
| Standard Compliance | IEEE 802.3u, 802.3ab, 802.3bz, 802.3an, 802.3ae, 802.3x |
| Regulatory Compliance | FCC Part 15 Class A, CE |
รายละเอียดสายสัญญาณ (Network Cables)
| Interface Type | Cable Requirement |
| 10G Copper | Cat 6A / Cat 7 (up to 100 meters) |
| 5G Copper | Cat 6 / Cat 6A / Cat 7 (up to 100 meters) |
| 1G / 2.5G Copper | Cat 5e / Cat 6 / Cat 6A / Cat 7 (up to 100 meters) |
| 100M Copper | Cat 5 / Cat 5e / Cat 6 / Cat 6A / Cat 7 (up to 100 meters) |
| 10G Fiber (Multi-mode) | 50/125μm or 62.5/125μm fiber (up to 300 meters) |
| 10G Fiber (Single-mode) | 9/125μm fiber (up to 60 kilometers) |
