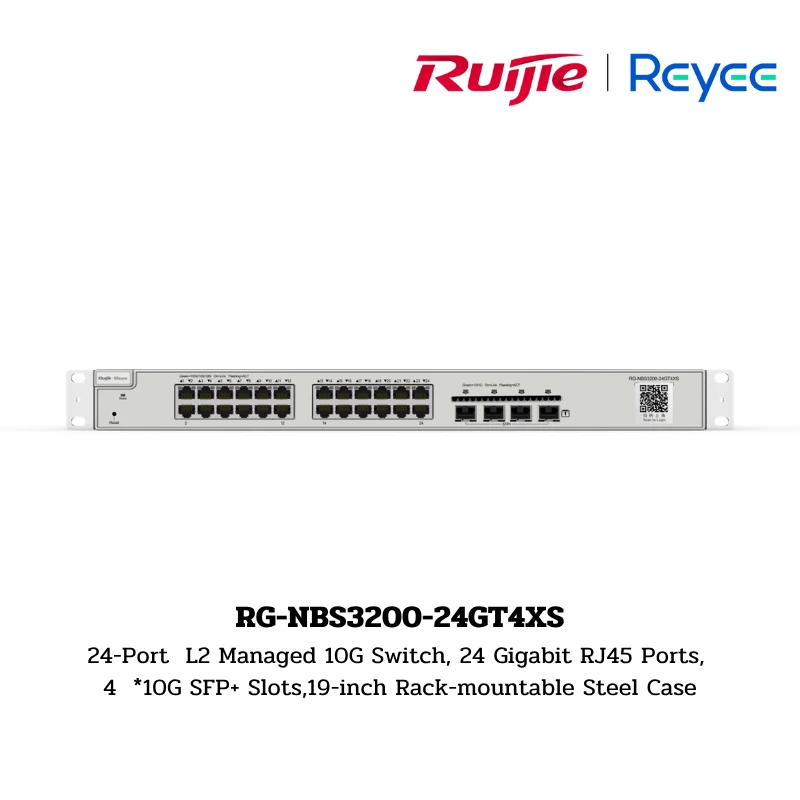

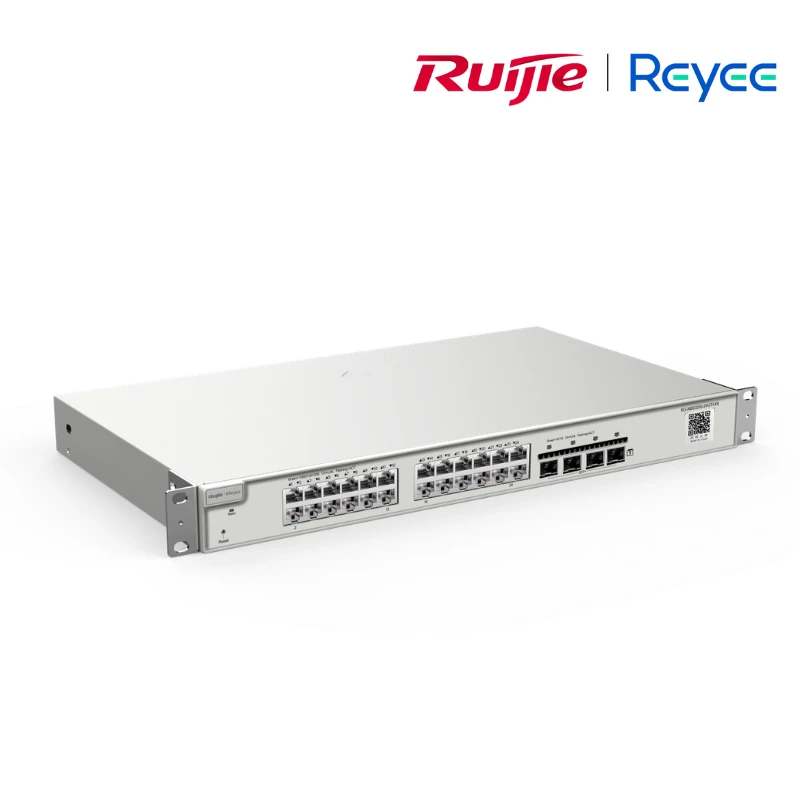

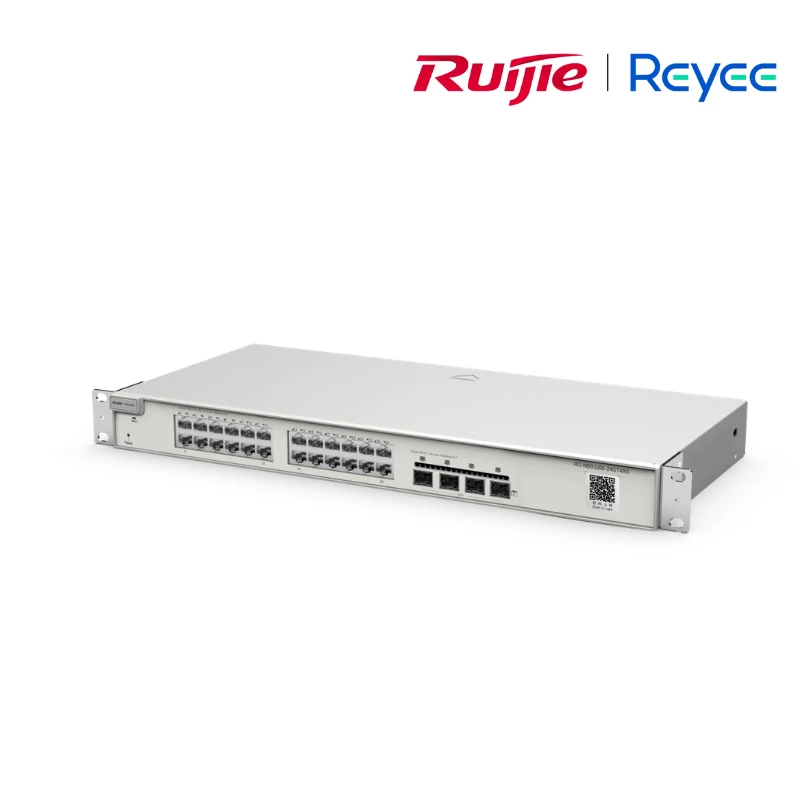

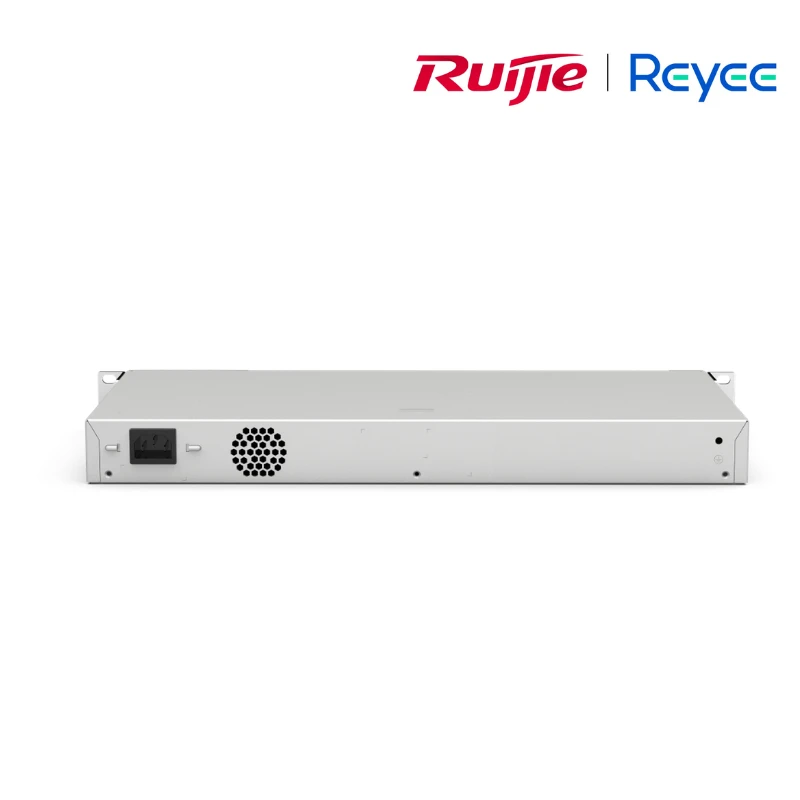

(RG-NBS3200-24GT4XS) Ruijie Reyee 24-Port L2 Managed 10G Switch, 24 Gigabit RJ45 Ports, 4 *10G SFP+ Slots,19-inch Rack-mountable Steel Case
สวิตช์เครือข่ายแบบ Managed ระดับ Layer 2+ ขนาด 24 พอร์ต Gigabit พร้อมช่อง 10G SFP+ จำนวน 4 พอร์ต เหมาะสำหรับองค์กรที่ต้องการความเร็วสูงในการเชื่อมต่อ Backbone หรือ Uplink รองรับการติดตั้งในตู้ Rack ขนาด 19 นิ้ว พร้อมฟีเจอร์ด้านการจัดการเครือข่ายและความปลอดภัย เช่น Port Isolation และ Broadcast Storm Control เหมาะสำหรับระบบที่ต้องการประสิทธิภาพและความเสถียรสูง
ข้อมูลจำเพาะ (Specification)
| รายการ | รายละเอียด (Description) |
|---|---|
| Product Category | Layer 2+ |
| Warranty | 5 Years |
| Total Number of RJ45 Ports | 24 |
| Total Number of Optical Ports | 4 |
| Number of 1GE Combo Ports | No |
| Number of 1GE SFP Ports | No |
| Number of 10GE SFP+ Ports | 4 |
| Number of 10/100BASE-T Ports | No |
| Number of 10/100/1000BASE-T Ports | 24 |
| Number of 10/100/1000/2500BASE-T Ports | No |
| Number of 100/1000/2.5G/5G/10GBASE-T Ports | No |
| Forwarding Rate | 95.23 Mpps |
| Switching Capacity | 128 Gbps |
| MTBF | 400,000 hours |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Altitude | Operating: –500 m to +5,000 m; Storage: –500 m to +5,000 m |
| Surge Protection | Service port: ±6 kV (common mode); Power connector: ±6 kV (common & differential mode) |
| PoE Watchdog | No |
| Jumbo Frame (MTU) | 9216 bytes (interface configuration mode) |
| Port Isolation | Yes |
| Broadcast Storm Control | Yes |
