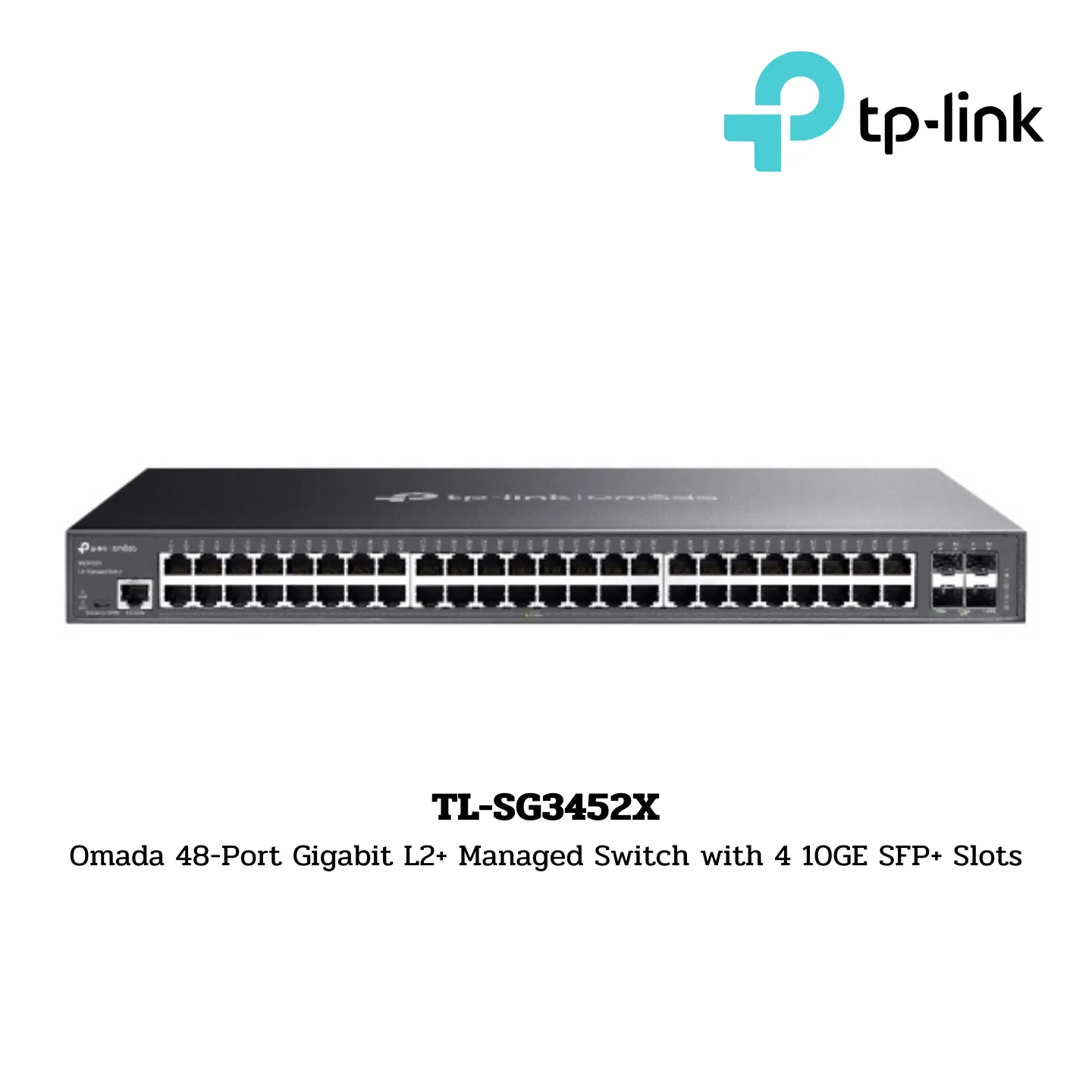

TP-Link L2+ Managed Switch รุ่น TL-SG3452X

TL-SG3452X
Omada 48-Port Gigabit L2+ Managed Switch with 4 10GE SFP+ Slots

Specifications:

• Ports:
  • 48× Gigabit RJ45 Ports
  • 4× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Specification:
  • 1U 19-inch Rack-mountable Steel Case
• Feature:
  • Integration with Omada SDN Controller, Static Routing, OAM, sFlow, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6

Hardware Features:

• Interface:
  • 48× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
  • 4× 10G SFP+ Slots
  • 1× RJ45 Console Port
  • 1× Micro-USB Console Port
• Fan Quantity:
  • Fanless
• Physical Security Lock:
  • Yes
• Power Supply:
  • 100-240 V AC~50/60 Hz
• Dimensions (W x D x H):
  • 17.3×8.7×1.7 in (440×220×44 mm)
• Mounting:
  • Rack Mountable
• Max Power Consumption:
  • 32.72 W (110V/60Hz)
• Max Heat Dissipation:
  • 111.65 BTU/h (110 V/60 Hz)

Performance:

• Switching Capacity:
  • 176 Gbps
• Packet Forwarding Rate:
  • 130.94 Mpps
• MAC Address Table:
  • 16 K
• Packet Buffer Memory:
  • 12 Mbit
• Jumbo Frame:
  • 9 KB

Software Features:

• Quality of Service:
  • 8 priority queues
  • 802.1p CoS/DSCP priority
  • Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
  • Bandwidth Control: Port/Flow-based Rating Limiting
  • Smoother Performance
  • Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
• L2 and L2+ Features:
  • 128 IP Interfaces: Support IPv4/IPv6 Interface
  • Static Routing: 48 IPv4/IPv6 Static Routes
  • Static ARP: 128 static entries, 512 ARP Entries
  • Proxy ARP
  • Gratuitous ARP
  • DHCP Server
  • DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay, DHCP L2 Relay
  • Link Aggregation
  • Spanning Tree Protocol
  • Loopback Detection
  • 802.3x Flow Control
  • Mirroring

L2 Multicast:

• Supports 1000 (IPv4, IPv6) IGMP groups
• IGMP Snooping
• IGMP Authentication
• Multicast VLAN Registration (MVR)
• MLD Snooping
• Multicast Filtering: 256 profiles and 16 entries per profile

Advanced Features:

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule

ISP Features:

• L2PT (Layer 2 Protocol Tunneling)
• Device Link Detect Protocol (DLDP)
• PPPoE ID Insertion
• ERPS
• 802.3ah Ethernet Link OAM
• DDM
• sFlow

VLAN:

• VLAN Group: Max 4K VLAN Groups
• 802.1q Tagged VLAN
• MAC VLAN: 30 Entries
• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
• Private VLAN
• GVRP
• VLAN VPN: VLAN Mapping, VLAN Replace
• Voice VLAN

Access Control List:

• Time-based ACL
• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
• Combined ACL
• Packet Content ACL
• IPv6 ACL
• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
• ACL applies to Port/VLAN

Security:

• IP-MAC-Port Binding: 512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries
• IPv6-MAC-Port Binding: 512 Entries, DHCPv6 Snooping, ND Detection, ND Snooping, IPv6 Source Guard: 100 Entries
• DoS Defend
• DHCP Filter
• Static/Dynamic Port Security: Up to 64 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control: kbps/ratio/pps control mode
• 802.1X: Port-based authentication, Mac-base authentication, VLAN Assignment, MAB, Guest VLAN, Radius authentication and accountability support
• AAA (including TACACS+)
• Port Isolation
• Secure web management through HTTPS with SSLv3/TLS 1.2
• Secure Command Line Interface (CLI) management with SSHv1/SSHv2
• IP/Port/MAC-based access control

IPv6:

• IPv6 Dual IPv4/IPv6
• Multicast Listener Discovery (MLD) Snooping
• IPv6 ACL
• IPv6 Interface
• Static IPv6 Routing
• IPv6 neighbor discovery (ND)
• Path maximum transmission unit (MTU) discovery
• Internet Control Message Protocol (ICMP) version 6
• TCPv6/UDPv6
• IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP

MIBs:

• MIB II (RFC1213)
• Interface MIB (RFC2233)
• Ethernet Interface MIB (RFC1643)
• Bridge MIB (RFC1493)
• P/Q-Bridge MIB (RFC2674)
• RMON MIB (RFC2819)
• RMON2 MIB (RFC2021)
• Radius Accounting Client MIB (RFC2620)
• Radius Authentication Client MIB (RFC2618)
• Remote Ping, Traceroute MIB (RFC2925)
• Support TP-Link private MIB

Management:

• Omada App: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Centralized Management:
  • Omada Cloud-Based Controller
  • Omada Hardware Controller
  • Omada Software Controller
• Cloud Access: Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
• Zero-Touch Provisioning: Yes. Requiring the use of Omada Cloud-Based Controller.

Management Features:

• Web-based GUI
• Command Line Interface (CLI) through the console port, telnet
• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
• SDM Template
• DHCP/BOOTP Client
• 802.1ab LLDP/LLDP-MED
• DHCP AutoInstall
• Dual Image, Dual Configuration
• CPU Monitoring
• Cable Diagnostics
• EEE
• Password Recovery
• SNTP
• System Log

Others:

• Certification: CE, FCC, RoHS
• Package Contents:
  • SG3452X Switch
  • Power Cord
  • Quick Installation Guide
  • Rackmount Kit
  • Rubber Feet
• System Requirements: Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
• Environment:
  • Operating Temperature: 0–45 ℃ (32–113 ℉)
  • Storage Temperature: -40–70 ℃ (-40–158 ℉)
  • Operating Humidity: 10–90% RH non-condensing
  • Storage Humidity: 5–90% RH non-condensing
