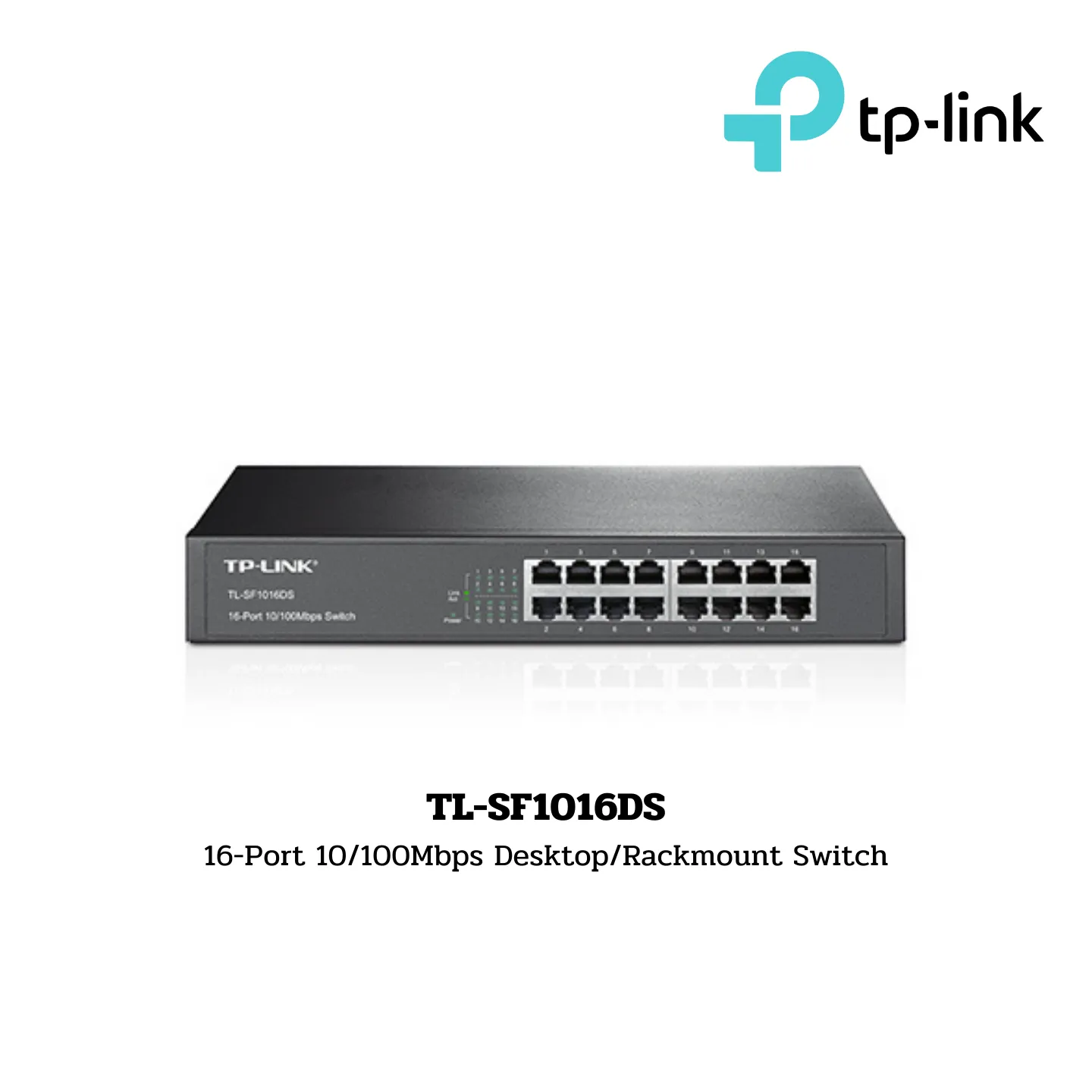

Switch TP-Link รุ่น TL-SF1016DS

TL-SF1016DS
16-Port 10/100Mbps Desktop/Rackmount Switch

• Ports:
  • 16× 10/100 Mbps RJ45 Ports
• Specification:
  • 1U 13-inch Rack-mountable Steel Case
• Feature:
  • Plug and Play

Hardware Features:

• Standards and Protocols:
  • IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
• Interface:
  • 16× 10/100Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
• Network Media:
  • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
  • 100BASE-TX: UTP category 5, 5e or above cable (maximum 100m)
• Fan Quantity:
  • Fanless
• Physical Security Lock:
  • Yes
• Power Supply:
  • 100-240VAC, 50/60Hz
• Power Consumption:
  • Maximum: 2.23W (220V/50Hz)
• Dimensions (W x D x H):
  • 11.6×7.1×1.7 in. (294×180×44 mm)
• Mounting:
  • Rack Mountable

Max Power Consumption:

• 2.06W (220V/50Hz)

Max Heat Dissipation:

• 7.03 BTU/h

Performance:

• Switching Capacity:
  • 3.2Gbps
• Packet Forwarding Rate:
  • 2.38Mpps
• MAC Address Table:
  • 8K
• Buffer Memory:
  • 2Mb

Advanced Functions:

• Green Technology
• 802.3X Flow Control
• Green Technology:
  • Innovative energy-efficient technology saves power up to 75%
• Transfer Method:
  • Store-and-Forward

Others:

• Certification:
  • FCC, CE, RoHS
• Package Contents:
  • TL-SF1016DS 16-Port 10/100Mbps Desktop/Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Rubber Feet

Environment:

• Operating Temperature: 0℃~40℃ (32℉~104℉)
• Storage Temperature: -40℃~70℃ (-40℉~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
