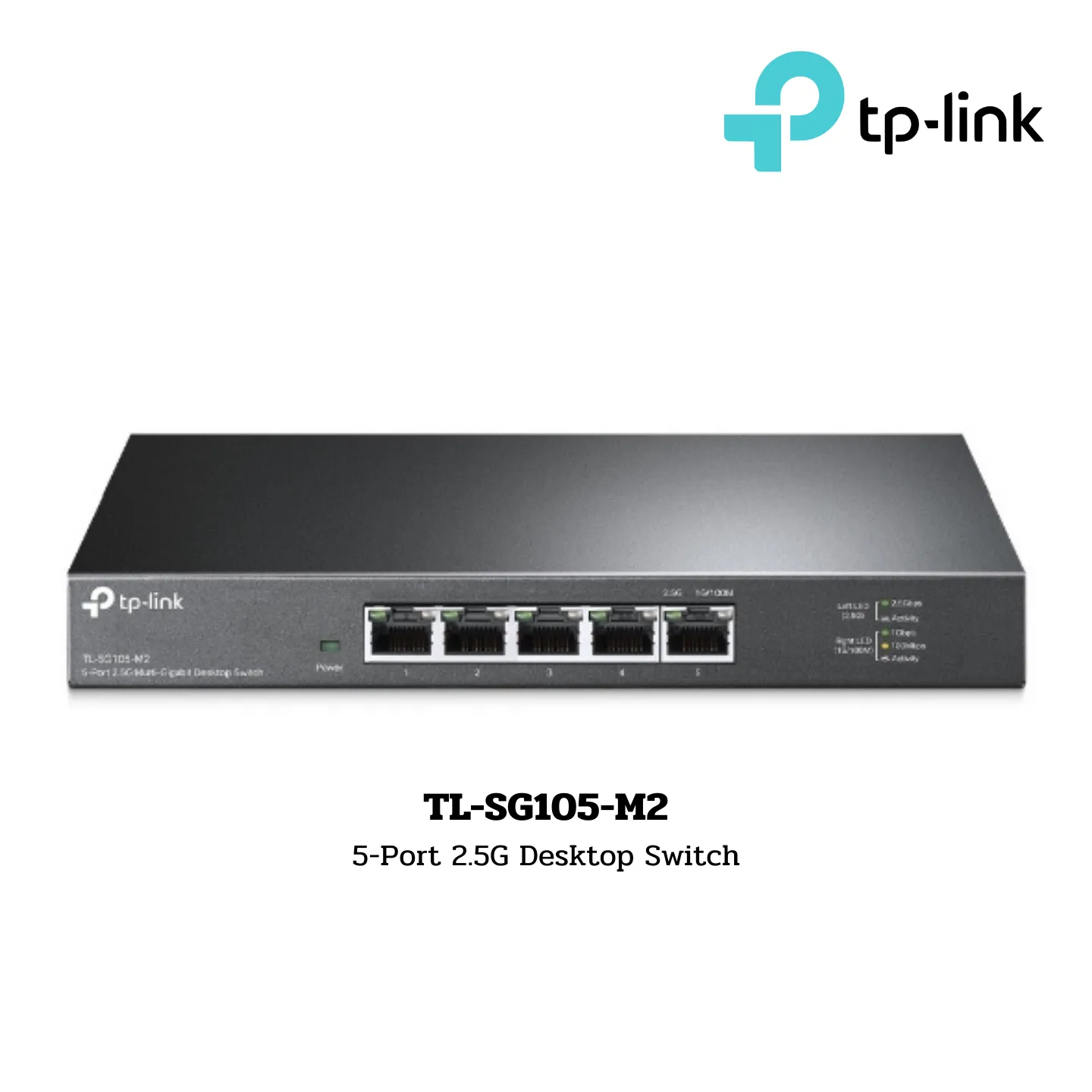

Switch TP-Link รุ่น TL-SG105-M2 5-Port 2.5G Desktop Switch

TL-SG105-M2
5-Port 2.5G Desktop Switch

• Ports:
  • 5× 2.5G RJ45 Ports
• Specification:
  • Desktop Steel Case
• Feature:
  • Plug and Play

Hardware Features:

• Standards and Protocols:
  • IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, 802.3bz
• Interface:
  • 5× 100Mbps/1Gbps/2.5Gbps Ports, Auto-Negotiation, Auto-MDI/MDIX
• Fan Quantity:
  • Fanless
• External Power Supply:
  • External Power Adapter (Output: 12 VDC / 1 A)
• LED Indicator:
  • System Power: 1
  • Link/Act Indicators: 5, 1 indicator per port built into each RJ-45 port
• Dimensions (W x D x H):
  • 8.2×4.9×1.0 in (209×126×26 mm)

Max Power Consumption:

• 12.11 W

Max Heat Dissipation:

• 41.32 BTU/h

Performance:

• Switching Capacity:
  • 25 Gbps
• Packet Forwarding Rate:
  • 18.6 Mpps
• MAC Address Table:
  • 16 K
• Packet Buffer Memory:
  • 1.5 Mb
• Jumbo Frame:
  • 10 KB

Software Features:

• Advanced Features:
  • 802.3X Flow Control
  • 802.1p/DSCP QoS
• Transfer Method:
  • Store and Forward

Others:

• Certification:
  • CE, FCC, RoHS
• Package Contents:
  • TL-SG105-M2 5-Port 2.5G Multi-Gigabit Desktop Switch
  • Power Adapter
  • Installation Guide
  • Rubber Feet

Environment:

• Operating Temperature: 0–40 °C (32–104 °F)
• Storage Temperature: -40–70 °C (-40–158 °F)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
