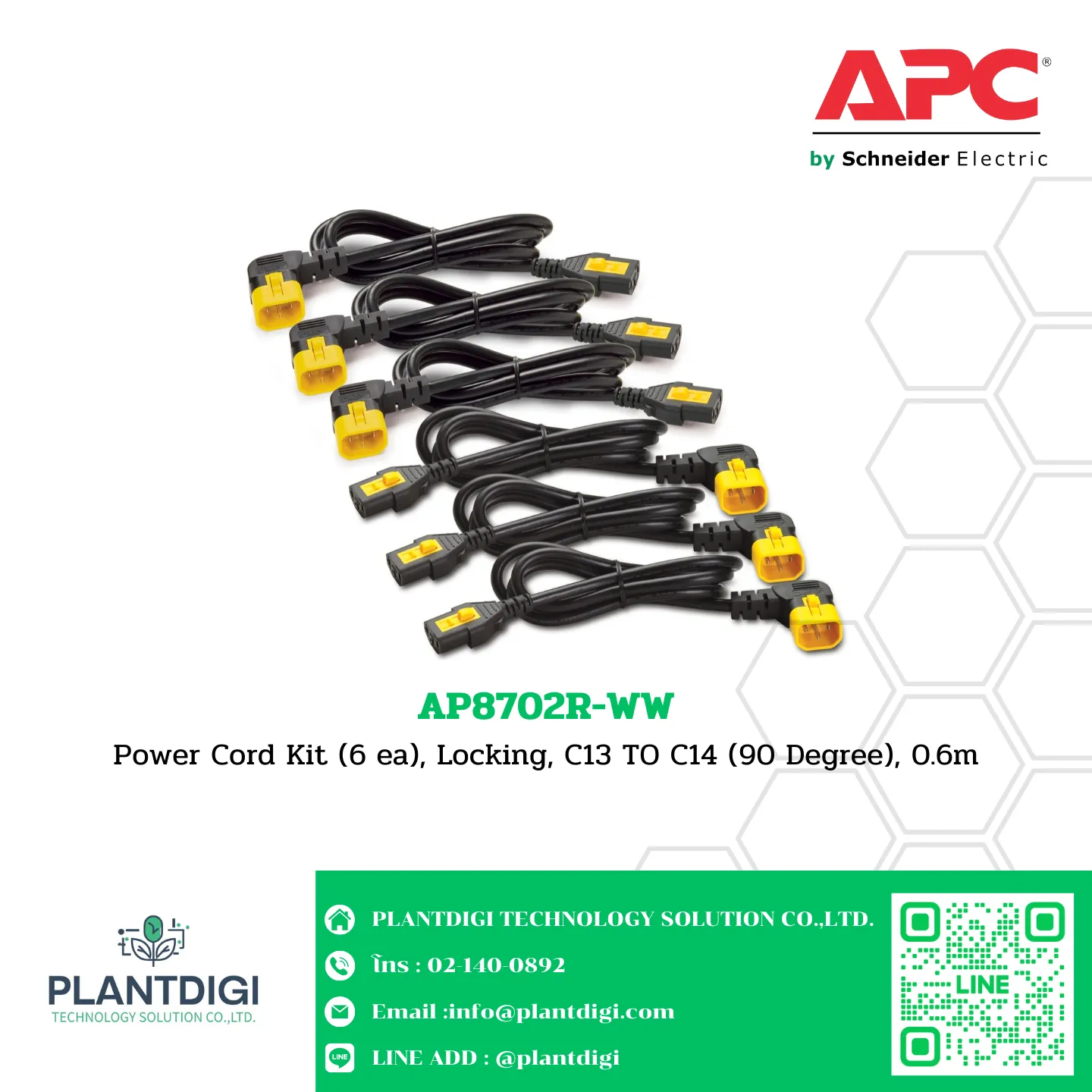

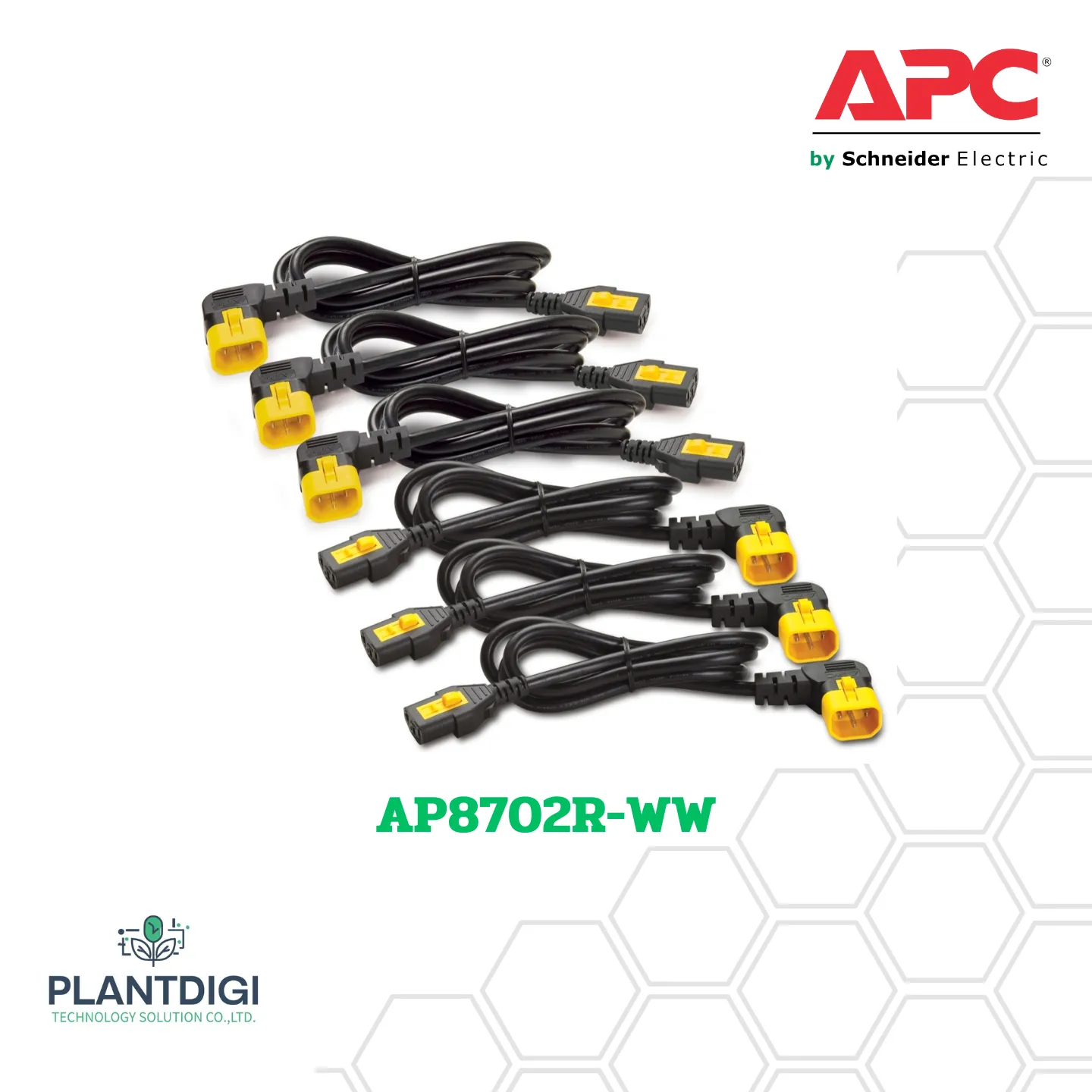

APC Power Cords รุ่น AP8702R-WW

———

Overview

———

Presentation: Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the “locking” feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.

Specifications

—–

Main

—–

Product or component type: Power cord

Input Connection Type: IEC 60320 C14

Cable length: 0.6 m

Number of cables: 6

Provided equipment: 3 left-angle jumper cords, 3 right-angle jumper cords

———

Physical

———

Colour: Black

Height: 24 cm

Width: 7 cm

Depth: 4 cm

Net weight: 0.7 kg

Mounting preference: No preference

mounting mode: Not rack-mountable

——

Input

——

Max line current: 10 A

Input current limits: 10 A

——-

Output

——-

Max current draw: 10 A

Number of power socket outlets: 1 IEC 60320 C13

Power cable length: 0.6 m

————

Conformance

————

product certifications: CCC, PSE, VDE

————–

Environmental

————–

Ambient air temperature for operation: 0…70 °C

Relative humidity: 20…80 %

Operating altitude: 0…10000 ft

Ambient air temperature for storage: -25…75 °C

Storage Relative Humidity: 20…80 %

Storage altitude: 0.0000000000…15240.0000000000 m

—————

Packing Units

—————

Unit Type of Package 1: PCE

Number of Units in Package 1: 1

Package 1 Height: 24 cm

Package 1 Width: 4 cm

Package 1 Length: 7 cm

Package 1 Weight: 0.7 kg

———————

Contractual warranty

———————

Warranty: 2 years repair or replace
