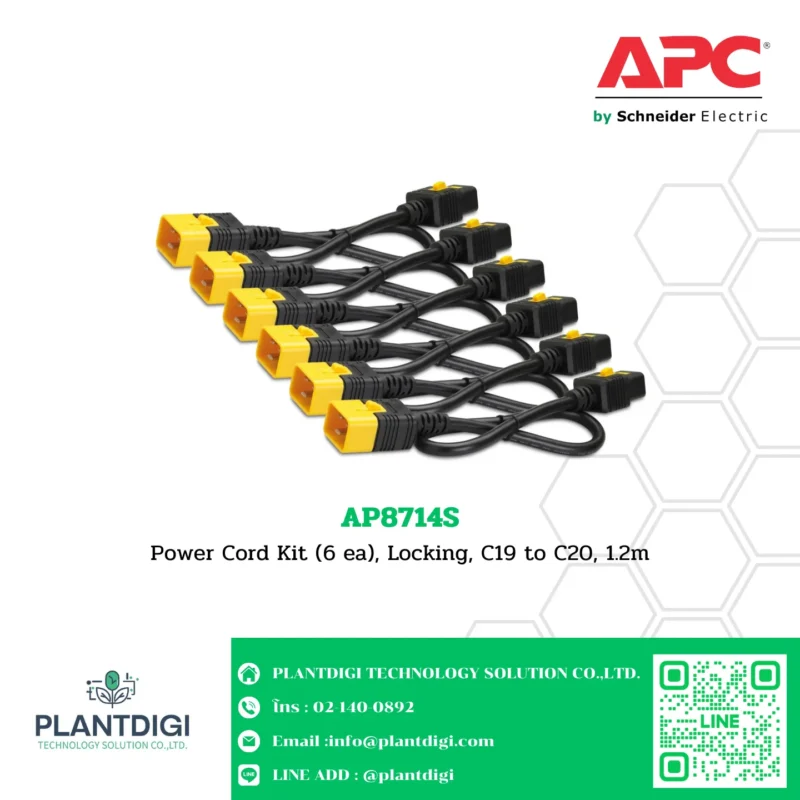

AP8714S
Power Cord Kit (6 ea), Locking, C19 to C20, 1.2m
———
Overview
———
Presentation: Free up space and secure power cords between rack-mount PDUs and attached IT equipment with this exclusive easy-to-use cord retention method. While these cords will fit into any standard IEC receptacle or power inlet; the “locking” feature is enabled only when used with APC AP8000 series Rack PDUs or IT equipment with built-in locking receptacles. These locking connectors reduce the probability of accidentally disconnecting cords and dropping loads.
Lead time: Usually in Stock
—–
Main
—–
Product or component type: Power cord
Input Connection Type: IEC 60320 C20
Cable length: 1.2 m
Number of cables: 6
———
Physical
———
Colour: Black
Height: 30 cm
Width: 7 cm
Depth: 7 cm
Net weight: 1.64 kg
Mounting preference: No preference
mounting mode: Not rack-mountable
——
Input
——
Max line current: 16 A
Input current limits: 16 A
——-
Output
——-
Max current draw: 16 A
Number of power socket outlets: 1 IEC 60320 C19
Power cable length: 1.2 m
————
Conformance
————
product certifications: CCC, CSA, PSE, UL listed, VDE
————–
Environmental
————–
Ambient air temperature for operation: 0…75 °C
Relative humidity: 20…80 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…75 °C
Storage Relative Humidity: 20…80 %
Storage altitude: 0.0000000000…15240.0000000000 m
—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 30 cm
Package 1 Width: 7 cm
Package 1 Length: 7 cm
Package 1 Weight: 1.64 kg
SCC14: 10731304279706
———————
Contractual warranty
———————
Warranty: 2 years repair or replace
