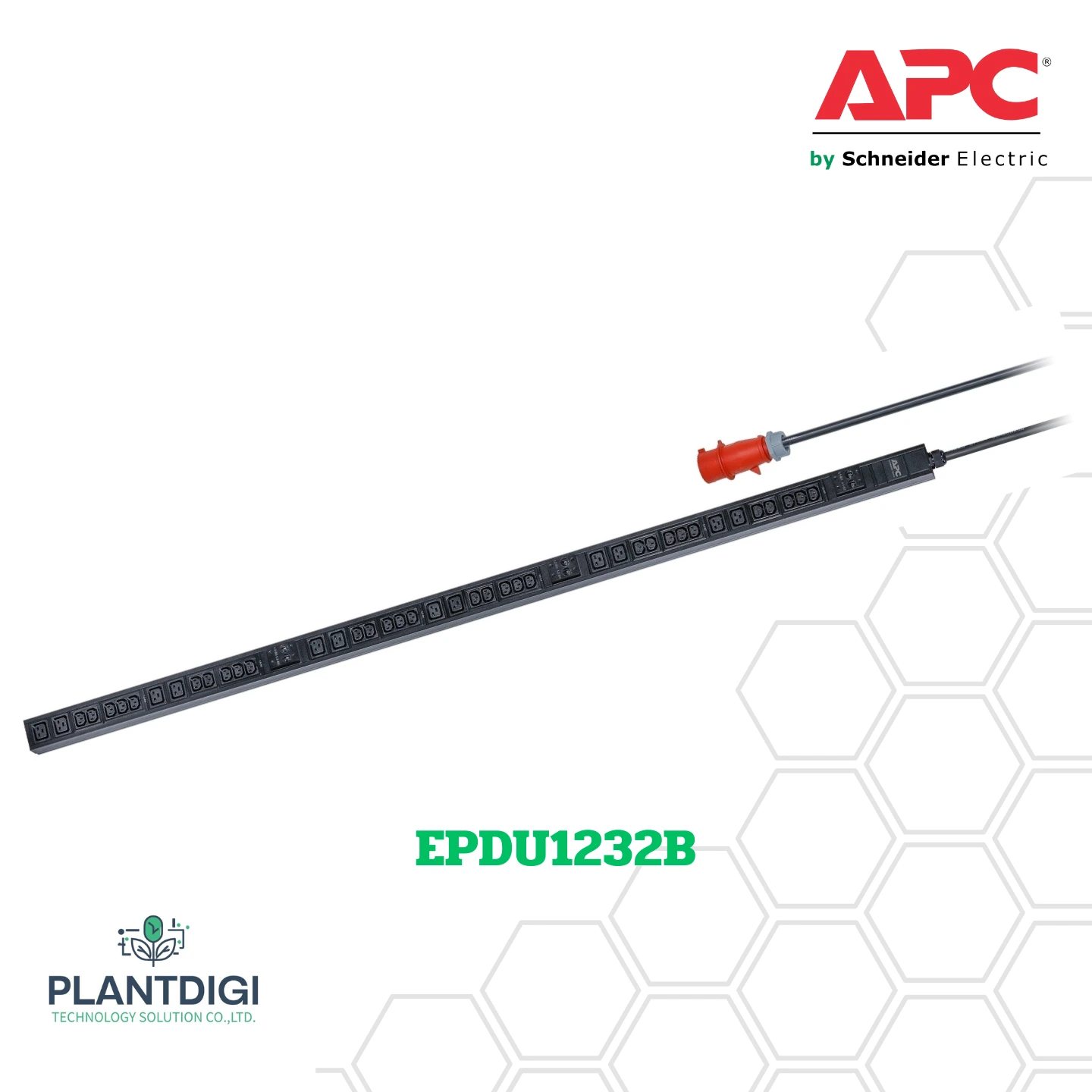

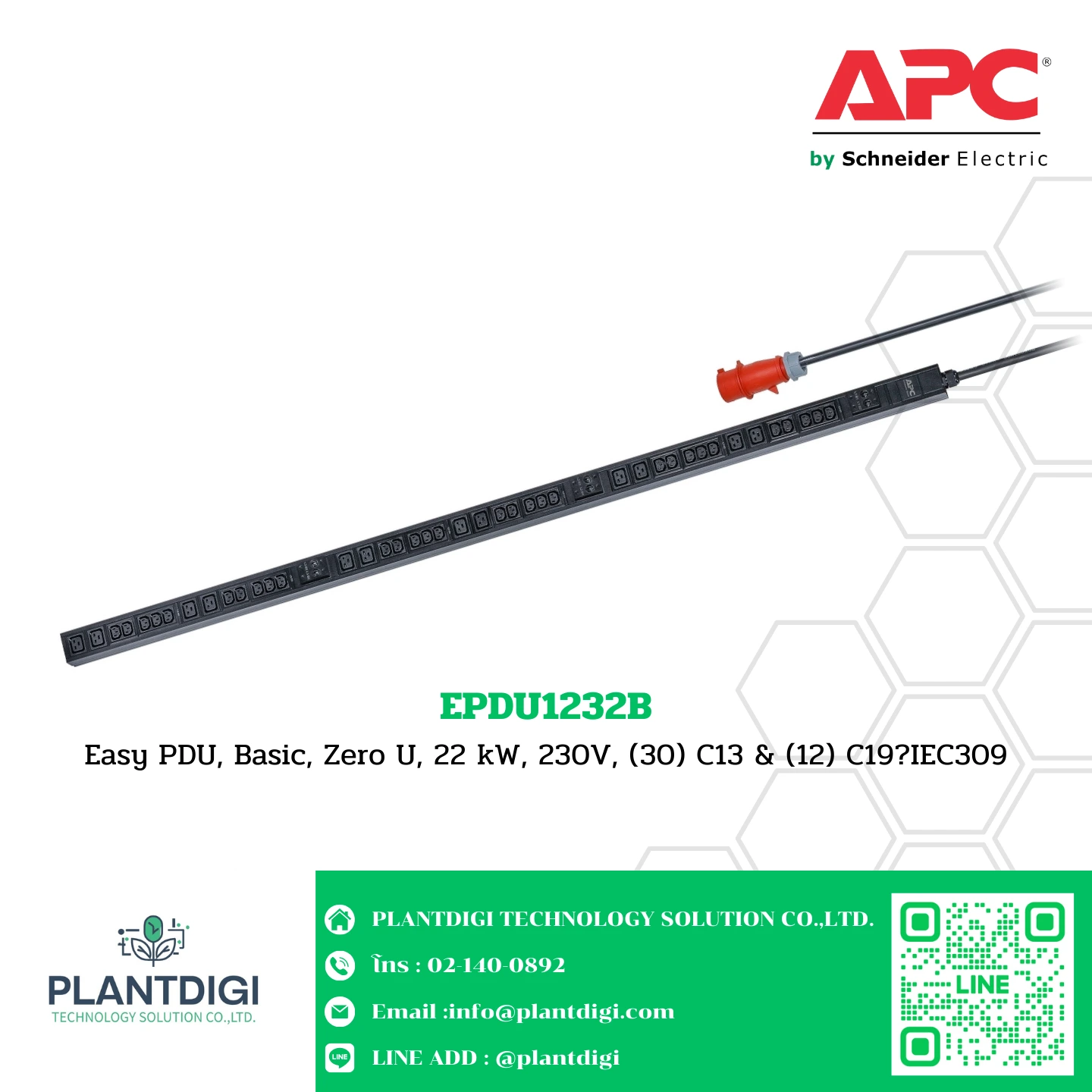

EPDU1232B
Easy PDU, Basic, Zero U, 22 kW, 230V, (30) C13 & (12) C19IEC309
– Reliable and affordable Rack Power Distribution
– Single input power source and multiple output receptacles
– Zero U Rack Mounting Abilities
– Resettable circuit breakers
– Wide range of input and output connections
Specifications
—–
Main
—–
Name: EPDU1232B
Colour: Black
Product or component type: PDU
PDU type: Basic
Cord length: 2.00 m
Number of cables: 1
Provided equipment: Installation guide, Toolless mounting kit, Vertical mounting brackets
————–
Complementary
————–
Input Voltage: 400 V 3 phases
Height: 179.4 cm
Width: 6.2 cm
Output Voltage: 230 V
Depth: 4.44 cm
Net weight: 5.14 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 32 A 3P + N + PE
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Input current limits: 32 A
Load capacity: 22000 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 30 IEC 60320 C13, 12 IEC 60320 C19
————
Environment
————
product certifications: CE, TÜV, EAC, RCM
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
————–
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 195 cm
Package 1 Width: 11 cm
Package 1 Length: 16 cm
Package 1 Weight: 6.2 kg
———————
Contractual warranty
———————
Warranty: 1 year repair or replace
