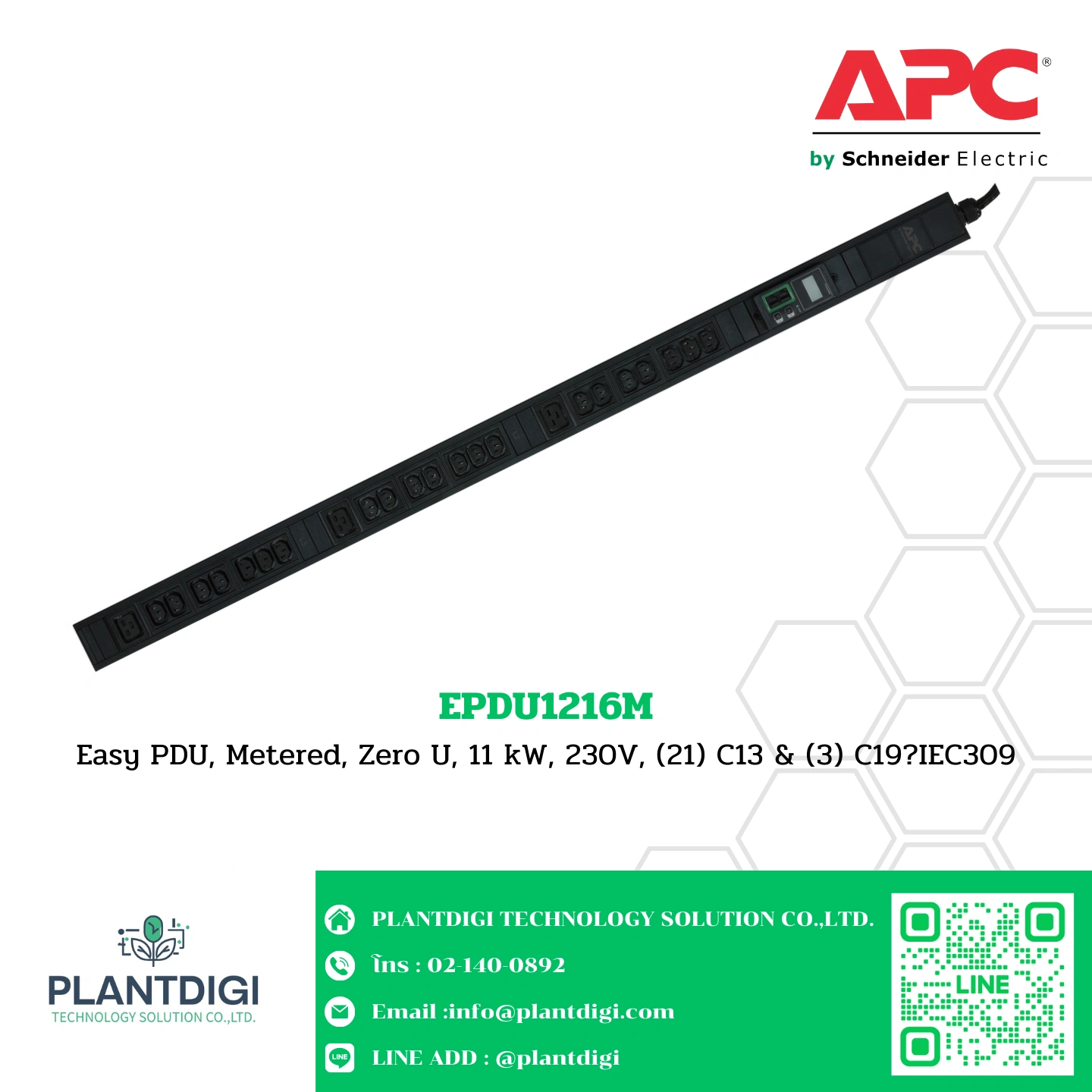

APC Easy Metered Rack PDU รุ่น EPDU1216M

EPDU1216M
Easy PDU, Metered, Zero U, 11 kW, 230V, (21) C13 & (3) C19IEC309

Specifications

—–
Main
—–
Name: EPDU1216M
Colour: Black
Product or component type: PDU
PDU type: Metered
Cord length: 2.0 m
Number of cables: 1
Provided equipment: Installation guide, Toolless mounting kit, Vertical mounting brackets

————–
Complementary
————–
Input Voltage: 400 V 3 phases
Height: 117.5 cm
Width: 6.2 cm
Output Voltage: 230 V
Depth: 4.44 cm
Net weight: 2.74 kg
mounting location: Side
Mounting preference: No preference
Input Plug Type: IEC 60309 16 A 3P + N + PE
mounting mode: Rack-mounted
Rack units: 0U
mounting position: Vertical
Input current limits: 16 A
Load capacity: 11000 VA
Network frequency: 50/60 Hz
Outlet type and quantity: 21 IEC 60320 C13, 3 IEC 60320 C19

————
Environment
————
product certifications: CE, EAC, RCM, TÜV
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0.0000000000…4572.0000000000 m

————-
Packing Units
————–
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 132 cm
Package 1 Width: 11 cm
Package 1 Length: 16 cm
Package 1 Weight: 3.26 kg

———————
Contractual warranty
———————
Warranty: 2 year repair or replace
