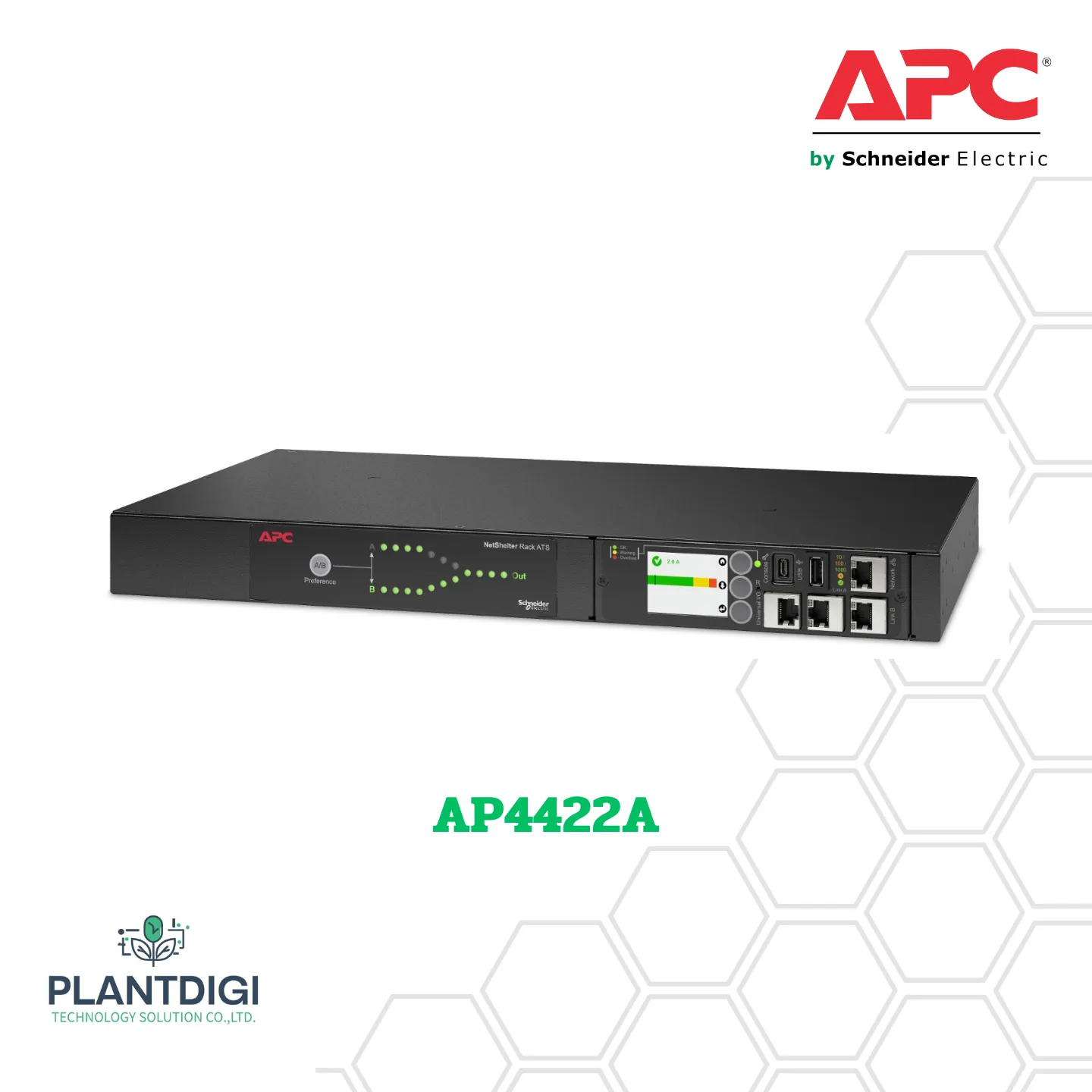

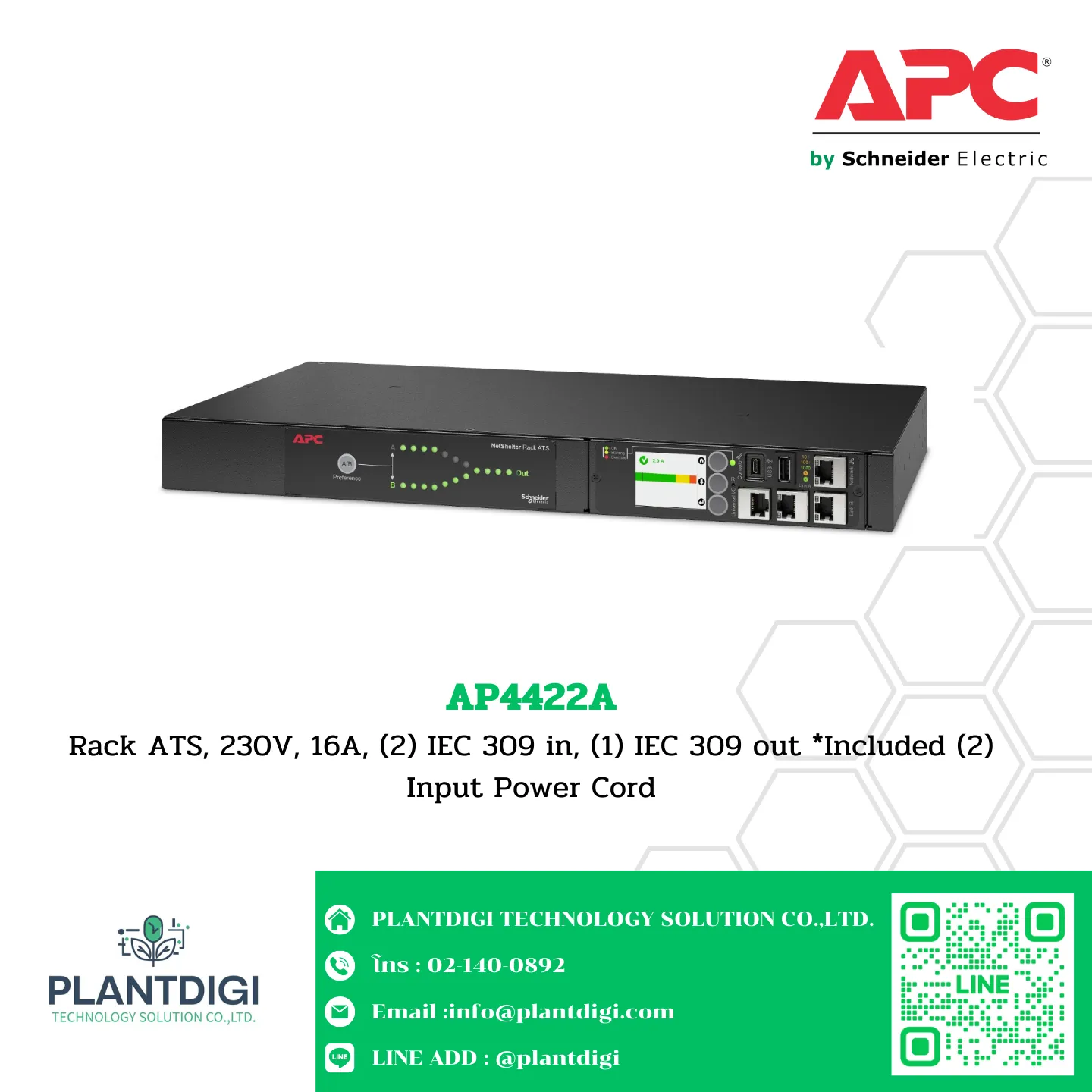

AP4422A
Rack ATS, 230V, 16A, (2) IEC 309 in, (1) IEC 309 out *Included (2) Input Power Cord
– Seamless switching with transfer time 10ms
– Minimized downtime disruption with Field-replaceable NMC
– Monitor temperature and humidity efficiently
– Dual input power cords to enhance uptime for critcal loads
– Connect and manage up to 32 Rack ATSs from one IP address
Specifications
—–
Main
—–
Main Input Voltage: 230 V AC 1 phase
Product or component type: Automatic transfer switch
Main Output Voltage: 230 V AC 1 phase
Input Connection Type: IEC 60309 16 A 2P + E
number of rack unit: 1U
Cable length: 2.4 m
Number of cables: 2
Provided equipment: Mounting hardware, Rack mounting brackets
———
Physical
———
Colour: Black
Height: 4.4 cm
Width: 43.2 cm
Depth: 23.6 cm
Net weight: 4.21 kg
mounting location: Front
Mounting preference: No preference
mounting mode: Rack-mounted
mounting position: Horizontal
——
Input
——
Network frequency: 50/60 Hz
[In] rated current: 16 A
Permissible voltage: 207…253 V
Max line current: 16 A
Input current limits: 16 A
Load capacity: 3840 VA
——-
Output
——-
Number of power socket outlets: 1 IEC 60309 16 A 2P + E
Number of power socket outlets: 1
Protection type: Without circuit breaker
Power cable length: 0.91 m
————-
Conformance
————-
product certifications: CE, EMC directive 2004/108/EC, LVD directive 2006/95/EC
Standards: EN/IEC 60950-1, UL 60950-1
————–
Environmental
————–
Ambient air temperature for operation: -5…45 °C
Relative humidity: 5…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -25…65 °C
Storage Relative Humidity: 5…95 %
Storage altitude: 0…15240 m
—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 11.4 cm
Package 1 Width: 34.9 cm
Package 1 Length: 60 cm
Package 1 Weight: 5.95 kg
Unit Type of Package 2: PAM
Number of Units in Package 2: 40
Package 2 Height: 135 cm
Package 2 Width: 100 cm
Package 2 Length: 120 cm
Package 2 Weight: 250.52 kg
———————
Contractual warranty
———————
Warranty: 2 years repair or replace
