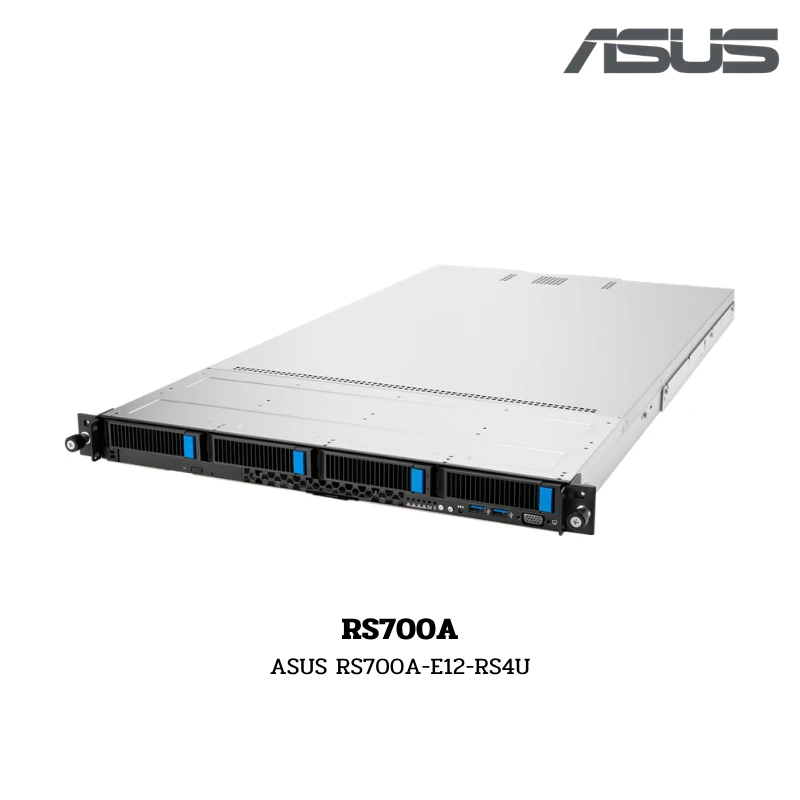

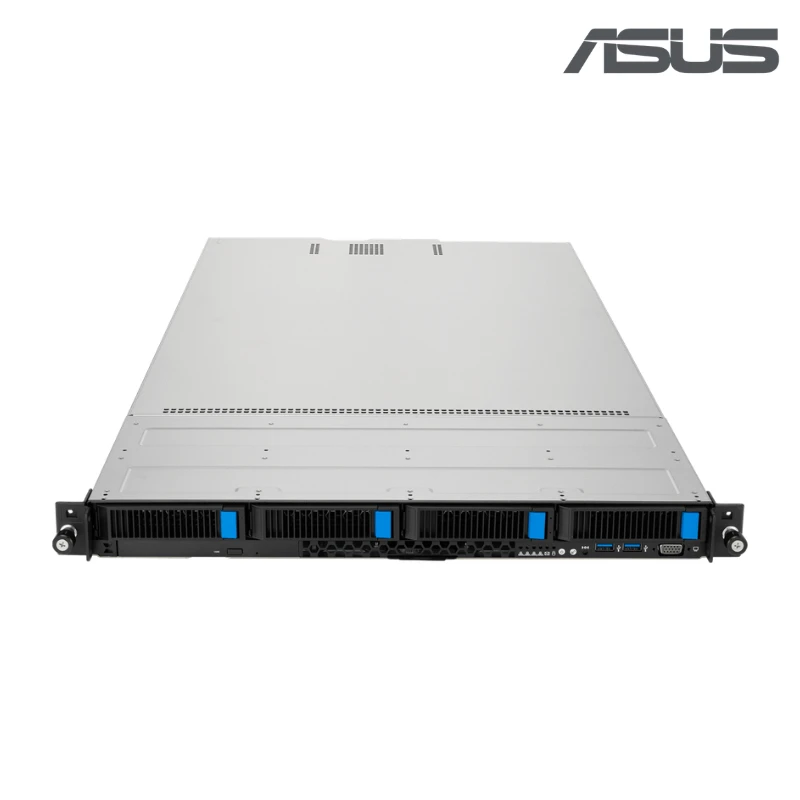

(RS700A) Server Asus RS700A-E12-RS4U
ASUS RS700A-E12-RS4U เป็นเซิร์ฟเวอร์ระดับองค์กรที่ใช้แพลตฟอร์ม AMD EPYC รุ่นใหม่ รองรับงานประมวลผลหนัก เช่น AI, HPC และ Virtualization ด้วยจำนวนคอร์ที่สูงและหน่วยความจำ DDR5 ประสิทธิภาพสูง พร้อมรองรับ PCIe Gen5 และ NVMe Storage ช่วยเพิ่มความเร็วในการประมวลผลและการเข้าถึงข้อมูล เหมาะสำหรับ Data Center ที่ต้องการความแรงและความเสถียรสูง
ข้อมูลจำเพาะ (Specification)
| รายการ | รายละเอียด (Description) |
|---|---|
| Processor Support | 2 x Socket SP5 (LGA 6096) AMD EPYC 9004 Series Processors (up to 400W) 4th Generation AMD EPYC Processors with AMD 3D V-Cache technology xGMI (External Global Memory Interface Link) |
| Core Logic | (INTEGRATED I/O – NO CHIPSET) |
| Memory Total Slots | 24 (12 channel per CPU, 1 DIMM per CPU) |
| Capacity | Maximum 6144GB |
| Memory Type | DDR5 4800/4400 RDIMM/ 3DS RDIMM *Refer to ASUS server AVL for the latest update |
| Memory Size | 128GB, 64GB, 32GB RDIMM 128GB, 64GB, 32GB 3DS RDIMM *Refer to ASUS server AVL for the latest update |
| Expansion Slots Total PCI/PCI-X/PCI-E/PIKE Slots | 3 x Expansion slots + 1 x Internal PIKE slot |
| Slot Type | Up to 3 x PCIe Gen5 slots + 1 x internal RAID slot 1 x PCIe Gen5 x16 (FHFL) 1 x PCIe Gen5 x16 or OCP3.0 (FHFL) 1 x PCIe Gen5 x16 (LP) 1 x PCIe Gen4 x8 (LP, internal) |
| Disk Controller SATA Controller | 8 x SATA 6Gb/s ports 2 x M.2 connectors (SATA 6Gb/s & PCI-E Gen4 x4 link) |
| SAS Controller | Optional kits: Broadcom HBA CARD 9500-16i Broadcom MegaRAID 9540-8i Broadcom MegaRAID 9560-16i |
| Storage Bays | I = internal A or S will be hot-swappable 4x 3.5″ Hot-Swap Storage Device Bays up to (4x NVMe/SATA/SAS*) 2 x M.2 (Up to 2280 from CPU1) *RAID card is required to support SAS hard drives |
| Networking LAN | 1 x Quad Port Intel I350-AM4 1G LAN Controller or 1 x Dual Port Intel X710-AT2 Gigabit 10G LAN Controller or None 1 x Management Port |
| Graphic VGA | Aspeed AST2600 64MB |
| Auxiliary storage Device Bay | 1 x Slim-type ODD (optional) |
| Front I/O Ports | 2 x USB 3.2 Gen 1 ports 1 x VGA port |

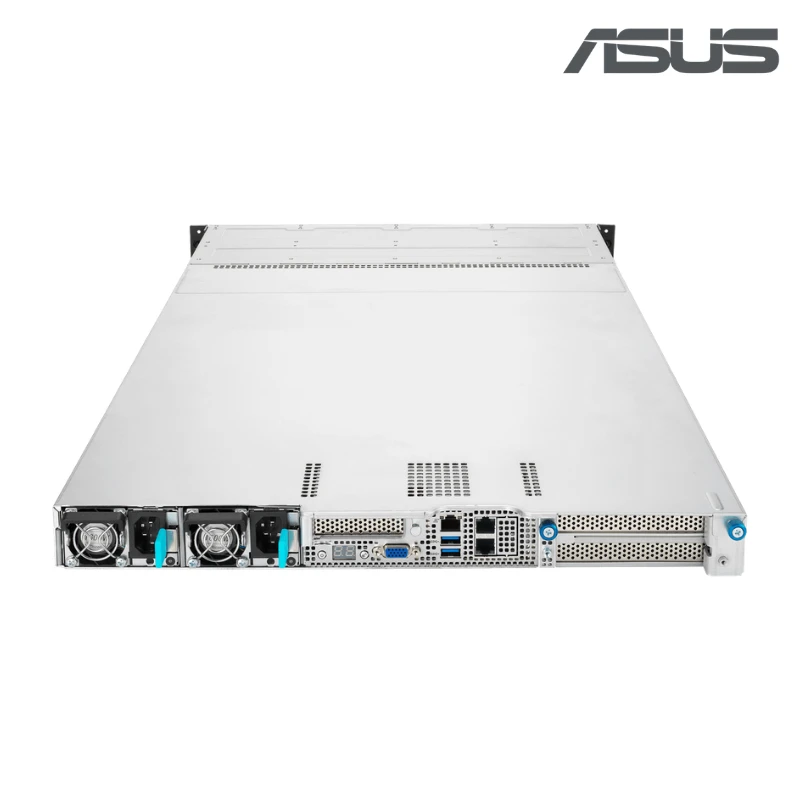

| Rear I/O Ports | 2 x USB 3.2 Gen1 ports, 1 x VGA port, 1 x RJ-45 Mgmt LAN port 2 x 10G or 4 x 1G RJ-45 GbE LAN port (Optional), 1 x OCP3.0 port (Optional) |
| Switch/LED Front Switch/LED | 1 x Power Switch (w/ LED), 1 x Reset Switch, 1 x Location Switch (w/ LED) 1 x HDD Access LED, 1 x Message LED, LAN 1-4 LED (on NIC module) |
| Switch/LED Rear Switch/LED | 1 x Port 80 LED (Q-Code), 1 x Power Switch (w/ LED), 1 x Location switch (w/ LED) 1 x Message LED |
| OS Support | Windows® Server 2019 RedHat® Enterprise Linux, SuSE® Linux Enterprise Server CentOS, Ubuntu, Vmware Please find the latest OS support from http://www.asus.com/ |
| Management Solution Software | ASUS Control Center (Classic) |
| Out of Band Remote Management | On-Board ASMB11-iKVM for KVM-over-IP |
| Dimension | 842.5mm x 449mm x 43.85mm / 33.17” x 17.68” x 1.73” (1U) |
| Net Weight Kg (CPU, DRAM & HDD not included) |
13.93 kg |
| Gross Weight Kg (CPU, DRAM & HDD not included, Packing include) |
18.93kg |
| Power Supply (following different configuration by region) |
1+1 Redundant 2600W/1600W 80 PLUS Titanium power supply 1+1 Redundant 2000W/1600W 80 PLUS Platinum power supply |
| Environment | Operation temperature: 10℃ ~ 35℃ Non operation temperature: -40℃ ~ 60℃ Non operation humidity: 20% ~ 90% ( Non condensing) |
