H3C MSR810 Series Router รุ่น MSR810-LM-EA

MSR810-LM-EA

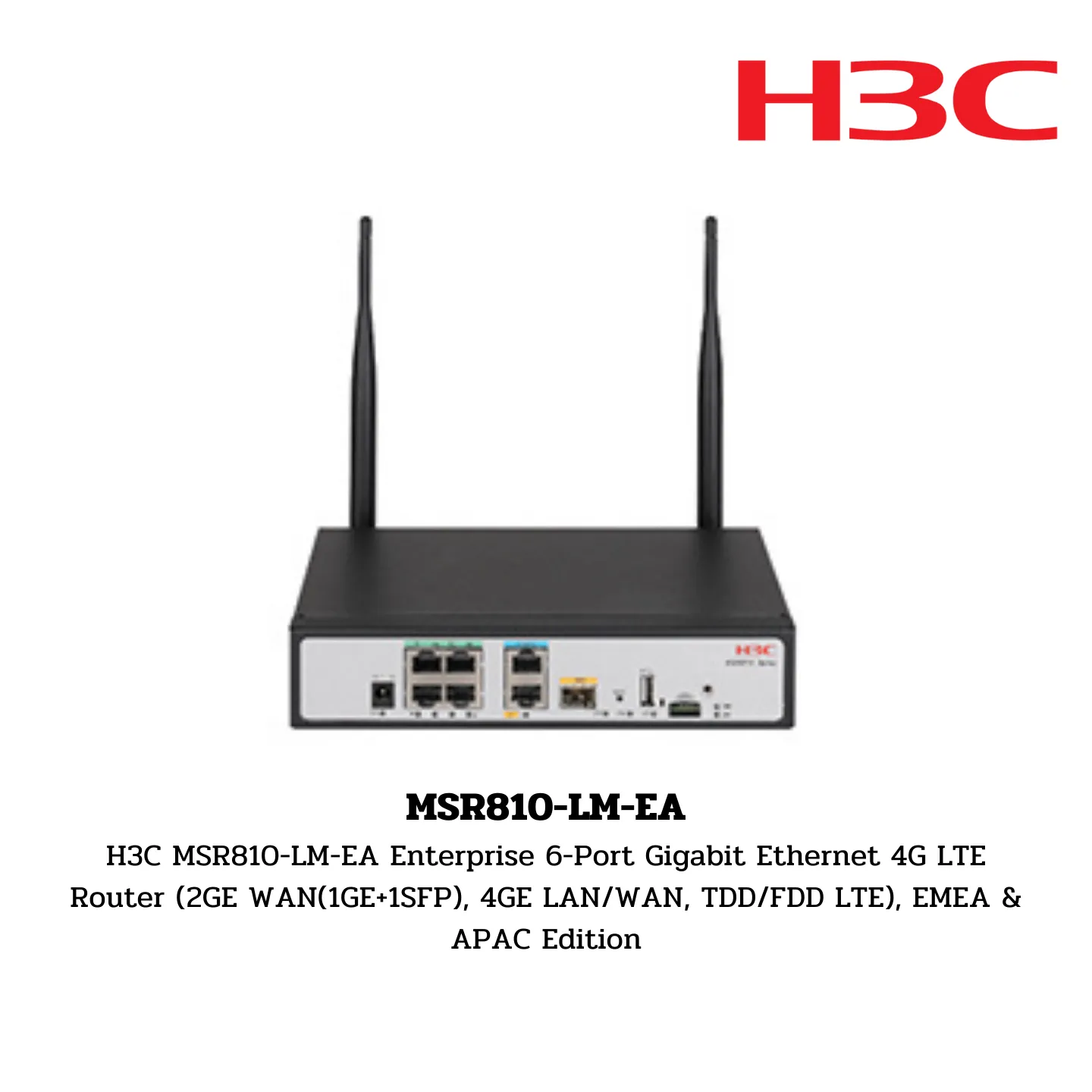

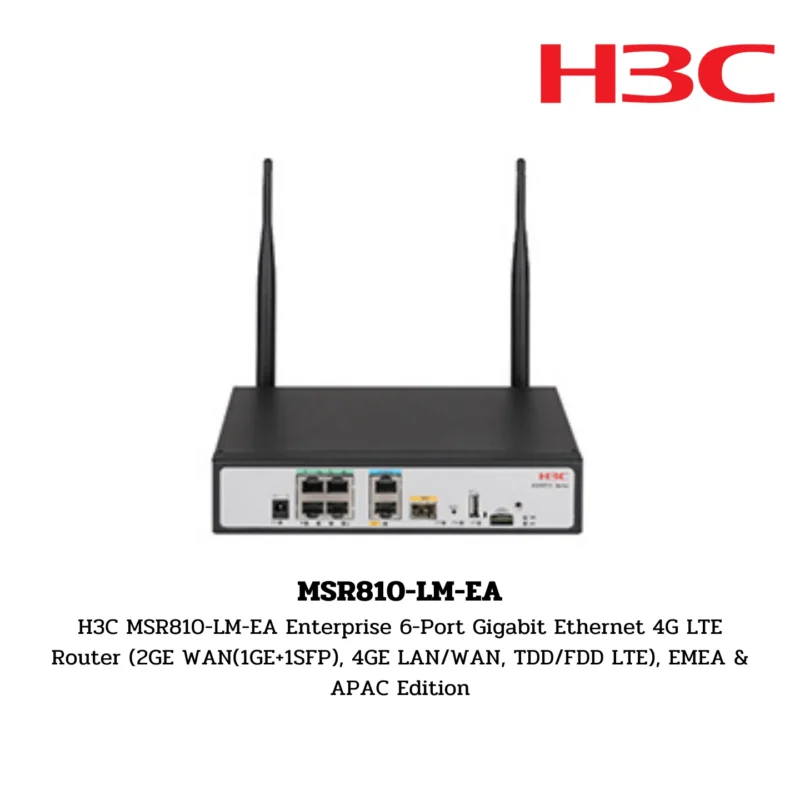

H3C MSR810-LM-EA Enterprise 6-Port Gigabit Ethernet 4G LTE Router (2GE WAN(1GE+1SFP), 4GE LAN/WAN, TDD/FDD LTE), EMEA & APAC Edition

Hardware Specifications

IP Forwarding Performance (IMIX):

• 400 Mbps

Forwarding Performance with ACL+NAT+QOS (IMIX):

• 200 Mbps

IPSec Forwarding Performance (1400 byte):

• 70 Mbps

CPU:

• 800 MHz

Memory:

• 1 GB

Flash (default/maximum):

• 256 MB

External Flash:

• N/A

USB Ports:

• 1

Console Ports:

• 1

WAN Ports:

• 1 × GE copper port
• 1 × SFP port

LAN Ports:

• 4 × GE ports (can be configured as WAN interfaces)

WLAN:

• N/A

WLAN Antenna:

• N/A

Built-in 3G/4G Modem:

• TDD-LTE:
  • Band 38: 2570 to 2620 MHz
  • Band 40: 2300 to 2400 MHz
  • Band 41: 2496 to 2690 MHz
• FDD-LTE:
  • Band 1: UL: 1920 to 1980 MHz, DL: 2110 to 2170 MHz
  • Band 3: UL: 1710 to 1785 MHz, DL: 1805 to 1880 MHz
  • Band 5: UL: 824 to 849 MHz, DL: 869 to 894 MHz
  • Band 7: UL: 2500 to 2570 MHz, DL: 2620 to 2690 MHz
  • Band 8: UL: 880 to 915 MHz, DL: 925 to 960 MHz
  • Band 20: UL: 832 to 862 MHz, DL: 791 to 821 MHz
  • Band 28: UL: 703 to 748 MHz, DL: 758 to 803 MHz
• WCDMA/HSPA+:
  • Band 1: UL: 1920 to 1980 MHz, DL: 2110 to 2170 MHz
  • Band 5: UL: 824 to 849 MHz, DL: 869 to 894 MHz
  • Band 8: UL: 880 to 915 MHz, DL: 925 to 960 MHz
• GSM:
  • Band 3: UL: 1710 to 1785 MHz, DL: 1805 to 1880 MHz
  • Band 5: UL: 824 to 849 MHz, DL: 869 to 894 MHz
  • Band 8: UL: 880 to 915 MHz, DL: 925 to 960 MHz

3G/4G Antenna:

• Stick-like/Magnetic antenna

SIM Card Slot:

• 2 (dual-card one-standby)

Max Power Consumption:

• 12W

Power Voltage (Adapter):

• External power adapter: 100 VAC to 240 VAC @ 50 Hz/60 Hz

Power Voltage (Device):

• DC 12V 2A

Dimensions (H × W × D):

• 44 × 210 × 140 mm

Operating Temperature:

• 0°C to 45°C

Operating Humidity:

• 5% RH to 95% RH, non-condensing

EMC:

• FCC Part 15 Subpart B CLASS B
• ICES-003 CLASS B
• VCCI CLASS B
• CISPR 32 CLASS B
• EN 55032 CLASS B
• AS/NZS CISPR32 CLASS B
• CISPR 35
• EN 55035
• EN 61000-3-2
• EN 61000-3-3
• ETSI EN 300 386
• ETSI EN 301 489-1
• ETSI EN 301 489-52
• GB/T 9254.1

Safety:

• IEC 60950-1
• AS/NZS 60950-1
• FDA 21 CFR Subchapter J
• GB 4943.1
• UL 62368-1
• CAN/CSA C22.2 No 62368-1
• IEC 62368-1
• EN 62368-1
• AS/NZS 62368-1
