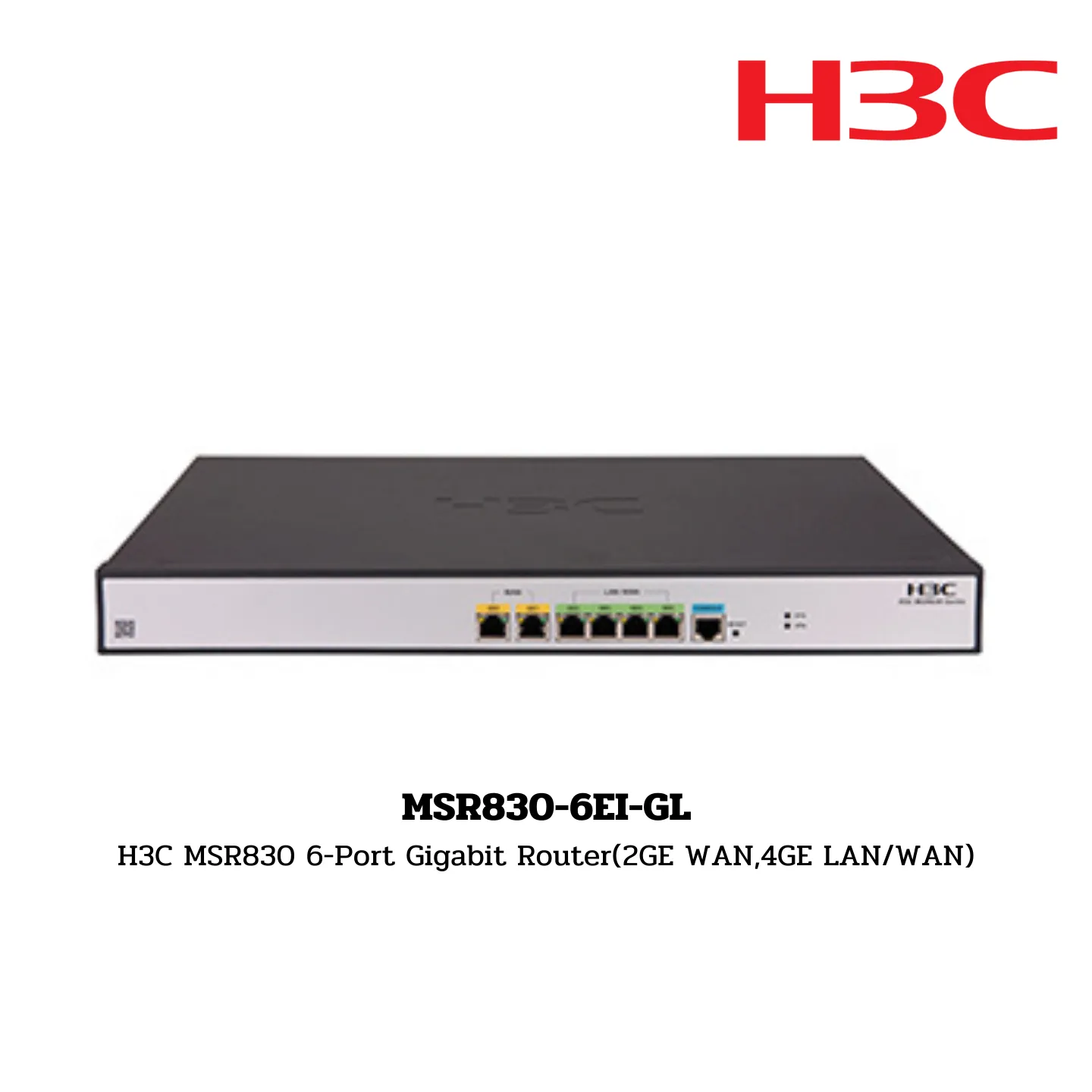

H3C MSR830 Series Router รุ่น MSR830-6EI-GL

MSR830-6EI-GL

H3C MSR830 6-Port Gigabit Router(2GE WAN,4GE LAN/WAN)

Hardware Specifications

IP Forwarding Performance (IMIX):

• 400 Mbps

Forwarding Performance with ACL+NAT+QOS (IMIX):

• 200 Mbps

IPSec Forwarding Performance (1400 byte):

• 70 Mbps

CPU:

• 800 MHz

Memory:

• 1 GB

Flash (default/maximum):

• 256 MB

External Flash:

• N/A

USB Ports:

• N/A

Console Ports:

• 1

WAN Ports:

• 2 × GE copper ports

LAN Ports:

• 4 × GE ports (can be configured as WAN interfaces)

Max Power Consumption:

• 22 W

Rated Voltage:

• 100 VAC to 240 VAC @ 50 Hz/60 Hz

Dimensions (H × W × D):

• 44 × 440 × 225 mm (1.73 × 17.32 × 8.86 in)

Weight:

• 2.45 kg (5.40 lb)

Operating Temperature:

• 0ºC to 45ºC (32°F to 113°F)

Operating Humidity:

• 5% RH to 95% RH, non-condensing

EMC:

• FCC Part 15 (CFR 47) CLASS A
• ICES-003 CLASS A
• VCCI-3 CLASS A
• VCCI-4 CLASS A
• CISPR 22 CLASS A
• EN 55022 CLASS A
• AS/NZS CISPR22 CLASS A
• CISPR 24
• EN 55024
• EN 61000-3-2
• EN 61000-3-3
• EN 61000-6-1
• ETSI EN 300 386
• EN 301 489-1
• EN 301 489-17

Safety:

• UL 60950-1
• CAN/CSA C22.2 No 60950-1
• IEC 60950-1
• EN 60950-1/A11
• AS/NZS 60950
• EN 60825-1
• EN 60825-2
• FDA 21 CFR Subchapter J
• GB 4943
