R2X06A

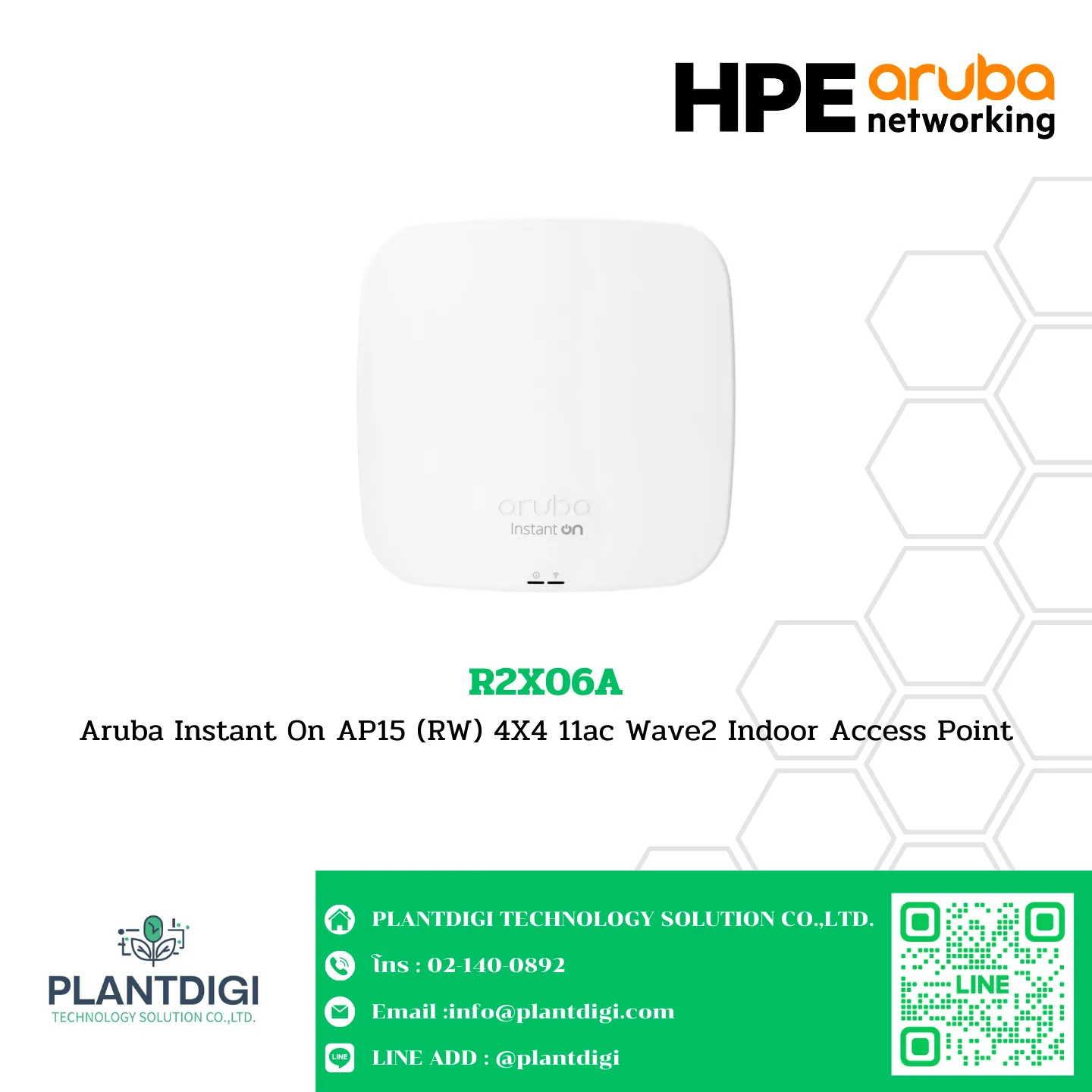

Aruba Instant On AP15 (RW) 4X4 11ac Wave2 Indoor Access Point
Overview
The Aruba Instant On AP15 Indoor Access Point offers a reliable, affordable, and premium-grade Wave 2 802.11ac Wi-Fi experience for medium-density small business environments requiring high performance, such as boutique hotels and multi-level retail stores. These cost-effective access points are ideal for small businesses, scaling up to 25 access points without additional cost and complexity.
Specifications
Model:
- R2X06A
Certifications:
- UL 2043 plenum rating
- EN 60601-1-1 and EN 60601-1-2 (for deployment in medical environments)
- Wi-Fi Alliance certified (WFA) 802.11ac with Wave 2 (Wi-Fi 5), WPA2, WPA3, Enhanced Open (OWE)
Input Voltage:
- Power over Ethernet (PoE): 802.3af (class 3)
- DC power (12V)
- Note: Power sources are sold separately
Regulatory:
- UL2043 plenum rating
Wi-Fi Antenna:
- Integrated downtilt omni-directional antennas with maximum individual antenna gain of 3.6dBi in 2.4GHz and 6.0dBi in 5GHz.
Connectivity, Standard:
- IEEE 802.11ac, 802.11n
Ports:
- (1) uplink Gigabit Ethernet port, with PoE-in support (802.3af)
Mounting:
- The access point ships with a (black) mount clip to attach to suspended ceiling rails, and a (white) mount clip to attach to solid surfaces (wall/ceiling).
Radio Coverage:
- Dual Radio for simultaneous dual-band operation
- 5 GHz 802.11ac 4×4 MIMO for up to 1,733 Mbps wireless data rate, with Multi-User MIMO support (Wi-Fi 5)
- 2.4 GHz 802.11n 2×2 MIMO for up to 300 Mbps wireless data rate (Wi-Fi 4)
Weight:
- 674 g (1.5 lb)
Dimensions:
- 41 x 183 x 183 mm (1.6 x 7.2 x 7.2 in)
Key Features
- Reliable and Affordable: Ideal for medium-density small business environments.
- High Performance: Peak data rate of 1,733 Mbps, scalable up to 25 access points.
- Dual-Band Operation: Simultaneous dual-band support with 802.11ac Wave 2 (Wi-Fi 5) and 802.11n (Wi-Fi 4) standards.
- PoE and DC Power: Flexible power options with Power over Ethernet (PoE) or DC power.
- Easy Installation: Comes with mounting clips for suspended ceilings and solid surfaces.
- Premium-Grade Wi-Fi: Enhanced Wi-Fi experience with Multi-User MIMO support.
- Comprehensive Warranty: 2 Year warranty with robust support options.
