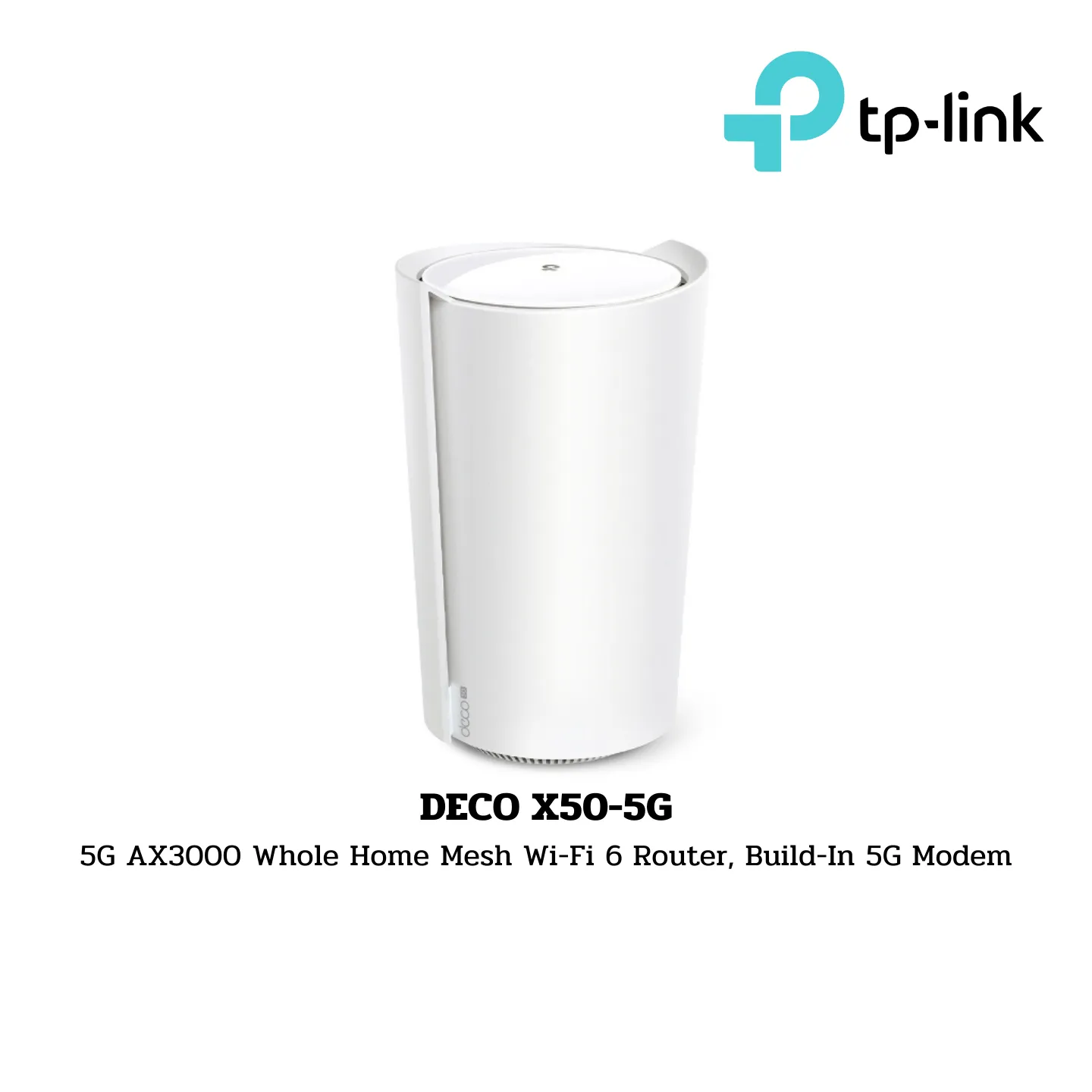

TP-Link Whole Home Mesh Wi-Fi Router รุ่น DECO X50-5G

DECO X50-5G
5G AX3000 Whole Home Mesh Wi-Fi 6 Router, Build-In 5G Modem

Brand:

• TP-Link

Speed:

• 574 Mbps at 2.4 GHz + 2402 Mbps at 5 GHz
• 5G: 3.4Gbps/900Mbps
• 4G+ Cat19: 1.6Gbps/Cat18: 200Mbps

Specification:

• Internal Antennas
• 1× 2.5Gbps Port + 2× Gigabit Ports (WAN/LAN auto-sensing)
• 5G/LTE-FDD/LTE-TDD

Feature:

• Deco App
• 4G/5G Router/Router/AP Mode
• IPv6
• IPTV
• HomeShield (Parental Controls, Antivirus, QoS, Reports)
• OFDMA
• MU-MIMO
• 1024-QAM
• HE160
• WPA3
• Beamforming
• Alexa Supported

Wireless:

Standards:

• Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz)

Wi-Fi Speeds:

• AX3000 (5 GHz: 2402 Mbps, 2.4 GHz: 574 Mbps)

Wi-Fi Range:

• 1-3 Bedroom Houses (1-pack)
• TP-Link Mesh Technology with Optional Ethernet backhaul

Antennas:

• 4× LTE/5G internal antennas + 2× Wi-Fi internal antennas
• 2× external antenna interface

Wi-Fi Capacity:

• High Capacity with Dual-Band distribution
• MU-MIMO
• OFDMA
• 4 Streams

Working Modes:

• 5G/4G Router, Router, Access Point

Security:

Network Security:

• SPI Firewall, Access Control

HomeShield Security:

• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner

Guest Network:

• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

Wi-Fi Encryption:

• WPA-Personal, WPA2-Personal, WPA3-Personal

Hardware:

Ports and Connections:

• 1× 2.5 Gigabit port
• 2× 1 Gigabit ports (WAN/LAN auto-sensing)

Compatibility:

5G:

• SA: n1 / n3 / n5 / n7 / n8 / n20 / n28 / n38 / n40 / n41 / n77 / n78
• NSA: Multiple combinations as specified

4G FDD-LTE:

• B1/B3/B5/B7/B8/B20/B28

4G TDD-LTE:

• B38/B40/B41/B42/B43

3G:

• B1/B5/B8

Software:

Protocols:

• IPv4, IPv6

Service Kit:

• HomeShield

WAN Types:

• Dynamic IP, Static IP, PPPoE, L2TP, PPTP

Quality of Service:

• HomeShield QoS, QoS by Device

Cloud Service:

• OTA Firmware Upgrade
• TP-Link ID
• DDNS

NAT Forwarding:

• Port Forwarding
• UPnP

IPTV:

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP:

• Address Reservation
• DHCP Client List
• Server

DDNS:

• TP-Link

Management:

• Deco App

Test Data:

Wi-Fi Transmission Power:

• CE: ≤20 dBm (2.4 GHz), ≤23 dBm (5 GHz)

Physical:

Dimensions (W×D×H):

• 8.3 × 5.1 × 4.8 in (210.5 × 130 × 123mm)

Others:

Certification:

• RoHS, CE, RCM

Package Contents (1-pack):

• 1 Deco X50-5G unit
• 1 RJ45 Ethernet Cable
• 1 Power Adapter
• Quick Installation Guide

Environment:

• Operating Temperature: 0°C~40°C (32°F~104°F)
• Storage Temperature: -40°C~60°C (-40°F~140°F)
• Operating Humidity: 10%~90%RH
• Storage Humidity: 5%~90%RH
