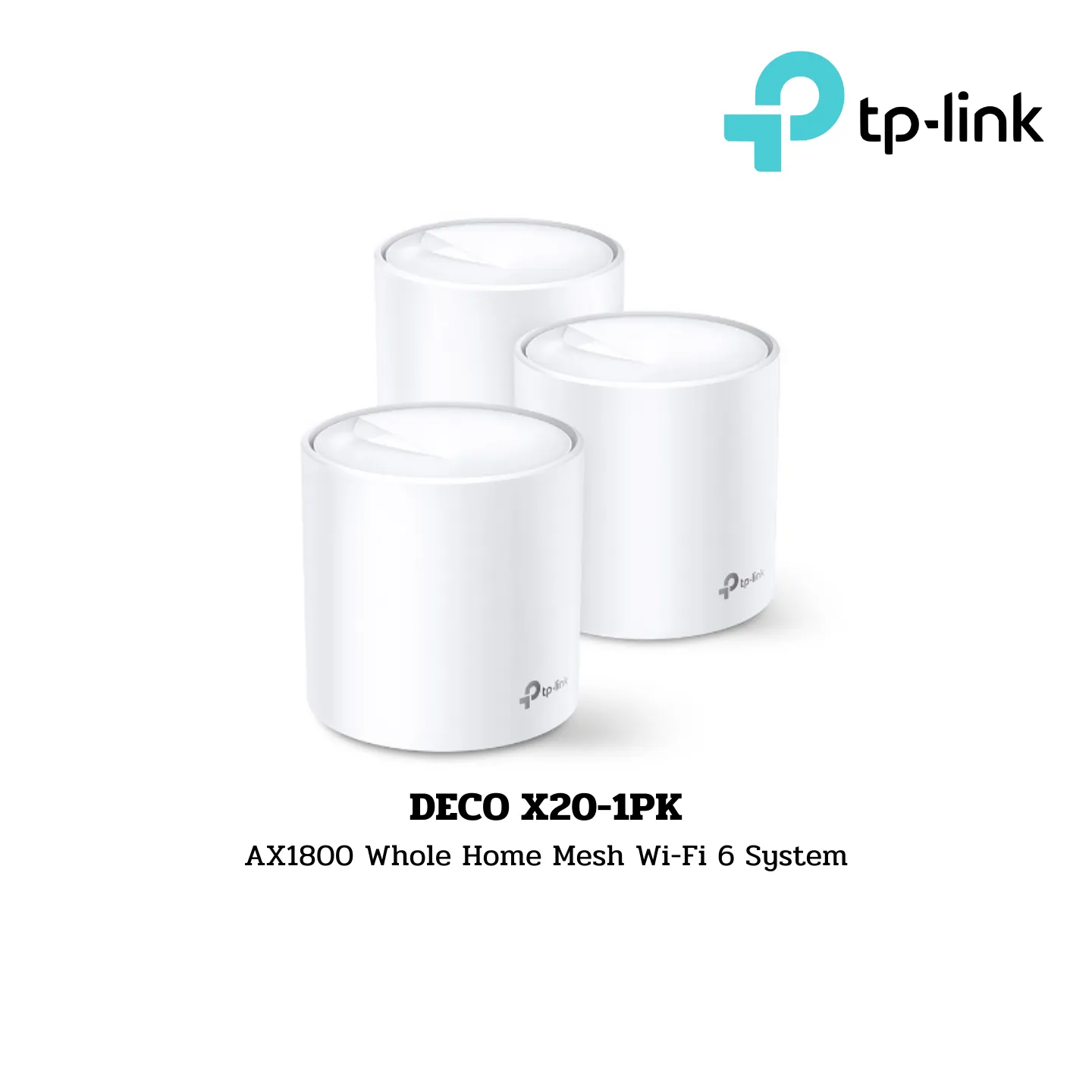

TP-Link Whole Home Mesh Wi-Fi รุ่น DECO X20-1PK

DECO X20-1PK
AX1800 Whole Home Mesh Wi-Fi 6 System

Brand:

• TP-Link

Speed:

• 574 Mbps at 2.4 GHz + 1201 Mbps at 5 GHz

Specification:

• 4× Internal Antennas
• 2× Gigabit Ports (WAN/LAN auto-sensing)
• Qualcomm 1 GHz Quad-core CPU

Feature:

• Deco App
• Router/AP Mode
• IPv6
• IPTV
• HomeCare (Parental Controls, Antivirus, QoS, Reports)
• OFDMA
• MU-MIMO
• 1024-QAM
• WPA3
• Beamforming
• Alexa Supported

Wireless:

Standards:

• Wi-Fi 6 (IEEE 802.11ax/ac/n/a 5 GHz, IEEE 802.11ax/n/b/g 2.4 GHz)

Wi-Fi Speeds:

• AX1800 (5 GHz: 1201 Mbps, 2.4 GHz: 574 Mbps)

Wi-Fi Range:

• 4-6 Bedroom Houses (3-pack)
• TP-Link Mesh Technology with Optional Ethernet backhaul for seamless coverage

Antennas:

• 2× Internal Antennas
• Multiple antennas form a signal-boosting array to cover more directions and large areas

Beamforming:

• Concentrates wireless signal strength towards clients to expand WiFi range

Wi-Fi Capacity:

• High Capacity with Dual-Band distribution
• MU-MIMO
• OFDMA
• 4 Streams

Working Modes:

• Router Mode
• Access Point Mode

Security:

Network Security:

• SPI Firewall, Access Control

HomeShield Security:

• Real-Time IoT Protection
• Malicious Site Blocker
• Intrusion Prevention System
• DDoS Attack Prevention
• Home Network Scanner

Guest Network:

• 1× 5 GHz Guest Network
• 1× 2.4 GHz Guest Network

Wi-Fi Encryption:

• WPA-Personal
• WPA2-Personal
• WPA3-Personal

Hardware:

Ethernet Ports:

• 2× Gigabit Ports (Per Deco Unit, supports WAN/LAN auto-sensing)

Buttons:

• Reset Button

Software:

Protocols:

• IPv4, IPv6

Service Kits:

• HomeShield

Parental Controls:

• HomeShield Parental Controls
• Youtube Restriction
• SafeSearch
• Custom Profiles
• Professional Content Filter Library
• Family Time
• Bedtime
• Off Time
• Time Rewards
• Family Online Time Ranking
• Pause the Internet
• Weekly and Monthly Reports

WAN Types:

• Dynamic IP
• Static IP
• PPPoE
• PPTP
• L2TP

Quality of Service:

• HomeShield QoS
• QoS by Device

Cloud Service:

• OTA Firmware Upgrade
• TP-Link ID
• DDNS

NAT Forwarding:

• Port Forwarding
• UPnP

IPTV:

• IGMP Proxy
• IGMP Snooping
• Bridge
• Tag VLAN

DHCP:

• Address Reservation
• DHCP Client List
• Server

DDNS:

• TP-Link

Management:

• Deco App

Test Data:

Wi-Fi Transmission Power:

• CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz)
• FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz)

Physical:

Dimensions (W×D×H):

• 4.33 × 4.33 × 4.49 in (110 × 110 × 114 mm)

Package Contents:

• Deco X20 (3-pack): 3 Deco X20 Units, 1 RJ45 Ethernet Cable, 3 Power Adapters, Quick Installation Guide
• Deco X20 (2-pack): 2 Deco X20 Units, 1 RJ45 Ethernet Cable, 2 Power Adapters, Quick Installation Guide
• Deco X20 (1-pack): 1 Deco X20 Unit, 1 RJ45 Ethernet Cable, 1 Power Adapter, Quick Installation Guide

Others:

System Requirements:

• Android 5.0 or later, iOS 9.0 or later
• Note: The minimum system requirements will be updated alongside updates to the app, subject to official website information.

Certifications:

• CE, FCC, IC, RoHS, JPA, JRF, VCCI

Environment:

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~60℃ (-40℉ ~140℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
