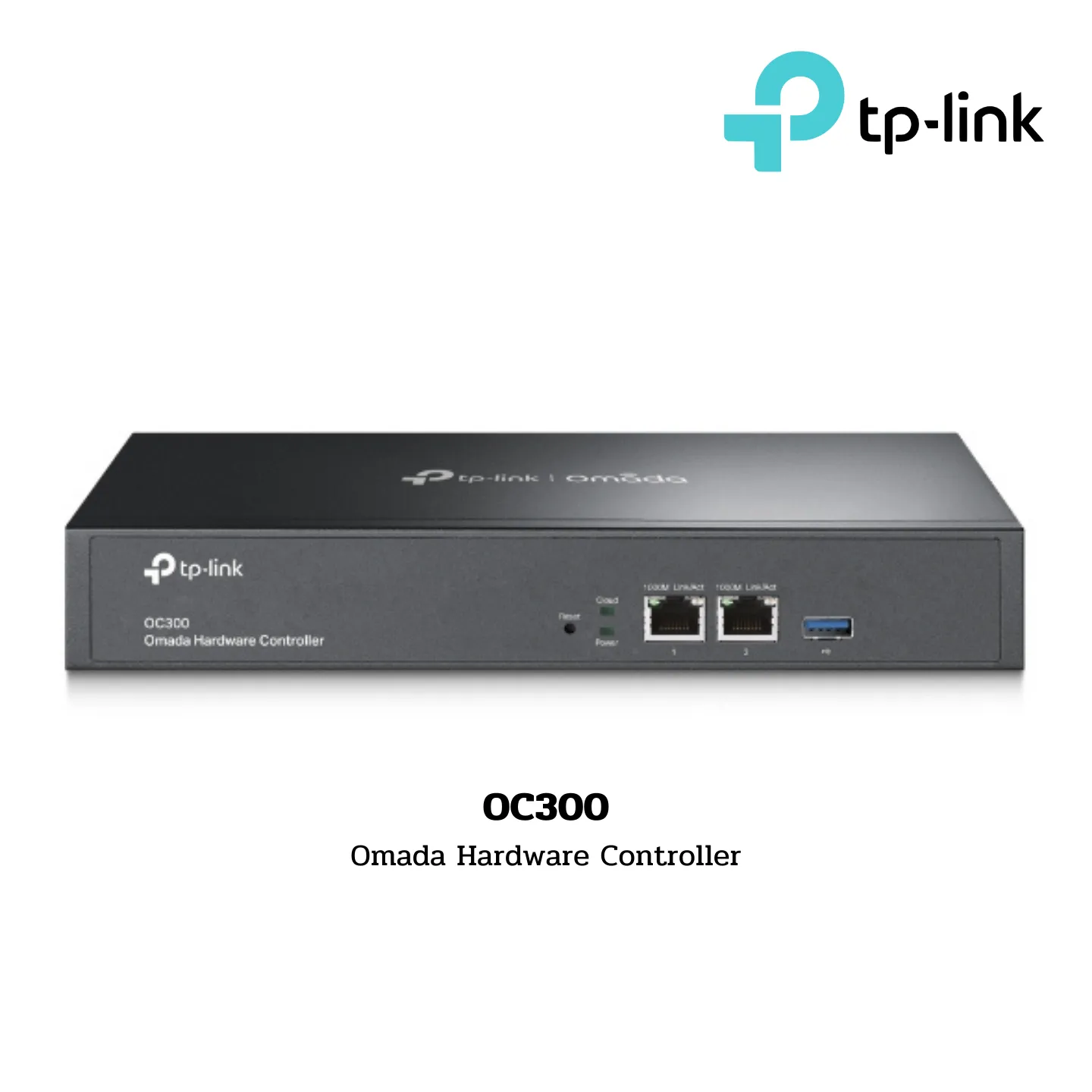

TP-Link OC300 Omada Hardware Controller

OC300
Omada Hardware Controller

Brand:

• TP-Link

Centralized Management:

• Supports: Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers.
• Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
• On-Premises Management: Locally monitor and manage devices with ultimate security and stability.
• Industry-Leading Hardware Design: Includes a powerful chipset, durable metal casing, USB 3.0 port for auto backup, and two Gigabit ports.
• Easy and Intelligent Network Monitoring: The easy-to-use dashboard makes it simple to see real-time network status and traffic distribution.
• Real-Time Network Topology: Helps IT admins quickly see and troubleshoot connections at a glance.
• Easier Network Maintenance: Includes WiFi heatmap simulator, visualizable network report, and batch & multi-site management.

Omada Hardware Controller:

Port:

• 2× 10/100/1000 Mbps Ethernet Ports
• 1× USB 3.0 Port

Feature:

• Cloud Access
• Centralized Management for up to 500 Omada EAPs, JetStream switches, and SafeStream routers
• Multi-site Management
• Omada App
• Metal casing
• Rack-Mountable

Hardware Features:

Interface:

• 2× 10/100/1000 Mbps Ethernet Ports
• 1× USB 3.0 Port

Power Supply: 100–240 V~50/60 Hz, 0.6 A

Dimensions: 11.6 × 7.1 × 1.7 in (294 × 180 × 44 mm)

Management:

Omada App: Yes

Centralized Management:

• Up to 500 Omada access points, 100 JetStream switches, and 100 Omada routers*
• Up to 15,000 clients

Cloud Access: Yes

L3 Management: Yes

Multi-site Management: Yes

Management Features:

• Automatic Device Discovery
• Batch Configuration
• Batch Firmware Upgrading
• Intelligent Network Monitoring
• Abnormal Event Warnings
• Unified Configuration
• Reboot Schedule
• Captive Portal Configuration

Others:

Certification: CE, FCC, RoHS

Package Contents:

• Omada Hardware Controller OC300
• Quick Installation Guide
• Ethernet Cable
• Power Cord
• Rackmount Kit

System Requirements: Microsoft® Windows®10, 8, 7, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux

Environment:

• Operating Temperature: 0–50 ℃ (32–122 ℉)
• Storage Temperature: -40–70 ℃ (-40–158 ℉)
• Operating Humidity: 10–90% RH non-condensing
• Storage Humidity: 5–90% RH non-condensing
