เครื่องสำรองไฟ APC SMC รุ่น SMC1500I-2UC

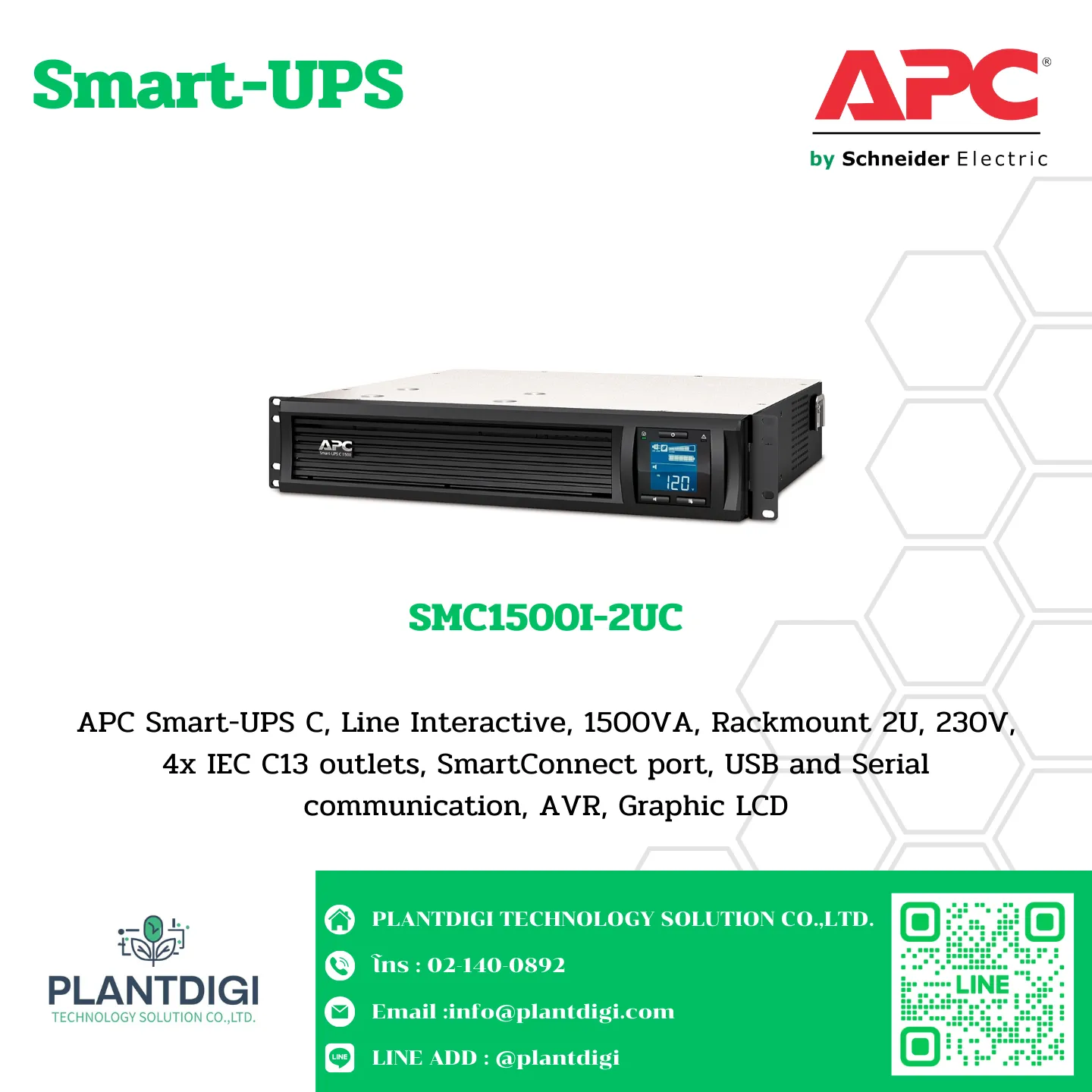

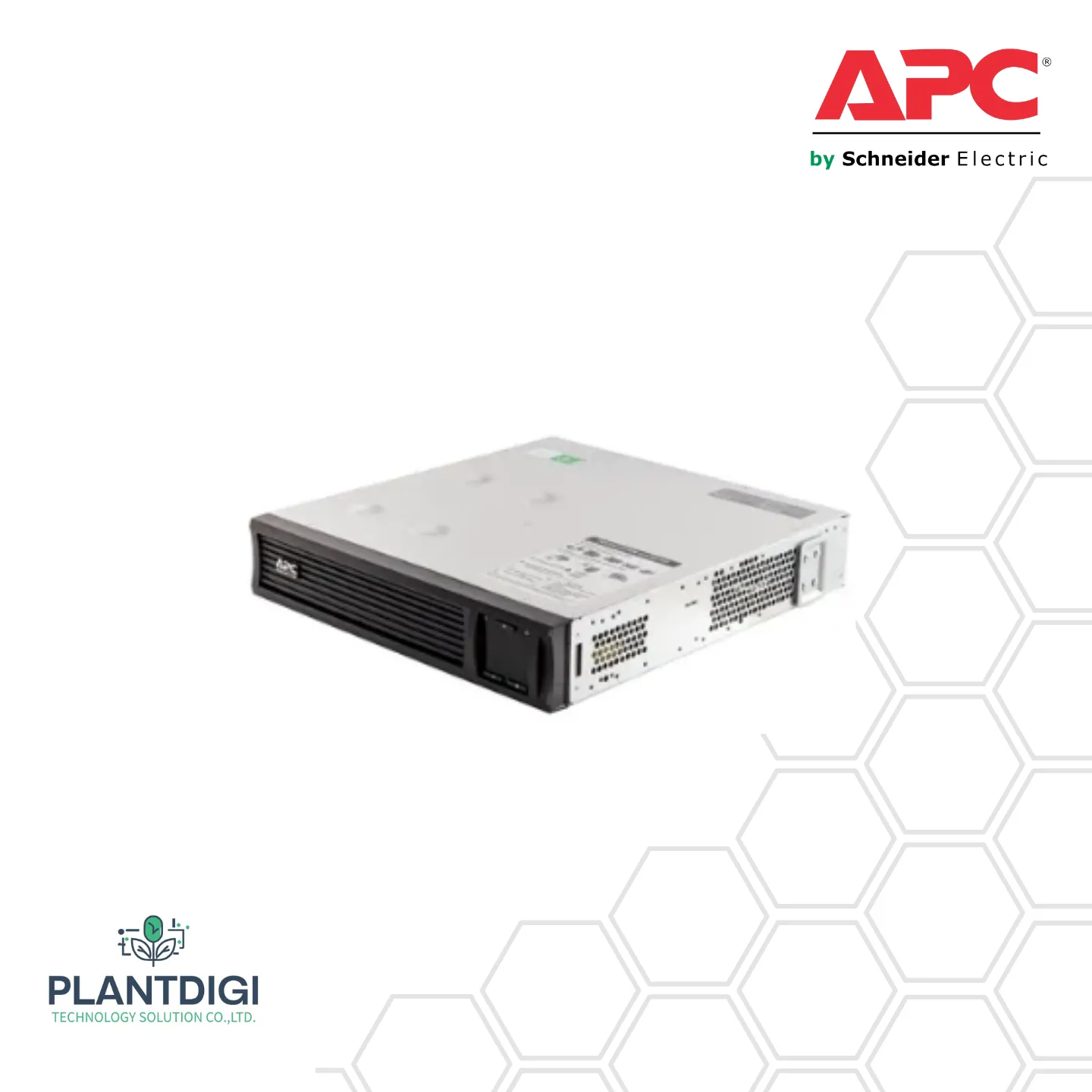

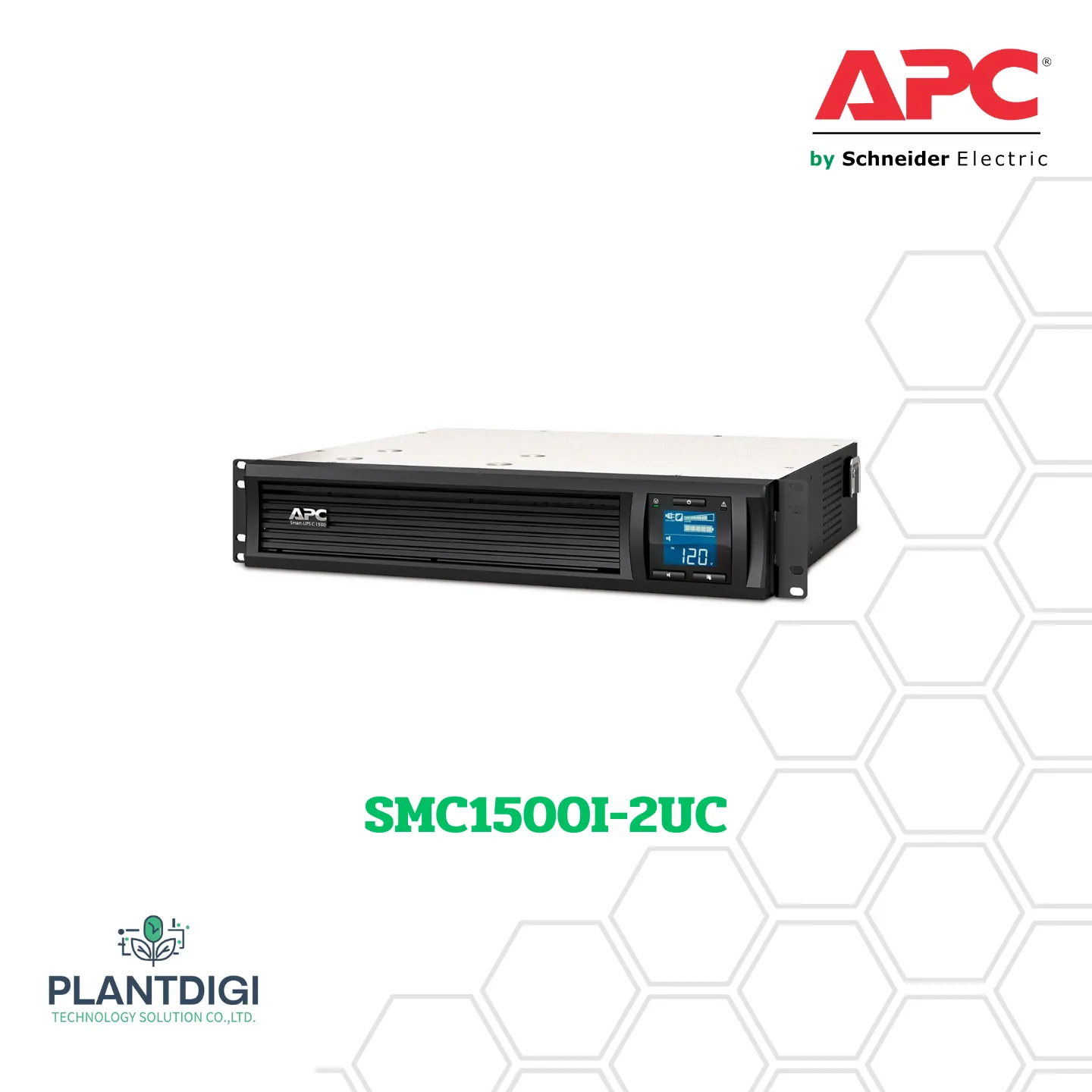

APC SMC1500I-2UC

APC Smart-UPS C, Line Interactive, 1500VA, Rackmount 2U, 230V, 4x IEC C13 outlets, SmartConnect port, USB and Serial communication, AVR, Graphic LCD

———
Overview
———–
Presentation:Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time :Usually Ships within 2 Weeks

————-
Main
————–
รันไทม์สําหรับโหลด :900 W
ต่ำสุด-สูงสุด: 90-900 W 6min 23s
ความจุสูงสุดที่ใช้ :100 %
Main Input Voltage :230 V
Other Input Voltage :220 V ,240 V
Main Output Voltage :230 V
Other Output Voltage :220 V ,240 V
Rated power in W: 900 W
Rated power in VA: 1500 VA
Product or component type :Uninterruptible power supply (UPS)
Input Connection Type IEC 320 C14

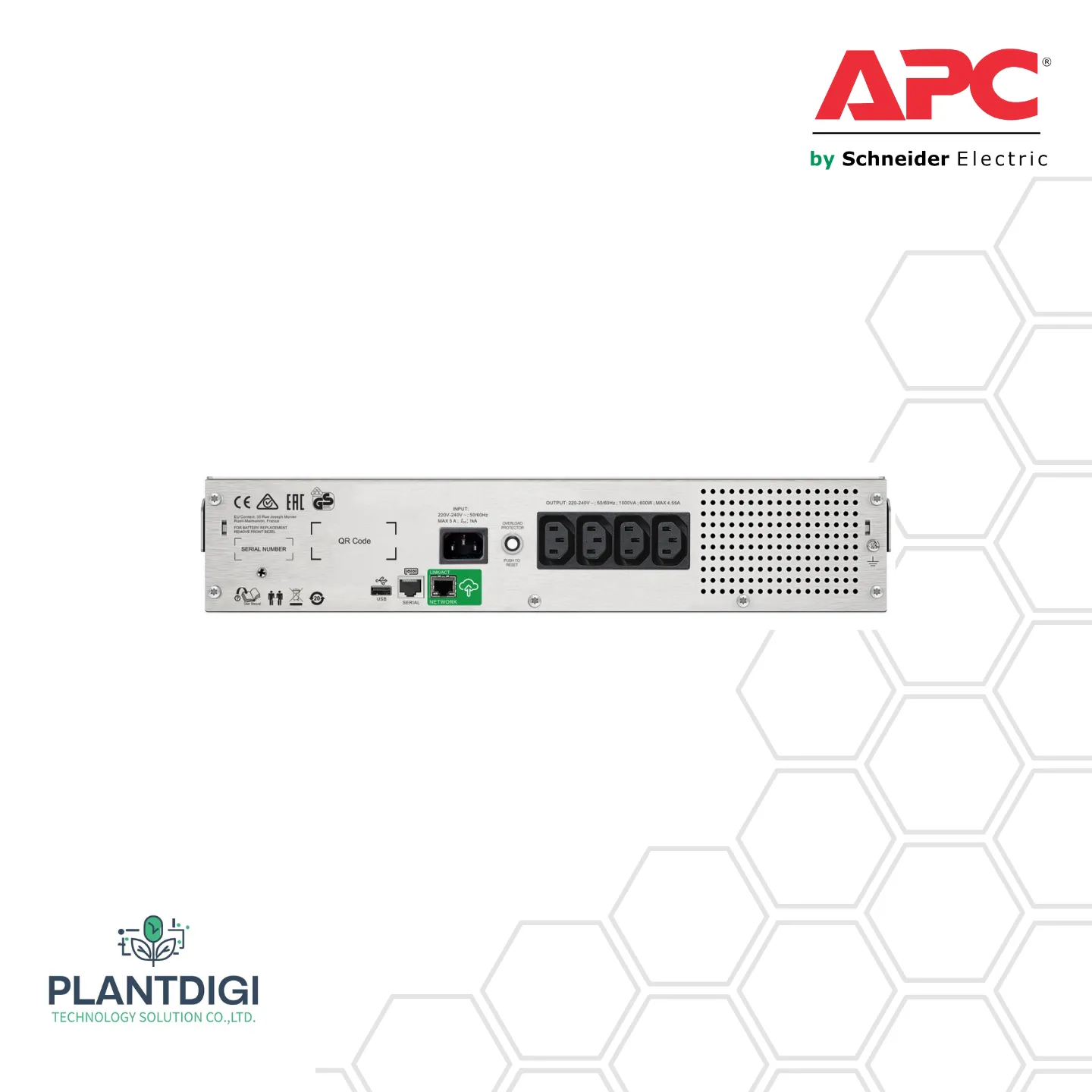

output connection type:4 IEC 320 C13,2 IEC Jumpers
number of rack unit: 2U
Number of cables: 1
Battery type: Lead-acid battery
Provided equipment : Documentation CD ,Installation guide ,Rack mounting brackets, USB cable
Range of product: Smart-UPS

—————
Complementary
—————
Communication port type: SmartConnect Ethernet port
Software package: SmartConnect software for remote power monitoring feature availability varies by terms of use

—————-
Batteries & Runtime
——————-
Extended runtime: 0
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 4…6 year(s)
Replacement battery: APCRBC157
Battery charger power: 112 W rated

————-
General
————
Number of power module filled slots: 0
Number of power module free slots: 0
product web sub-family: Cloud-enabled monitoring
Redundant: No

———
Physical
———
Colour: Black
Height: 8.6 cm
Width: 43.2 cm
Depth: 47.7 cm
Net weight: 28.64 kg
mounting location: Front
Mounting preference: Lower
mounting mode: Rack-mounted
Two post mountable: 1
USB compatible: Yes

—–
Input
—–
Input voltage limits: 170…300 V adjustable
180…287 V
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

——-
Output
——-
Harmonic distortion: Less than 5 %
Maximum configurable power in VA: 1500 VA
Maximum configurable power in W: 900 W
Transfer time: 6 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50/60 Hz +/- 3 Hz sync to mains

————
Conformance
————
Product certifications: C-Tick ,CE ,GOST ,VDE ,UK PSTI
Standards: EN/IEC 62040-1:2019/A11:2021,EN/IEC 62040-2:2006/AC:2006,EN/IEC 62040-2:2018

————-
Environmental
————-
acoustic level: 46 dBA
Heat dissipation: 90 Btu/h
Operating altitude: 0…10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.0000000000…15240.0000000000 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %

—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Free slots: 0
Communication port support: SmartConnect Ethernet port: for cloud monitoring feature availability varies by terms of use
Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 459 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

—————
Packing Units
—————
Unit Type of Package 1:PCE
Number of Units in Package 1: 1
Package 1 Height: 25.1 cm
Package 1 Width: 60.3 cm
Package 1 Length: 59.4 cm
Package 1 Weight: 31.91 kg

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace
