เครื่องสำรองไฟ APC Back-UPS Pro รุ่น BR900MI

APC BR900MI

APC Back-UPS Pro, 900VA/540W, Tower, 230V, 6x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 540 W
ต่ำสุด-สูงสุด: 54-540 W 2min 29s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated power in W: 540 W
Rated power in VA: 900 VA
Product or component type: Uninterruptible power supply (UPS)

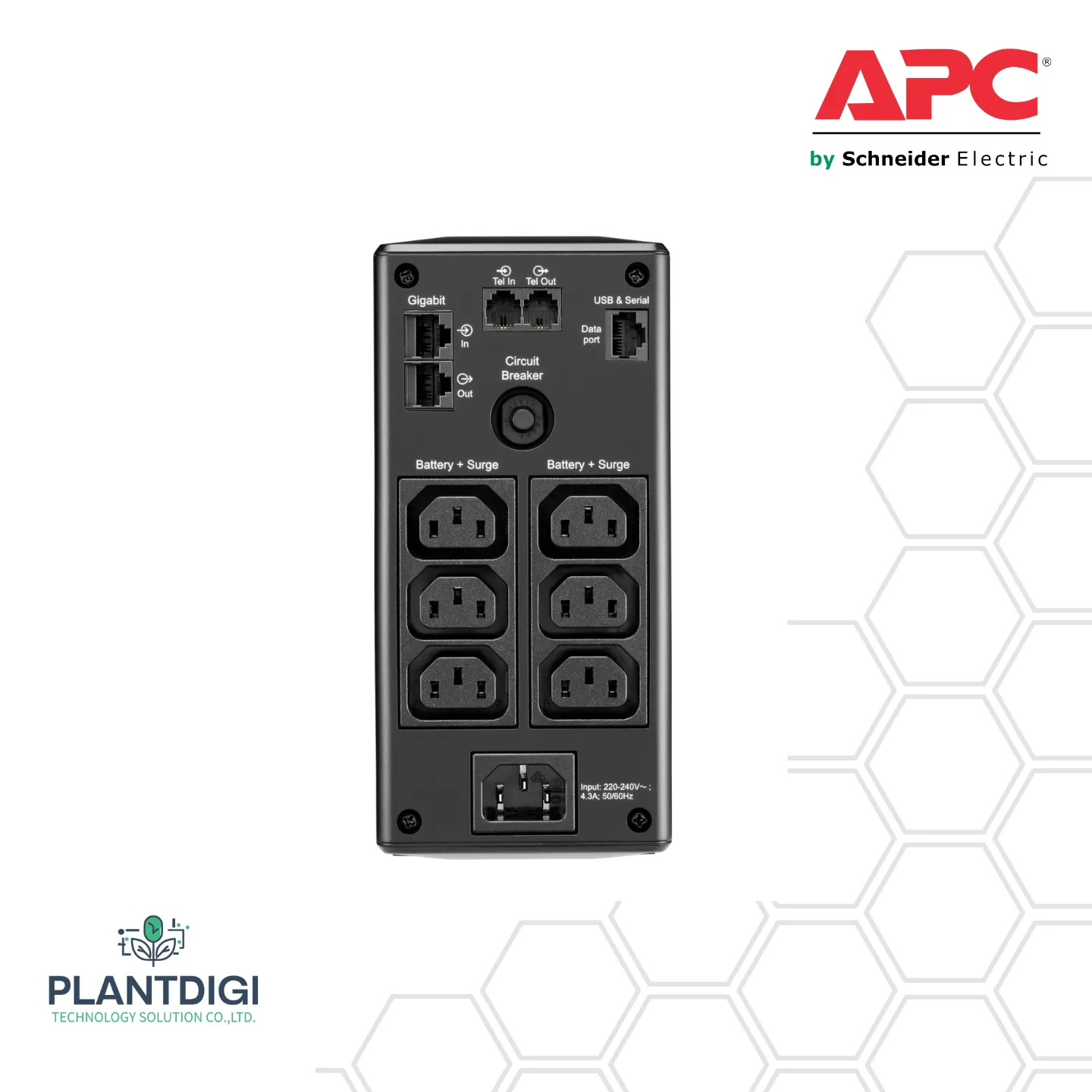

Input Connection Type: IEC 60320 C13
output connection type: 6 IEC 60320 C13
Battery type: Lead-acid battery

—————-
Batteries & Runtime
——————-
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 12 h
Number of battery replacement quantity: 1
Battery voltage: 12 V
Battery capacity: 9.4 Ah
Battery charger power: 11 W rated
Battery life: 3…5 year(s)
Replacement battery: APCRBC164
Extended runtime: 0

————
General
————
Provided equipment: user manual, USB cable
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Height: 19 cm
Width: 9.1 cm
Depth: 31 cm
Net weight: 7.1 kg
Mounting preference: No preference
mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: No

—–
Input
—–
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits: 176…294 V
Maximum input current: 10 A
Switching current capacity: 10 A

——-
Output
——-
Maximum configurable power in W: 540 W
Output frequency: 50/60 Hz +/- 1 Hz sync to mains
UPS type: Line interactive
Wave type: Stepped approximation to a sinewave
Maximum configurable power in VA: 900 VA
Transfer time: 10 ms typical : 12 ms maximum

————
Conformance
————
Product certifications: A-Tick, C-Tick, CE, EAC, RCM, TISI
marking: GS Mark
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 %
Storage altitude: 0.0000000000…15240.0000000000 m
acoustic level: 45 dBA
Heat dissipation: 16.4 Btu/h

—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

——————————–
Surge Protection and Filtering
——————————–
Noise suppression: Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 25.5 cm
Package 1 Width: 14.3 cm
Package 1 Length: 44 cm
Package 1 Weight: 8 kg
SCC14: 10731304346941

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace, 3 years repair or replace for European Union countries
