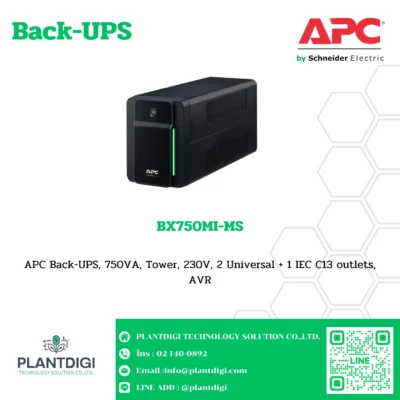

เครื่องสำรองไฟ APC Back-UPS รุ่น BX750MI-MS

APC BX750MI-MS

APC Back-UPS, 750VA, Tower, 230V, 2 Universal + 1 IEC C13 outlets, AVR

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 410 W
ต่ำสุด-สูงสุด: 41-410 W 0min 43s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Rated power in W: 410 W
Rated power in VA: 750 VA
Product or component type: Uninterruptible power supply (UPS)
output connection type: 2 universal, 1 IEC 60320 C13
Cable length: 1.2 m
Number of cables: 1
Battery type: Lead-acid battery

—————-
Batteries & Runtime
——————-
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 8 h
Battery voltage: 12 V
Battery life: 3…5 year(s)
Replacement battery: RBC17
Battery graph comments: Curve fit to measured runtime data. All measurements taken with new, fully charged batteries, at typical environmental conditions, with no electrical input and balanced resistive load (PF = 1.0) output.
Extended runtime: 0

————
General
————
Provided equipment: user manual
Number of power module free slots: 0
Number of power module filled slots: 0
Redundant: No

———
Physical
———
Colour: Black
Height: 16 cm
Width: 12 cm
Depth: 35.5 cm
Net weight: 5.4 kg
Mounting preference: No preference
mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: No

—–
Input
—–
Network frequency: 50/60 Hz +/- 5 Hz auto-sensing
Input voltage limits: 140…300 V
Input Power Factor at Full Load: 0.63

——-
Output
——-
Maximum configurable power in W: 410 W
Output frequency: 50/60 Hz +/- 1 Hz sync to mains
UPS type: Line interactive
Wave type: Stepped approximation to a sinewave
Full load runtime: 00:01:00 390 W
Half load runtime: 00:08:30 195 W
Maximum configurable power in VA: 750 VA
Transfer time: 6 ms typical : 10 ms maximum

————
Conformance
————
Product certifications: CE
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018
Equipment protection policy: Lifetime : 50000 euros

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0…3000 m
Ambient air temperature for storage: -15…40 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0…3000 m
acoustic level: 40 dBA
IP degree of protection: IP20

—————————
Communications & Management
—————————
Control panel: LED Status display with on line : on battery

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 273 J

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 25 cm
Package 1 Width: 43 cm
Package 1 Length: 19.7 cm
Package 1 Weight: 5.9 kg
SCC14: 10731304410697

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace
