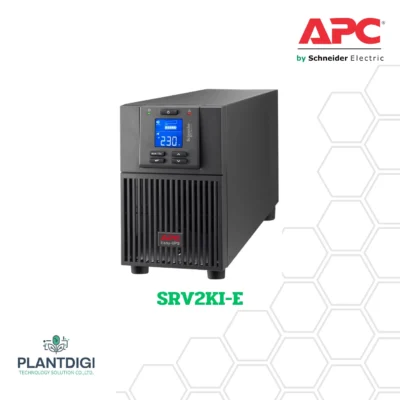

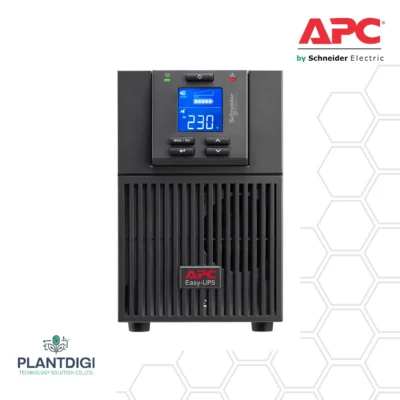

เครื่องสำรองไฟ APC Easy UPS On-Line SRV รุ่น SRV2KI-E

APC SRV2KI-E

APC Easy UPS On-Line, 2000VA/1800W, Tower, 230V, 4x IEC C13 outlets, Intelligent Card Slot, LCD

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 1800 W
ต่ำสุด-สูงสุด: 180-1800 W 3min 4s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Product or component type: Uninterruptible power supply (UPS)
Other Input Voltage: 220 V , 240 V
Main Output Voltage: 230 V
Other Output Voltage: 220 V , 240 V
Rated power in W: 1800 W
Rated power in VA: 2000 VA

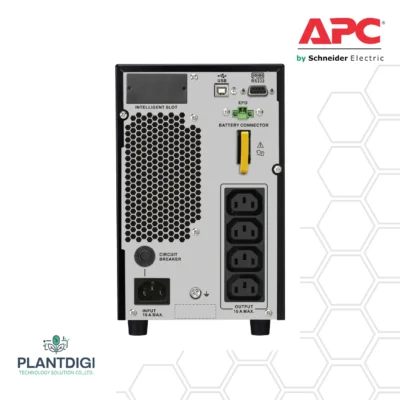

Input Connection Type: IEC 60320 C14
output connection type: 4 IEC 60320 C13
Cable length: 1.5 m
Number of cables: 1
Provided equipment: 1 IEC 60320 C13 to Schuko power cable, 1 IEC 60320 C13 to C14 power cable, 1 USB cable, 1 RS-232 configuration cable, user manual
Range of product: Easy UPS On-Line

—————-
Batteries & Runtime
——————-
Battery type: Lead-acid battery
Battery voltage: 48 V
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 4 h
Battery life: 3…5 year(s)
Replacement battery: APCRBCV204
Battery charger power: 70 W rated

————
General
————
Max runtime: 3 min
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black (RAL 7010)
Height: 23.8 cm
Width: 14.5 cm
Depth: 40 cm
Net weight: 17.0 kg
mounting location: Front
Mounting preference: No preference
mounting mode: Not rack-mountable
USB compatible: Yes
mounting position: Vertical

—–
Input
—–
Input voltage limits: 110…285 V half load, 180…285 V full load
Network frequency: 40…70 Hz auto sensing

——-
Output
——-
Maximum configurable power in VA: 2000 VA
Maximum configurable power in W: 1800 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion: 3 %
UPS type: Double conversion online
Wave type: Sine wave
Efficiency: 88 % (full load)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage
Bypass type: Internal bypass (automatic and manual)
Crest factor: 3 : 1

————
Conformance
————
Product certifications: CE, UKCA, TISI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0…3000 m
Ambient air temperature for storage: -20…50 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0…15000 m
acoustic level: 50 dBA
Heat dissipation: 759 Btu/h
IP degree of protection: IP20

—————————-
Communications & Management
—————————-
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Free slots: 1
Control panel: Multifunction LCD status and control console

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 945 J

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 35.5 cm
Package 1 Width: 52.5 cm
Package 1 Length: 23.5 cm
Package 1 Weight: 18.9 kg

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace
