เครื่องสำรองไฟ APC SRT รุ่น SRT1500XLI

APC SRT1500XLI

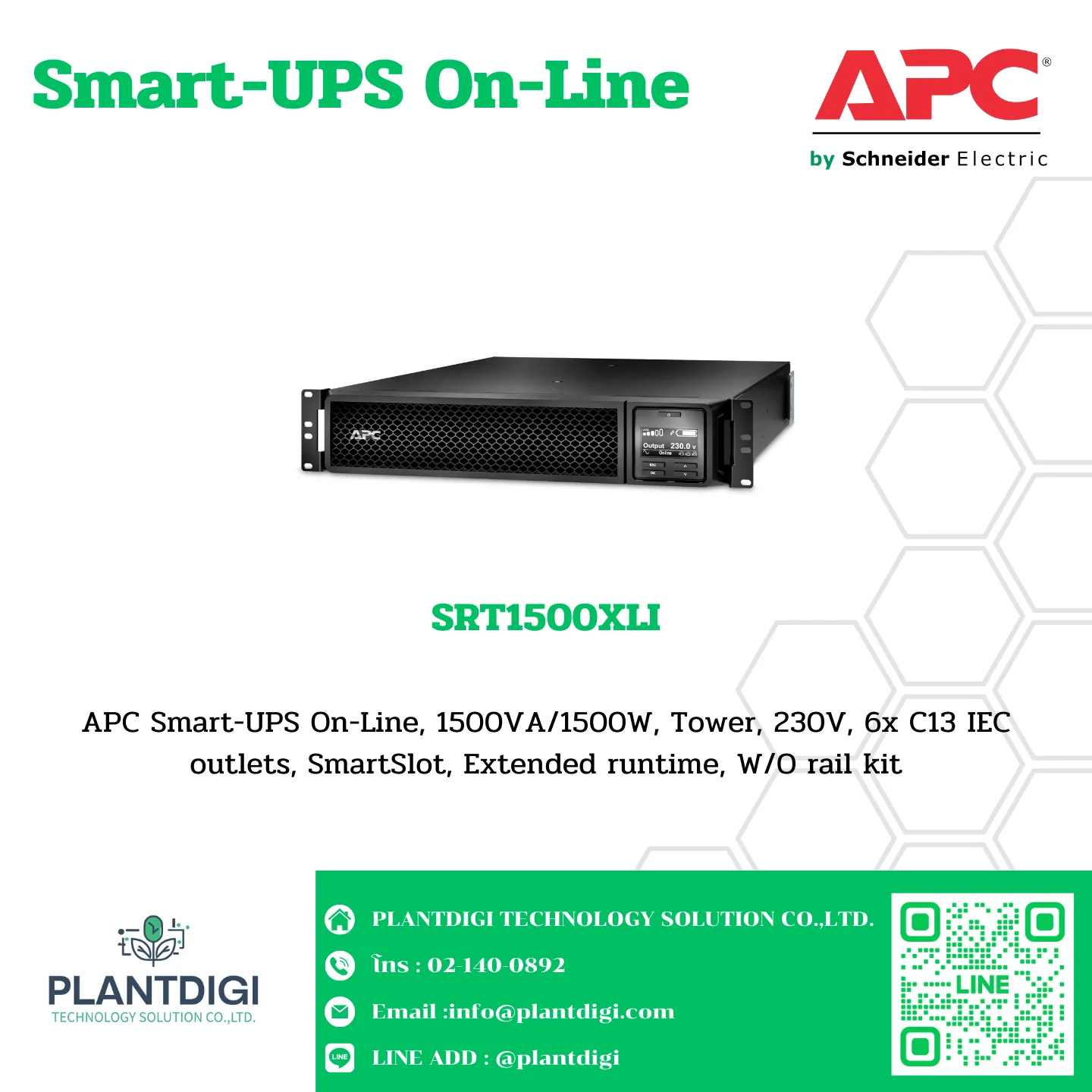

APC Smart-UPS On-Line, 1500VA/1500W, Tower, 230V, 6x C13 IEC outlets, SmartSlot, Extended runtime, W/O rail kit

———
Overview
———–
Presentation: High density, double-conversion on-line power protection with scalable runtime.

Specifications

——————-

Batteries & Runtime
——————-
รันไทม์View Runtime Graph
Battery type: Lead-acid battery
Number of battery filled slots: 1
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery voltage: 48 V
Battery charger power: 108 W rated
Battery life: 3…5 year(s)
Replacement battery: APCRBC155
Extended runtime: 1

————
General
————
UPS type: Double conversion online
product web sub-family: High density
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black
Height: 43.2 cm
Width: 8.5 cm
Depth: 50.5 cm
Net weight: 20.5 kg
Mounting preference: No preference
mounting mode: Rack-mounted with kit
Two post mountable: 0
USB compatible: Yes
mounting position: Vertical

—–
Input
—–
Network frequency: 40…70 Hz auto-sensing
Input voltage limits: 100…275 V

——-
Output
——-
Maximum configurable power in VA: 1500 VA
Maximum configurable power in W: 1500 W
Output frequency: 50/60 Hz +/- 3 Hz sync to mains
Wave type: Sine wave
Harmonic distortion: Less than 2 %
Crest factor: 3 : 1
Bypass type: Built-in bypass

————
Conformance
————
Product certifications: CE, EAC, UK PSTI
Standards: EN/IEC 62040-1:2019/A11:2021
EN/IEC 62040-2:2006/AC:2006
EN/IEC 62040-2:2018

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 %
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -20…50 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.0000000000…15240.0000000000 m
acoustic level: 50 dBA
Heat dissipation: 317 Btu/h
IP degree of protection: IP20

—————————-
Communications & Management
—————————-
Free slots: 1
Alarm: Audible and visible alarms : prioritized by severity
Emergency power off: Yes

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 432 J

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 24.5 cm
Package 1 Width: 69.0 cm
Package 1 Length: 59.5 cm
Package 1 Weight: 32.58 kg

——————–
Contractual warranty
——————–
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
