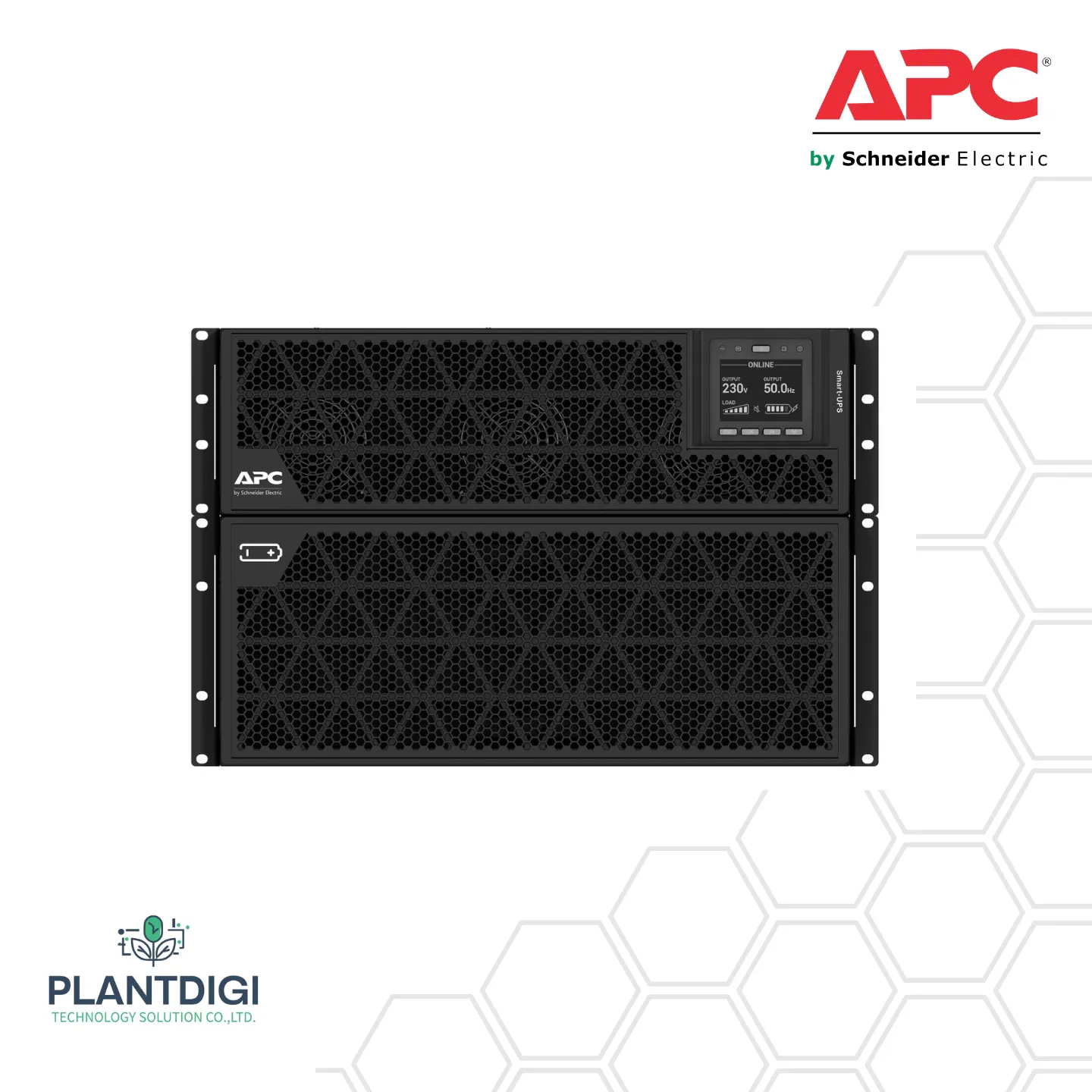

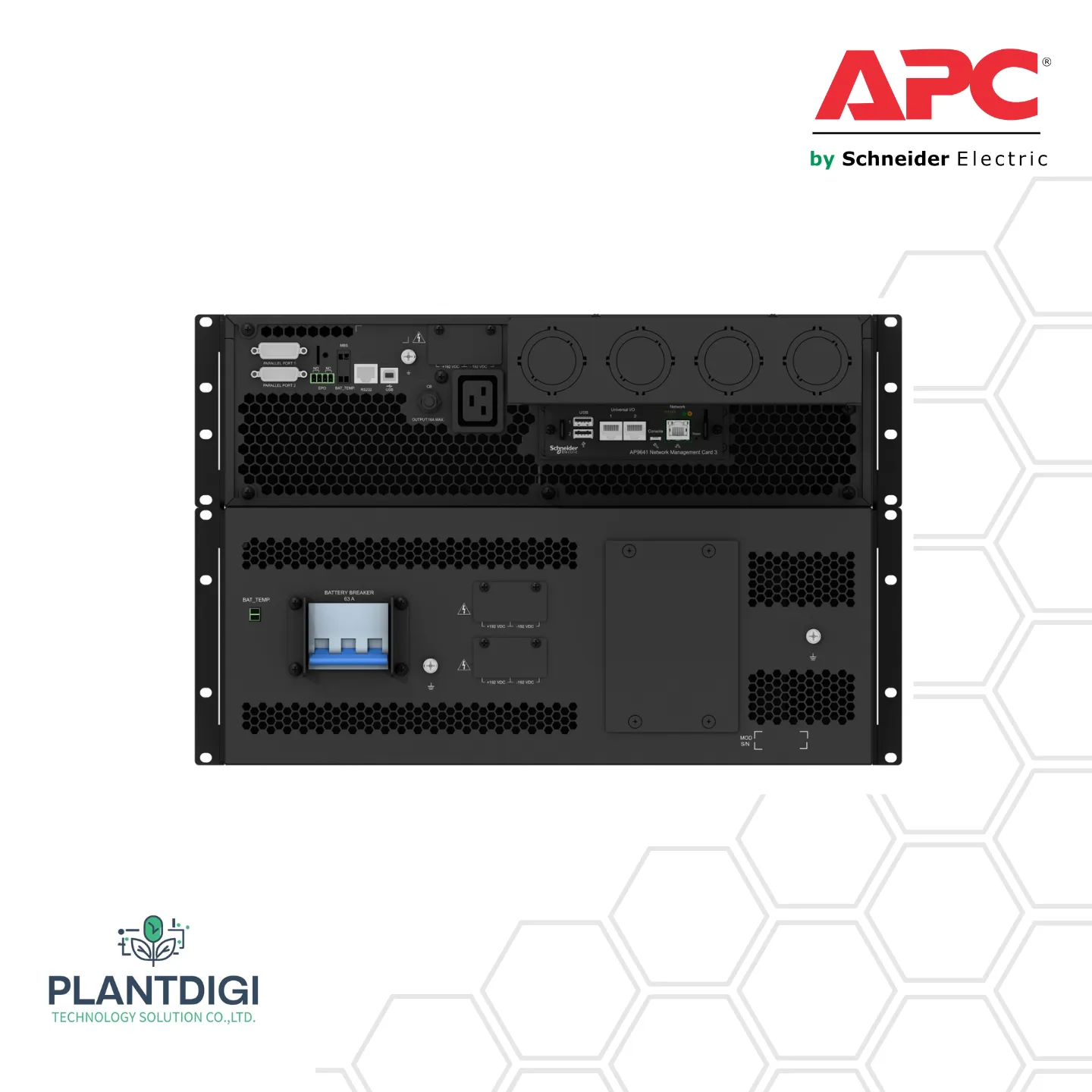

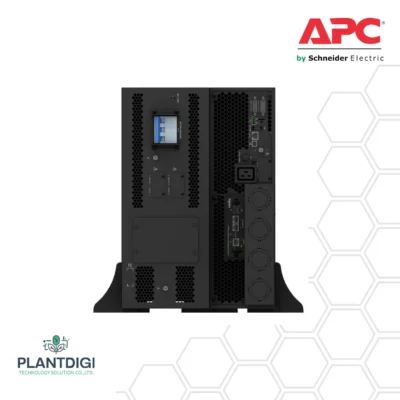

เครื่องสำรองไฟ APC SRTG รุ่น SRTG20KXLI

APC SRTG20KXLI

APC Smart-UPS On-Line, 20kVA/20kW, Rack/Tower, 230V/380V…415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 20000 W
ต่ำสุด-สูงสุด: 2000-20000 W 3min 1s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 380…415 V 3 phases , 230 V
Product or component type: Uninterruptible power supply (UPS)
Other Input Voltage: 220…240 V
Main Output Voltage: 380…415 V 3 phases , 230 V 1 phase
Other Output Voltage: 230 V
Rated power in W: 20000 W
Rated power in VA: 20000 VA
Output connector type: Hard wire 5 wire (3P + N + E) 1, Hard wire 3-wire (1P + N + E) 1, IEC connector 3-wire (1P + N + E) 1
number of rack unit: 7U
Provided equipment: 1 x USB cable, 1 x rack mounting brackets, 1 x stabilization/wall mounting feet, 1 x installation manual
Range of product: Smart-UPS On-Line

—————-
Batteries & Runtime
——————-
Battery type: Lead-acid battery
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 4 h
Number of battery replacement quantity: 2
Battery voltage: +/- 192 V
Battery charger power: 2160 W rated
Battery life: 3…5 year(s)
Extended runtime: 1

————
General
————
UPS type: Double conversion online
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black (RAL 9005)
Height: 30.6 cm
Width: 44.0 cm
Depth: 70.0 cm
Net weight: 142.5 kg
mounting location: Front
Mounting preference: Lower
mounting mode: Rack-mounted
Two post mountable: 0
USB compatible: Yes
mounting position: Horizontal

—–
Input
—–
Network frequency: 40…70 Hz auto-sensing
Number of input connectors: 1 hard wire 5 wire (3P + N + E), 1 hard wire 3-wire (1P + N + E)
Input voltage limits: 160…285 V full load, 380 V 380…415 V
Maximum input current: 87 A
Switching current capacity: 125 A
Input harmonic distortion: Less than 5 % for full load
Input current: 87 A
Load power factor: From 0.9 leading to 1 lagging

——-
Output
——-
Maximum configurable power in VA: 20000 VA
Maximum configurable power in W: 20000 W
Output frequency: 50/60 Hz +/- 4 Hz sync to mains
Wave type: Sine wave
Output overload operation: 60 seconds at 125% and 30 seconds at 150%
Efficiency: 94 %
Harmonic distortion: Less than 5 %
Crest factor: 3 : 1
Bypass type: Internal bypass (automatic and manual)
Additional information: Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage

————
Conformance
————
Product certifications: CE, UKCA, TISI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 60204-2

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0…3000 m
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0…15000 m
acoustic level: 58 dBA
Heat dissipation: 3821 Btu/h
IP degree of protection: IP20

—————————-
Communications & Management
—————————-
Free slots: 0
Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off: Yes

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 600 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 53.5 cm
Package 1 Width: 79.0 cm
Package 1 Length: 59.0 cm
Package 1 Weight: 157.2 kg

——————–
Contractual warranty
——————–
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
