เครื่องสำรองไฟ APC SMC รุ่น SMC3000I

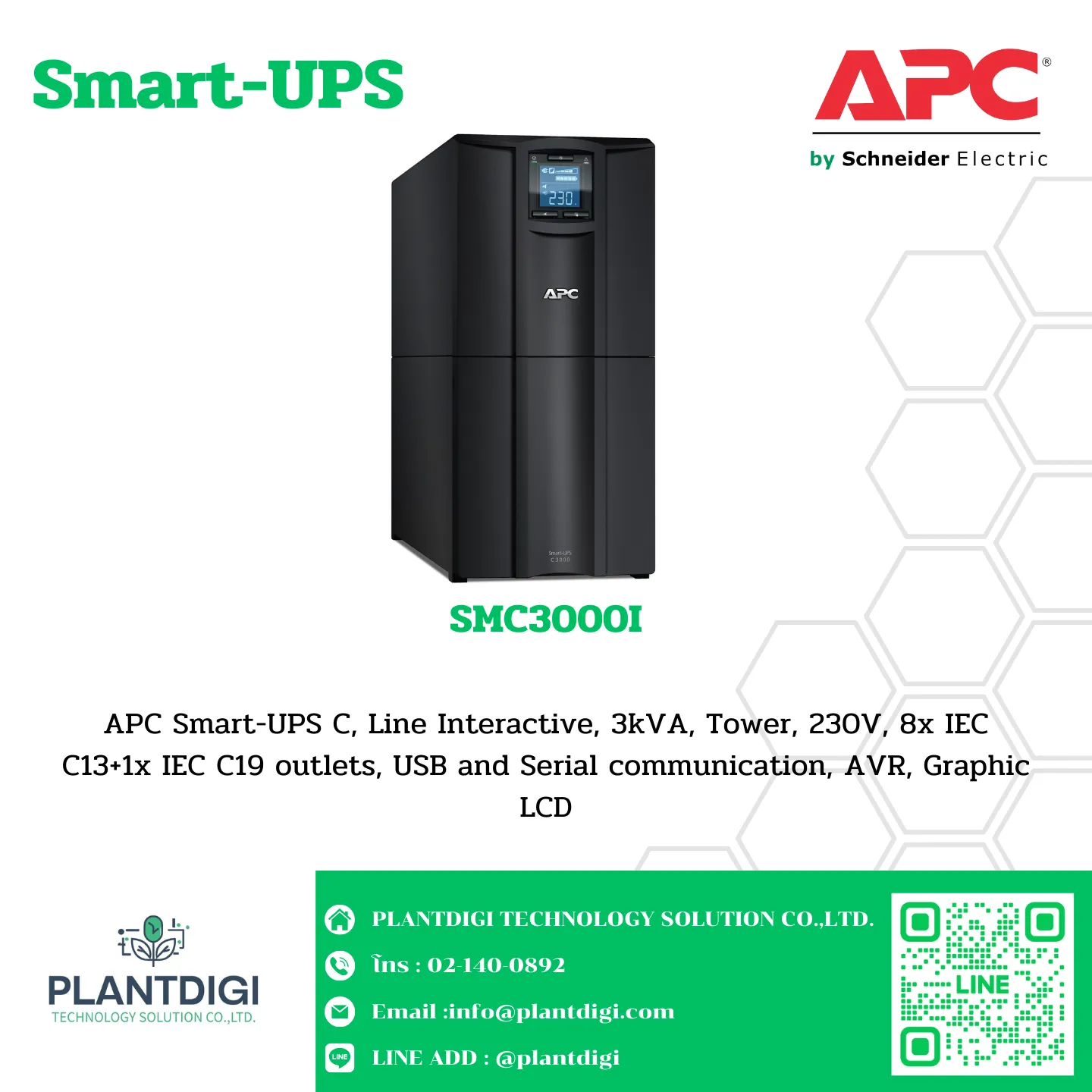

APC SMC3000I

APC Smart-UPS C, Line Interactive, 3kVA, Tower, 230V, 8x IEC C13+1x IEC C19 outlets, USB and Serial communication, AVR, Graphic LCD

———
Overview
———–
Presentation:Intelligent and efficient network power protection from entry level to scalable runtime. Ideal UPS for servers, point-of-sale, routers, switches, hubs and other network devices.
Lead time :Usually Ships within 2 Weeks

————-
Main
————–
รันไทม์สําหรับโหลด: 2100 W
ต่ำสุด-สูงสุด: 210-2100 W 5min 8s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Other Input Voltage: 220 V 240 V
Main Output Voltage: 230 V
Rated power in W: 2100 W
Rated power in VA: 3000 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: IEC 320 C20
output connection type: 8 IEC 320 C13, 1 IEC 320 C19
number of rack unit: 0U
Battery type: Lead-acid battery
Provided equipment: CD with software, Documentation CD, USB cable
Range of product: Smart-UPS

—————-
Batteries & Runtime
——————-
รันไทม์ View Runtime Graph
Extended runtime: 0
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 3 h
Number of battery replacement quantity: 1
Battery life: 3…5 year(s)
Replacement battery: APCRBC150
Battery charger power: 183 W rated

————-
General
————
Number of power module filled slots: 0
Number of power module free slots: 0
product web sub-family: Entry level
Redundant: No

———
Physical
———
Colour: Black
Height: 43.5 cm
Width: 19.7 cm
Depth: 54.4 cm
Net weight: 43 kg
mounting location: Front
Mounting preference: No preference
mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: Yes

—–
Input
—–
Input voltage limits: 170…300 V adjustable
180…287 V
Network frequency: 47…63 Hz

——-
Output
——-
Harmonic distortion: Less than 5 % at full load
Maximum configurable power in VA: 3000 VA
Maximum configurable power in W: 2100 W
Transfer time: 8 ms typical : 10 ms maximum
UPS type: Line interactive
Wave type: Sine wave
Output frequency: 50 Hz sync to mains

————
Conformance
————
Product certifications: C-Tick, CE, EAC, GOST, SABS, VDE, UK PSTI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:20188

————-
Environmental
————-
acoustic level: 45 dBA
Heat dissipation: 135 Btu/h
Operating altitude: 0…10000 ft
Ambient air temperature for operation: 0…40 °C
Ambient air temperature for storage: -15…45 °C
Storage altitude: 0.0000000000…15240.0000000000 m
Relative humidity: 0…95 %
Storage Relative Humidity: 0…95 %

—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Free slots: 0
Alarm: Alarm when on battery : distinctive low battery alarm : configurable delays

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 300 J
Noise suppression: Full time multi-pole noise filtering : 0.3% IEEE surge let-through : zero clamping response time : meets UL 1449

—————
Packing Units
—————
Unit Type of Package 1:PCE
Number of Units in Package 1: 1
Package 1 Height: 76.2 cm
Package 1 Width: 69.9 cm
Package 1 Length: 38.1 cm
Package 1 Weight: 51 kg

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace

สอบถามค่าติดตั้ง Service Installation
