เครื่องสำรองไฟ APC Back-UPS Pro รุ่น BR1600MI

APC BR1600MI

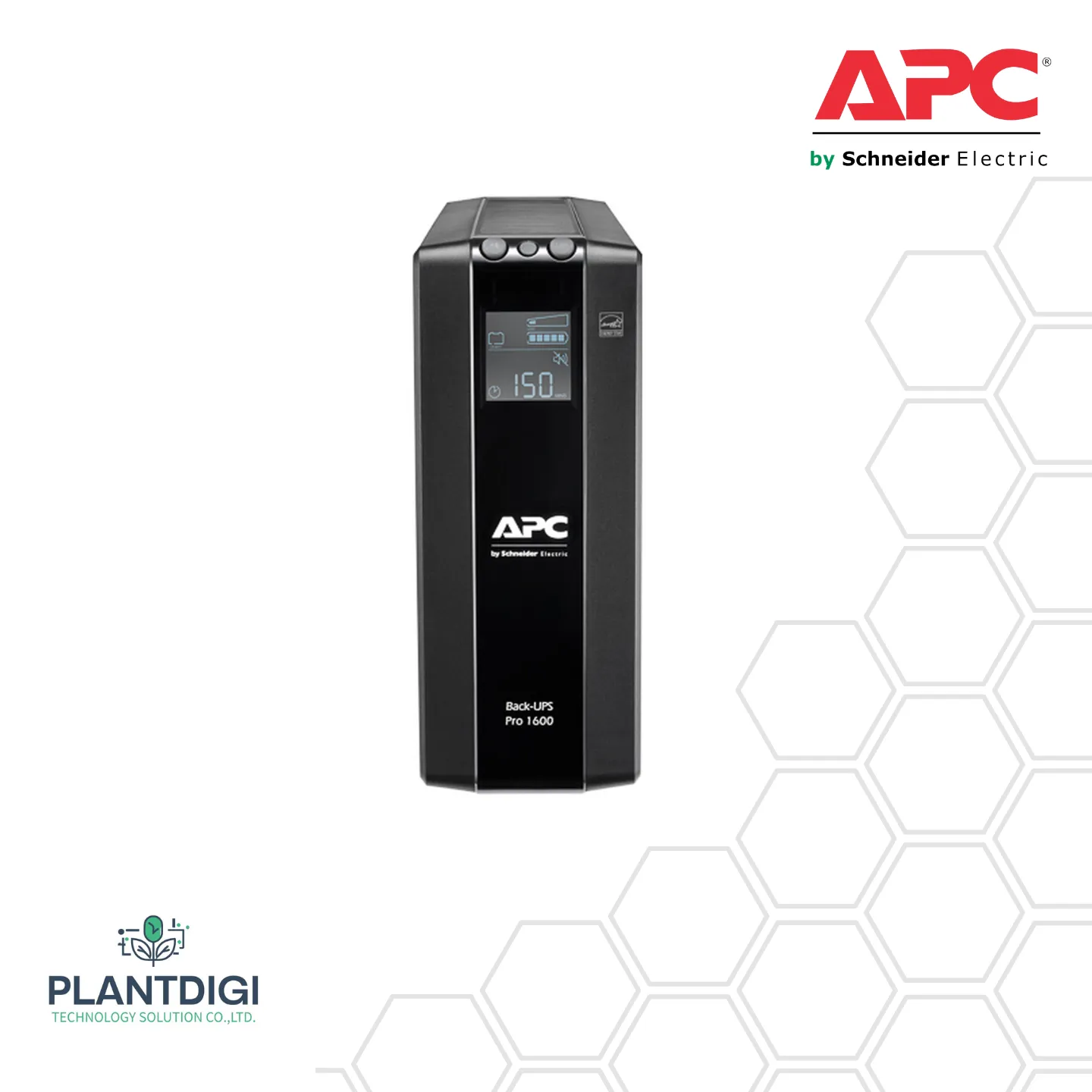

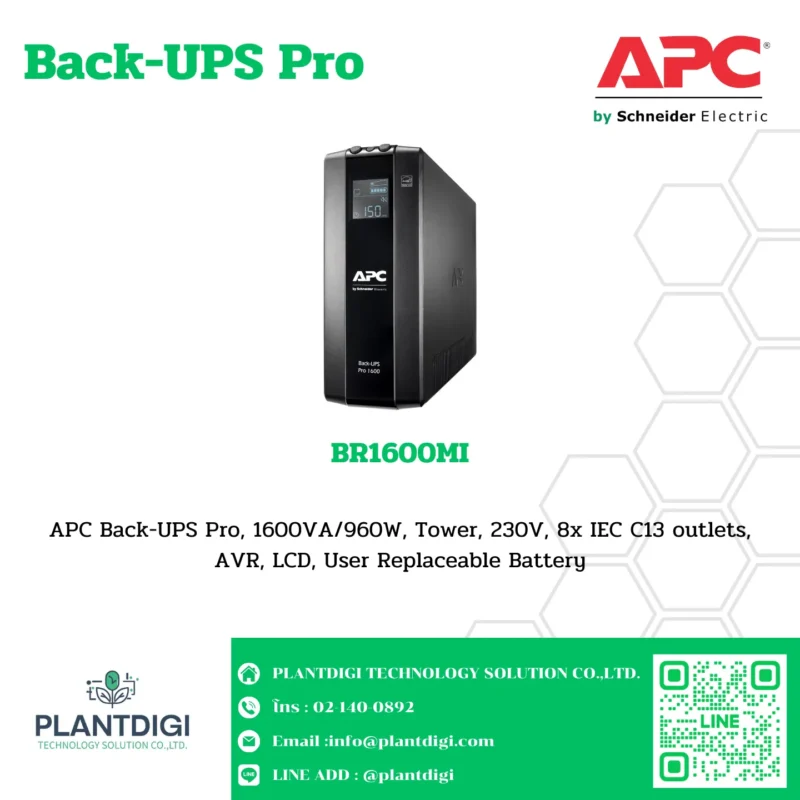

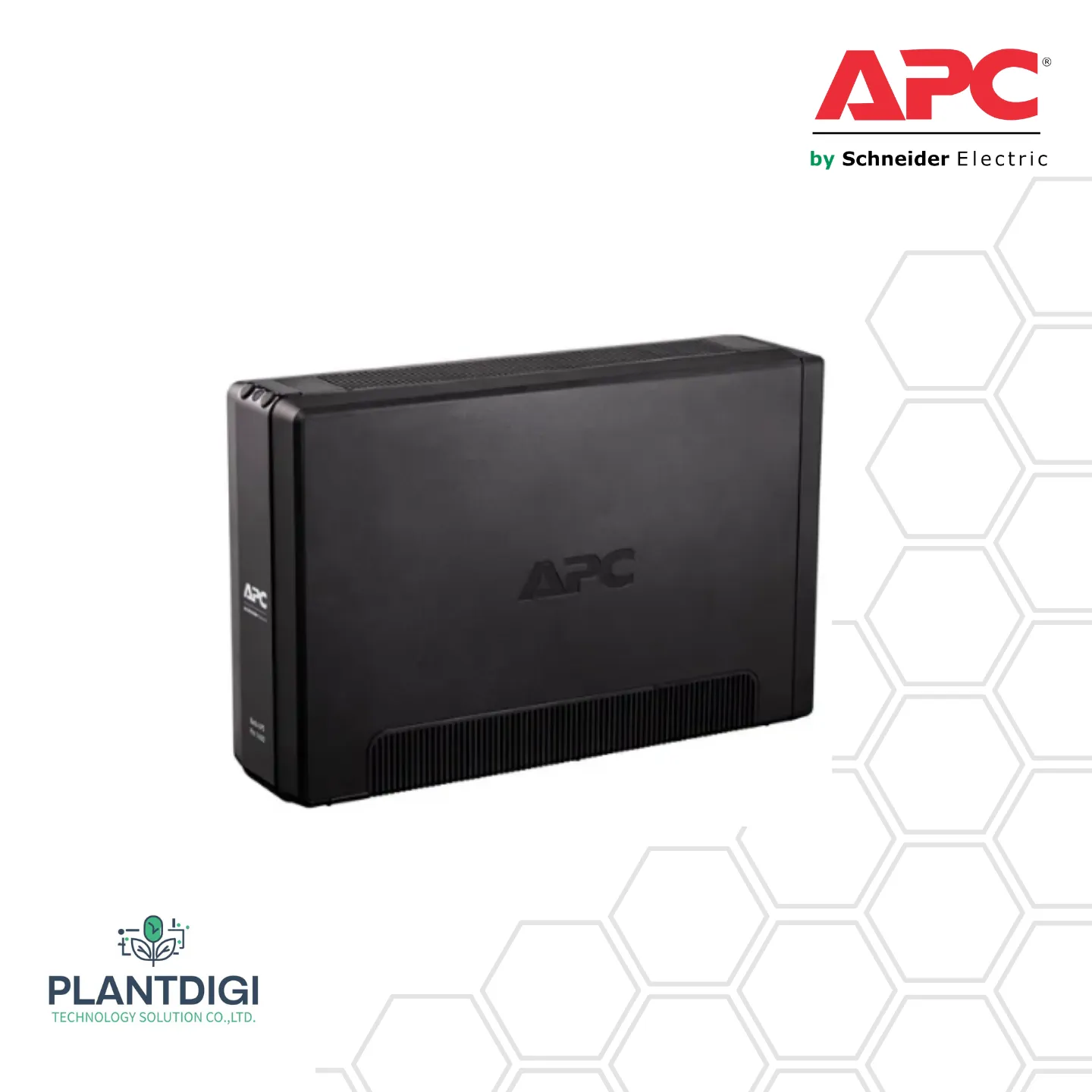

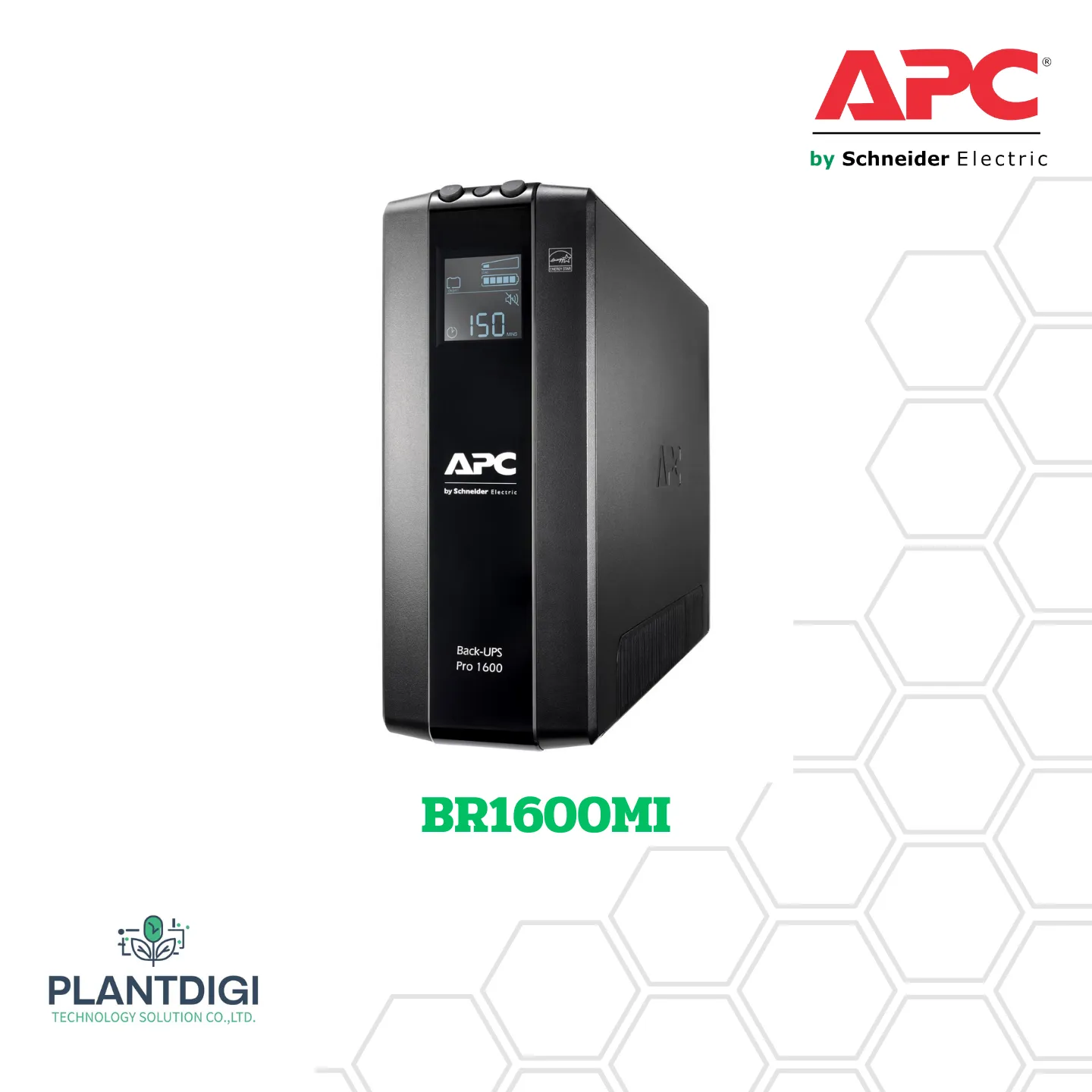

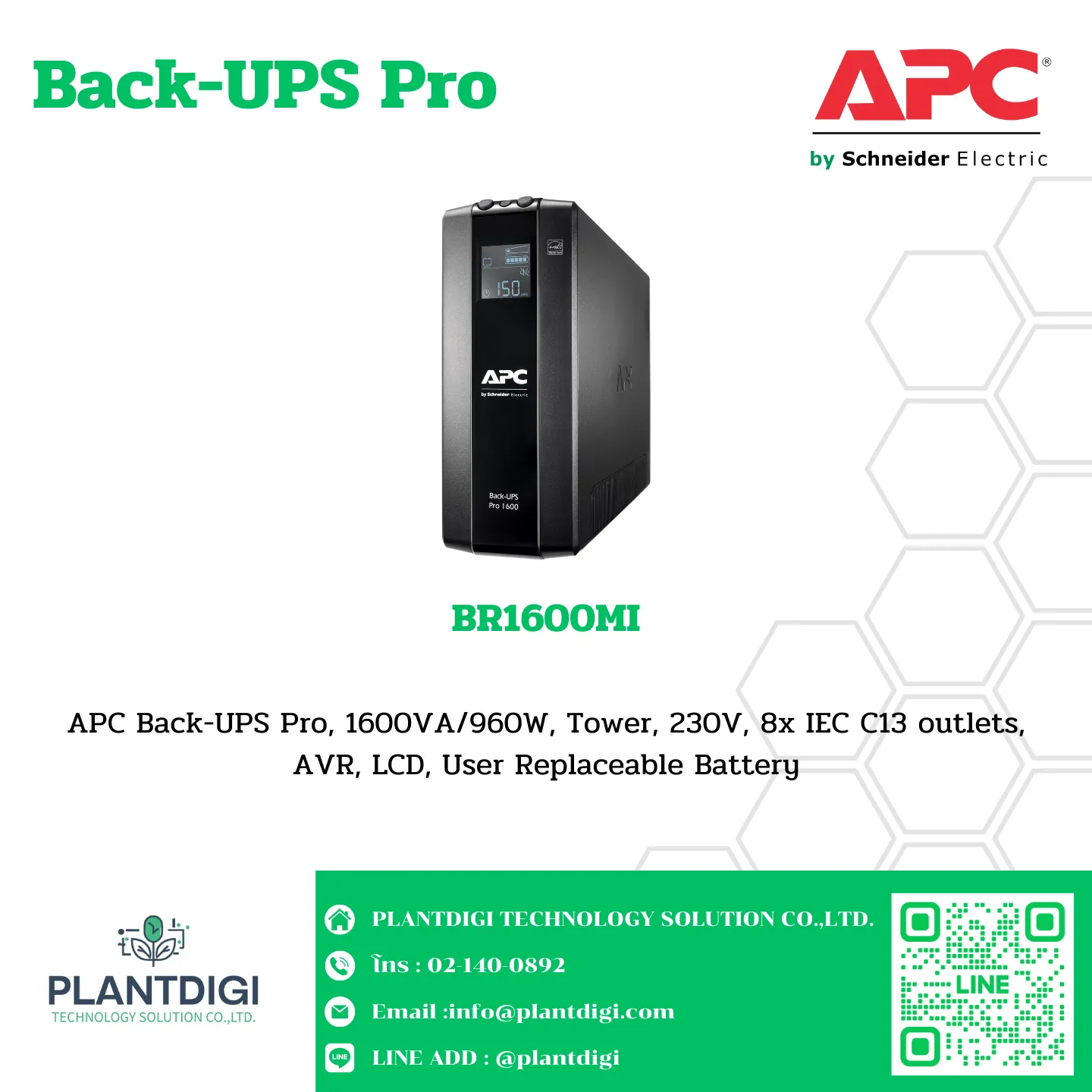

APC Back-UPS Pro, 1600VA/960W, Tower, 230V, 8x IEC C13 outlets, AVR, LCD, User Replaceable Battery

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 960 W
ต่ำสุด-สูงสุด: 96-960 W 2min 38s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Main Output Voltage: 230 V
Rated power in W: 960 W
Rated power in VA: 1600 VA
Product or component type: Uninterruptible power supply (UPS)
Input Connection Type: IEC 60320 C13

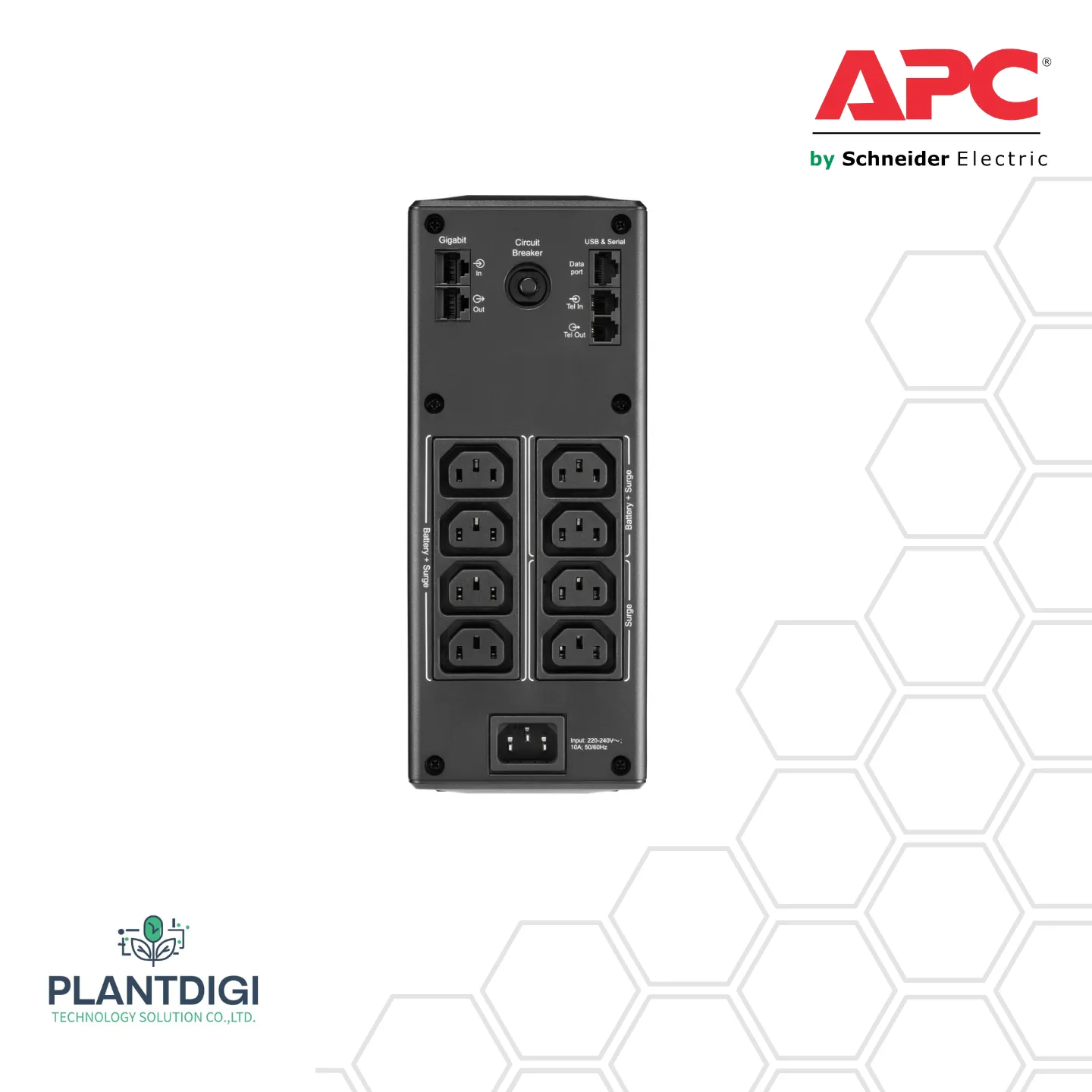

output connection type: 6 IEC 60320 C13, 2 IEC 60320 C13 surge
Battery type: Lead-acid battery

—————-
Batteries & Runtime
——————-
Number of battery filled slots: 0
Number of battery free slots: 0
Battery recharge time: 16 h
Number of battery replacement quantity: 1
Battery voltage: 24 V
Battery capacity: 9.0 Ah
Battery charger power: 11 W rated
Battery life: 3…5 year(s)
Replacement battery: APCRBC166
Extended runtime: 0

————
General
————
Provided equipment: user manual, USB cable
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black
Height: 10 cm
Width: 25 cm
Depth: 38.2 cm
Net weight: 10.9 kg
Mounting preference: No preference
mounting mode: Not rack-mountable
Two post mountable: 0
USB compatible: No

—–
Input
—–
Network frequency: 50/60 Hz +/- 3 Hz auto-sensing
Input voltage limits: 156…300 V adjustable, 176…294 V
Maximum input current : 10 A
Switching current capacity: 10 A

——-
Output
——-
Maximum configurable power in W: 960 W
Output frequency: 50/60 Hz +/- 1 Hz sync to mains
UPS type: Line interactive
Maximum configurable power in VA: 1600 VA

————
Conformance
————
Product certifications: A-Tick, C-Tick, CE, EAC, RCM, TISI
marking: GS Mark
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0…10000 ft
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0.0000000000…15240.0000000000 m
acoustic level: 45 dBA
Heat dissipation: 21.5 Btu/h

—————————-
Communications & Management
—————————-
Control panel: Multifunction LCD status and control console
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 509 J
Noise suppression: Full time multi-pole noise filtering : 10% of IEEE surge let-through : zero clamping response time: instantaneous

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 33 cm
Package 1 Width: 22.5 cm
Package 1 Length: 48.5 cm
Package 1 Weight: 11.65 kg
SCC14: 10731304346910

——————–
Contractual warranty
——————–
Warranty: 2 years repair or replace, 3 years repair or replace for European Union countries
