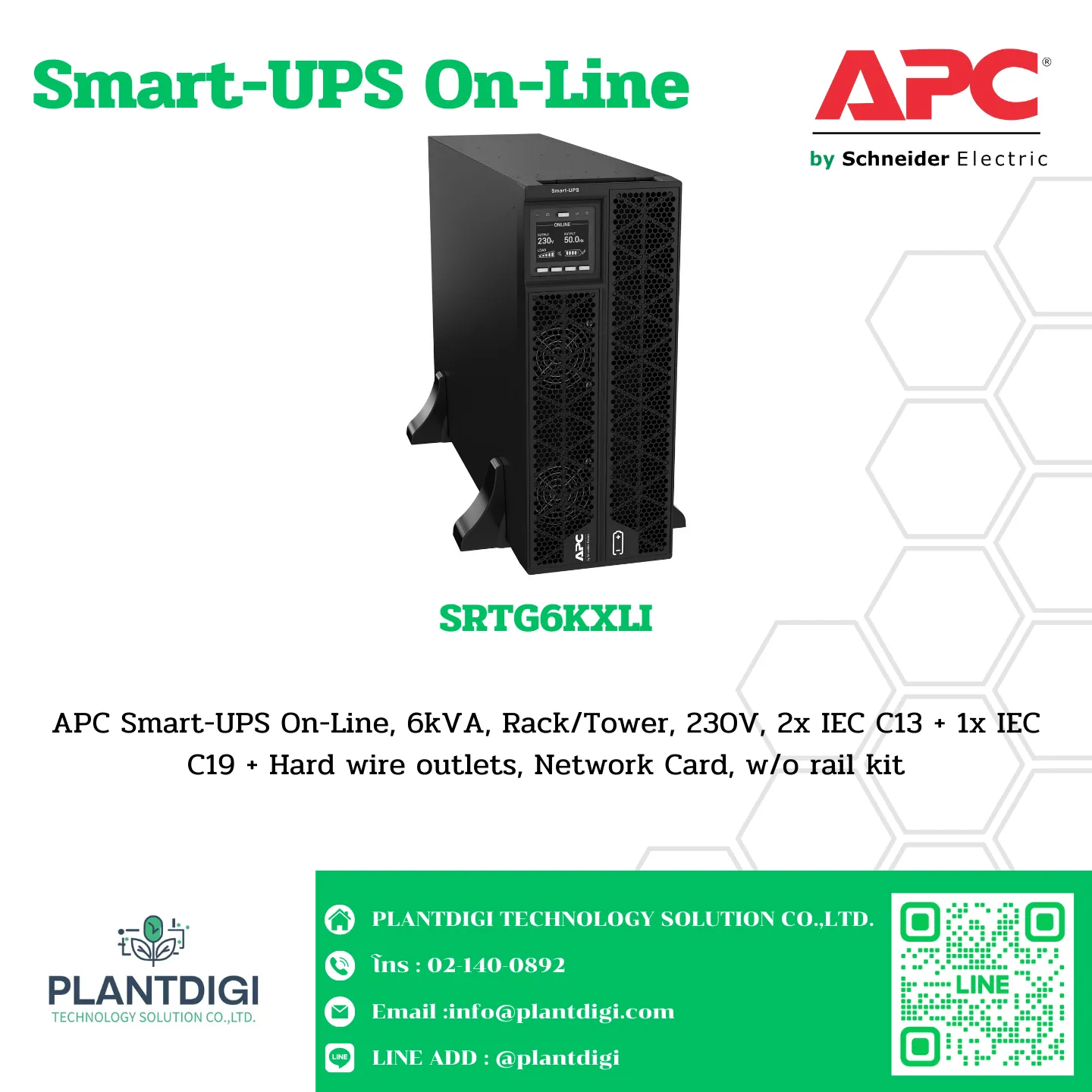

เครื่องสำรองไฟ APC SRTG รุ่น SRTG6KXLI

APC SRTG6KXLI

APC Smart-UPS On-Line, 6kVA, Rack/Tower, 230V, 2x IEC C13 + 1x IEC C19 + Hard wire outlets, Network Card, w/o rail kit

Specifications

————-
Main
————–
รันไทม์สําหรับโหลด 6000 W
ต่ำสุด-สูงสุด: 600-6000 W 1min 31s
ความจุสูงสุดที่ใช้: 100 %
Main Input Voltage: 230 V
Product or component type: Uninterruptible power supply (UPS)
Other Input Voltage: 220 V , 240 V
Main Output Voltage: 230 V
Other Output Voltage: 220 V , 240 V
Rated power in W: 6000 W
Rated power in VA: 6000 VA
output connection type: 2 IEC 60320 C13, 1 IEC 60320 C19
Output connector type: Hard wire 3-wire (H N + E) 1
number of rack unit: 4U
Provided equipment: 1 x USB cable, 1 x rack mounting brackets, 1 x stabilization/wall mounting feet, 1 x installation manual, 1 x C13-C14 power cord
Range of product: Smart-UPS On-Line

—————-
Batteries & Runtime
——————-
Battery type: Lead-acid battery
Number of battery filled slots: 2
Number of battery free slots: 0
Battery recharge time: 4 h
Number of battery replacement quantity: 1
Battery voltage: +/- 96 V
Battery charger power: 239 W rated
Battery life: 3…5 year(s)
Extended runtime: 1

————
General
————
UPS type: Double conversion online
Number of power module filled slots: 0
Number of power module free slots: 0
Redundant: No

———
Physical
———
Colour: Black (RAL 9005)
Height: 17.5 cm
Width: 44 cm
Depth: 62 cm
Net weight: 55.9 kg
Mounting preference: No preference
mounting mode: Rack-mounted with kit
Two post mountable: 0
USB compatible: Yes
mounting position: Horizontal

—–
Input
—–
Network frequency: 40…70 Hz auto-sensing
Number of input connectors: 1 hard wire 3-wire (1P + N + E)
Input voltage limits: 160…285 V full load
Maximum input current: 30 A
Switching current capacity: 40 A

——-
Output
——-
Maximum configurable power in VA: 6000 VA
Maximum configurable power in W: 6000 W
Output frequency: 50/60 Hz +/- 4 Hz sync to mains
Wave type: Sine wave
Efficiency: 93.5 %
Harmonic distortion: Less than 2 %
Crest factor: 3 : 1
Bypass type: Internal bypass (automatic and manual)
Additional information: Configurable for 220 : 230 or 240 nominal output voltage

————
Conformance
————
Product certifications: CE, UKCA, TISI
Standards: EN/IEC 62040-1:2019/A11:2021, EN/IEC 62040-2:2006/AC:2006, EN/IEC 62040-2:2018

————-
Environmental
————-
Ambient air temperature for operation: 0…40 °C
Relative humidity: 0…95 % non-condensing
Operating altitude: 0…3000 m
Ambient air temperature for storage: -15…45 °C
Storage Relative Humidity: 0…95 % non-condensing
Storage altitude: 0…15000 m
acoustic level: 55 dBA
Heat dissipation: 1330.74 Btu/h
IP degree of protection: IP20

—————————-
Communications & Management
—————————-
Preinstalled device: Network management card 3 with environmental monitoring
Alarm: Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Emergency power off: Yes

——————————–
Surge Protection and Filtering
——————————–
Surge energy rate: 600 J

—————
Packing Units
—————
Unit Type of Package 1: PCE
Number of Units in Package 1: 1
Package 1 Height: 27.5 cm
Package 1 Width: 79 cm
Package 1 Length: 59 cm
Package 1 Weight: 61.8 kg

——————–
Contractual warranty
——————–
Warranty: 3 years repair or replace (excluding battery) and 2 years for battery
