เครื่องสำรองไฟ CyberPower OLS3S15KE 15KVA w/ 40pcs*9AH BAT OLS Series (TOWER)
฿216,990.00
OLS3S15KE 15KVA w/ 40pcs*9AH BAT
2-yrs onsite with battery
***กรณีสั่งซื้อกับทางเราสามารถแจ้งเคลมผ่านกับเราได้เลย
ติดต่อเราเพื่อสั่งซื้อ สอบถาม หรือขอใบเสนอราคา
โทร : 02-140-0892
มือถือ : 089-314-3423
Line ID : @plantdigi
Email : info@plantdigi.com
สั่งจองสินค้าได้

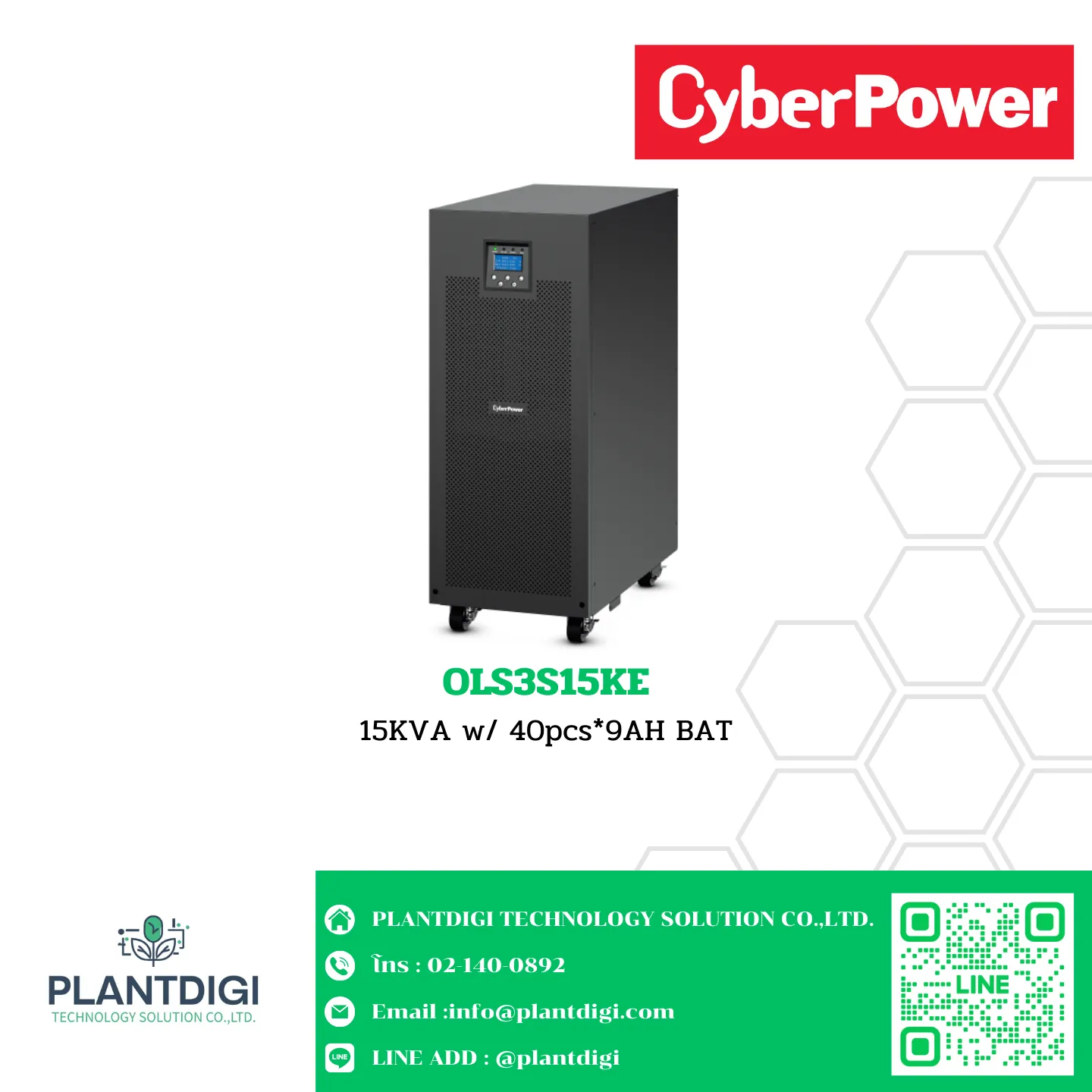

CyberPower OLS3S15KE
15KVA w/ 40pcs*9AH BAT
Online S (3-Phase) CORPORATE ONLINE 3-PHASE UPS TO ACHIEVE POWER REDUNDANCY The 3-Phase UPS that can achieve N+X power redundancy for enterprise applications
——–
General
——–
Phase: Three Phase
Form Factor: Tower
UPS Topology: Online Double Conversion
Energy Saving Technology: ECO Mode Efficiency > 97%
Normal Mode Efficiency ( % ): 94%
Battery Mode Efficiency ( % ): 92%
Active PFC Compatibility: Yes
Parallel Expansion (Max. Units): 4
——
Input
——
Dual Power Inputs: Yes
Generator Compatibility: Yes
Nominal Input Voltage ( Vac ): Line to Neutral (L-N):220, 230, 240 Vac, Line to Line (L-L):380, 400, 415 Vac
Input Voltage Range ( Vac ): Line to Neutral (L-N): 176 ~ 276 Vac, Line to Line (L-L): 305 ~ 478 Vac
Configurable Voltage Range ( Vac ): Line to Neutral (L-N): 110 ~ 276 Vac, Line to Line (L-L): 190 ~ 478 Vac
Input Frequency ( Hz ): 50 ± 5, 60 ± 6
Rated Input Current ( A ): 68.2
Input Power Factor: 0.99
Input Connector Type: Hardwire Terminal Block
——-
Output
——-
Capacity (VA): 15000
Capacity (Watts): 13500
On Battery Waveform: Pure Sine Wave
Output Voltage Setting: Configurable
Output Frequency Setting: Configurable
Rated Output Voltage ( Vac ): Line to Neutral (L-N): 208, 220, 230, 240 Vac
Output Frequency ( Hz ± % ): 50 ± 0.1, 60 ± 0.1
Power Factor: 0.9
ECO Mode Voltage Tolerance: ± 10 %
Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
Overload Protection (Line Mode): 100~110% Load for 5 min, 110~130% Load for 1 min, 130~150% Load for 10 sec, >150% Load for 2 sec
Overload Protection (Battery Mode): 100~110% Load for 1 min, 110~130% Load for 10 sec, >130% Load for 2 sec
Overload Protection (Bypass Mode): >130% Load Immediately
Crest Factor: 3 : 1
Harmonic Distortion (Linear Load): THD＜2%
Harmonic Distortion (Non-linear Load): THD＜5%
Internal Bypass: Automatic Bypass
Maintenance Bypass: Yes
Outlet(s) – Total: 1
Outlet Type: Hardwire Terminal Block x 1
Outlet(s) – Battery & Surge Protected: 1
Typical Transfer Time ( ms ): 0
——–
Battery
——–
Runtime at Half Load ( min ): 15.3
Runtime at Full Load ( min ): 6.4
Runtime at Half Load (For Specific Battery): 15.3mins at18AH
Runtime at Full Load (For Specific Battery): 6.4mins at18AH
Typical Recharge Time ( Hours ): 8
Maximum Charging Current ( A ): 2
Compatible Battery Types: VRLA
Recharge Power ( % ): Default 3.5% (Selectable from 1~5% x UPS Capacity)
Recharge Power Setting: Configurable
Charger Voltage Tolerance ( % ): ≤ 1 %
Start On Battery: Yes
Smart Battery Management (SBM): Yes
Battery Type: Sealed Lead-acid
Battery Solution: Internal Battery
Battery Quantity ( pcs ): 40
Reserved Space for Internal Battery: 40
Battery Voltage ( V ): ±240
Single Battery Capacity ( AH ): 12 V 9 AH
Compatible Extended Battery Module (EBM): BPSE240V82A
Max. EBM Quantity ( pcs ): 15
External Battery Quantity: 12V x 40pcs
—————————–
Surge Protection & Filtering
—————————–
Surge Suppression ( Joules ): 445
EMI/RFI Filtration: Yes
—————————-
Management & Communications
—————————-
LCD Panel: Yes
LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
LED Indicators: Line Mode, Battery Mode, Bypass Mode, UPS Fault
HID Compliant USB Port(s): 1
Dry Contact (with Relay): Optional
Emergency Power Off (EPO) Port: Yes
Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
Management Cable ( pcs ): USB Cable x1
Power Management Software: PowerPanel Business (Recommended)
SNMP/HTTP Remote Monitoring: Yes – with optional RMCARD205
———
Physical
———
Enclosure Construction: Metal
Color: Black
Ingress Protection: IP20
—————————
Physical Size – UPS Module
—————————
Dimensions (WxHxD) (in.): 13.78 x 35.04 x 25.59
Dimensions (WxHxD) (mm.): 350 x 890 x 650
Weight (lbs.): 379.2
Weight (kg.): 172
——————————-
Physical Size – Battery Module
——————————-
Dimensions (WxHxD) (in.): 10.24 x 28.27 x 21.65
Dimensions (WxHxD) (mm.): 260 x 718 x 550
Weight (lbs.): 273.4
Weight (kg.): 124
——————–
Shipping Dimensions
——————–
Dimensions (WxHxD) (in.): 18.31 x 44.49 x 31.10
Dimensions (WxHxD) (mm.): 465 x 1130 x 790
Weight (lbs.): 418.9
Weight (kg.): 190
————–
Environmental
————–
Operating Temperature (°F): 32 ~ 104
Operating Temperature (°C): 0 ~ 40
Operating Relative Humidity (Non-condensing) ( % ): 0 ~ 90
Operating Elevation ( feet/meters ): ≤1000, Load Derated 1% per 100m from 1000m and 2000m
Storage Temperature (°F): 5 ~ 113
Storage Temperature (°C): -15 ~ 45
Storage Relative Humidity (Non-condensing) ( % ): 0 ~ 95
Storage Elevation ( feet/meters ): 0-49,213 feet (0-15,000 meters)
Online Thermal Dissipation ( BTU/hr ): 3487
Audible Noise at 1.5M from Surface of Unit ( dBA ): 60
—————
Certifications
—————
Certifications: CE
RoHS: Yes
———
WARRANTY
———
Product Warranty Period (Year): 2
Battery Warranty Period (Year): 2
