เครื่องสำรองไฟ Delta RT-2K-3Y Vendor Code: UPS202R2RT2B0B6S

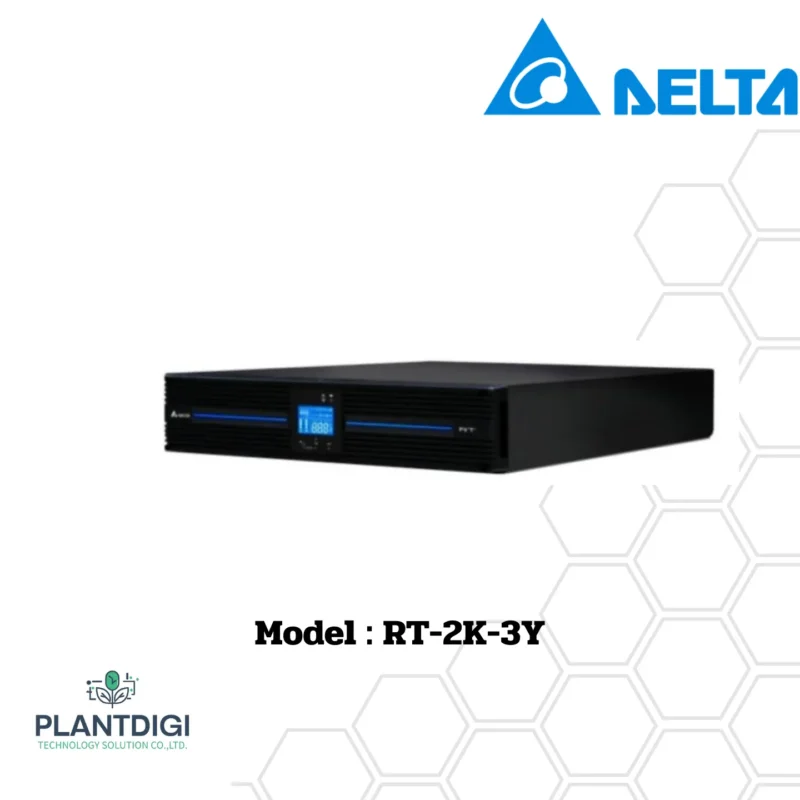

Delta RT-2K-3Y

Vendor Code: UPS202R2RT2B0B6S

The Delta Facelift RT Series 2kVA UPS (RT-2K-3Y) is a high-performance and dependable uninterruptible power supply, designed to ensure the continuous operation of critical devices. With an on-line topology, this UPS provides clean and stable power to protect sensitive equipment from power disturbances. The model comes with a 3-year warranty, offering long-term reliability and support.

Key Features:

• Power Rating: 2kVA / 1.8kW (with additional models 1kVA / 0.9kW and 3kVA / 2.7kW)
• Input Voltage Range:
  • 75 ~ 280 Vac (full load)
  • 120 ~ 175 Vac (70 ~ 100% load)
• Output: Pure sine wave with ± 1% voltage regulation (linear load)
• Battery:
  • Battery Voltage: 48 Vdc (RT-2K)
  • Recharge Time: 3 hours to 90% capacity
• Efficiency: Up to 94% (RT-2K/RT-3K) and 90% (RT-1K) in AC-AC mode
• Environment: Operates in temperatures from 0 to 50°C with noise levels below 43 dBA (RT-2K)
• Interface: Includes SMART Slot, RS-232 Port, USB Port, and REPO

This UPS is perfect for providing uninterrupted power to essential devices, protecting them from power interruptions and electrical noise. The Delta Facelift RT Series UPS is a reliable solution for both home and office environments, thanks to its robust design and advanced features.

Specifications:

• Model: RT-2K-3Y
• Vendor Code: UPS202R2RT2B0B6S
• Description: Delta Facelift RT Series 2kVA/1.8kW (2U) On-Line UPS with 3Y Warranty (UPS202R2RT2B0B6S)

Model:

• RT-1K / RT-2K / RT-3K

Power Rating:

• RT-1K: 1kVA / 0.9kW
• RT-2K: 2kVA / 1.8kW
• RT-3K: 3kVA / 2.7kW

Input:

• Nominal Voltage: 200/208/220/230/240 Vac
• Voltage Range:
  • 75 ~ 280 Vac (full load)
  • 120 ~ 175 Vac (70 ~ 100% load)
• Frequency: 40 ~ 70 Hz
• Power Factor: > 0.99 (full load)
• Current Harmonic Distortion: < 5%

Output:

• Power Factor: 0.9
• Voltage: 200/208/220/230/240 Vac
• Voltage Regulation: ± 1% (linear load)
• Frequency: 50/60 Hz ± 0.05 Hz
• Voltage Harmonic Distortion: < 2% (linear load)
• Overload Capability:
  • < 105%: Continuous
  • 105% ~ 125%: 1 minute
  • 125% ~ 150%: 15 seconds
• Receptacle:
  • RT-1K: IEC C13 x 6
  • RT-2K/RT-3K: IEC C13 x 6, IEC C19 x 1

Efficiency:

• AC-AC:
  • RT-1K: 90%
  • RT-2K/RT-3K: Up to 94%
• ECO Mode:
  • RT-1K: 96%
  • RT-2K/RT-3K: Up to 97%

Battery:

• Battery Voltage:
  • RT-1K: 24 Vdc
  • RT-2K: 48 Vdc
  • RT-3K: 72 Vdc
• Typical Backup Time:
  • RT-1K: 6.5 minutes
  • RT-2K/RT-3K: 7 minutes
• Charge Current:
  • RT-1K: 1.5A
  • RT-2K/RT-3K: 2A
• Recharge Time: 3 hours to 90%

Audible Noise:

• RT-1K: < 40 dBA
• RT-2K: < 43 dBA
• RT-3K: < 46 dBA

Display:

• LCD display and LED indicators

Communication Interfaces:

• SMART Slot x 1, RS-232 Port x 1, USB Port x 1, REPO x 1

Conformance:

• EN 62040-1, CE, TISI, RCM, EAC

Dimensions (W x D x H):

• UPS:
  • RT-1K: 440 x 335 x 89 mm
  • RT-2K: 440 x 432 x 89 mm
  • RT-3K: 440 x 610 x 89 mm
• External Battery Pack:
  • RT-1K: 440 x 335 x 89 mm
  • RT-2K: 440 x 432 x 89 mm
  • RT-3K: 440 x 610 x 89 mm

Weight:

• UPS:
  • RT-1K: 12 kg
  • RT-2K: 18 kg
  • RT-3K: 28 kg
• External Battery Pack:
  • RT-1K: 15 kg
  • RT-2K: 27 kg
  • RT-3K: 44 kg

Environment:

• Operating Temperature: 0 ~ 50°C
• Relative Humidity: 5% ~ 95% (non-condensing)
