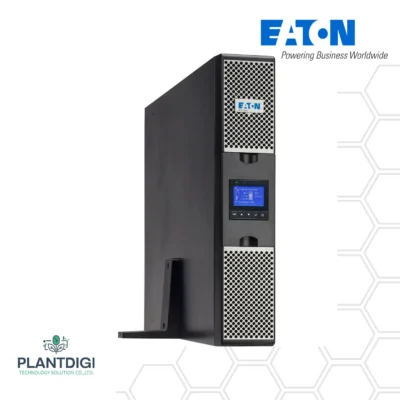

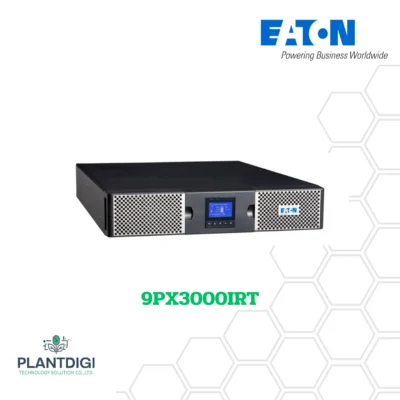

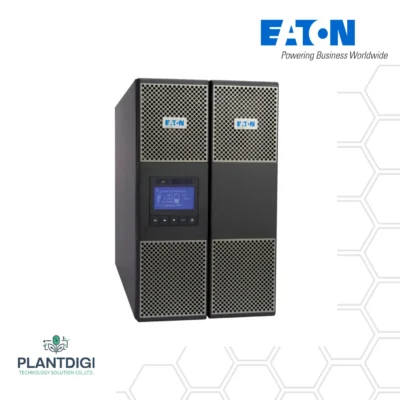

เครื่องสำรองไฟ Eaton 9PX รุ่น 9PX3000IRT

Eaton 9PX3000IRT

Eaton 9PX UPS, 3000 VA, 3000 W, Input: C20, Outputs: (8) C13, (2) C19, Rack/tower, 2U

‘Eaton 9PX 3000i RT2U
———————–
General specifications
———————–
Product Name: Eaton 9PX UPS
Catalog Number: 9PX3000IRT
UPC: 743172081384
Product Length/Depth: 60.5 cm
Product Height: 8.65 cm
Product Width: 44 cm
Product Weight: 27.57 kg
Compliances: CE Marked, TUV, cULus Listed, CSA 22.2, FCC part 15 Class B, CISPR22 Class B
Certifications: cULus Listed, EAC, CE, ENERGY STAR certified, IEC/EN 62040-1, UL 1778, IEC/EN 62040-2

——–
Battery
——–
Battery management: ABM & Temperature compensated charging method (user selectable), Automatic battery test, Deep discharge protection, Automatic recognition of external battery units
Battery replacement:Hot-swappable internal batteries and extended battery modules (EBMs)
Battery quantity: 6
Battery rating: 12 V / 9 Ah
Battery type: Sealed, lead-acid
Extended battery capability: Yes

——————
Electrical output
——————

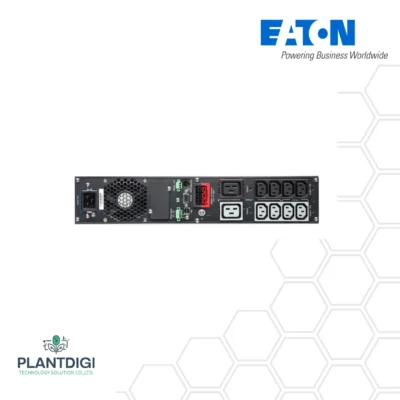

Receptacle: (8) C13, (2) C19
Output power factor: 1
Output waveform: Sine wave
Voltage: 230V
VA rating: 3000 VA
Wattage: 3000 W
Output nominal voltage: 230V default (200/208/220/230/240V)
Voltage distortion output (linear load) – max: 3
Feed type: 1
Topology: Online/Double-conversion

—————–
Electrical input
—————–
Input connection: C20
Input cord length: 1.8m
Input nominal voltage: 230V default (200/208/220/230/240V)
Nominal frequency: 50/60 Hz
Input frequency range: 40-70 Hz
Input power factor: >.99

—————
การสื่อสาร
—————
Communication: USB port (HID compliant), Serial port (RS232), Mini terminal block for remote On/Off, Mini-terminal block for remote power off, Mini-terminal block for output relay, Dry contacts (3 outputs, 1 input, optocoupler, DB9)
Expansion slots: One slot for optional communication card
Ethernet interface: No
Includes network card: No
Software compatibility: Eaton Intelligent Power Manager, Eaton Intelligent Power Protector

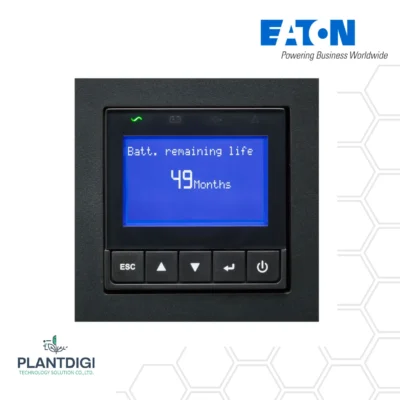

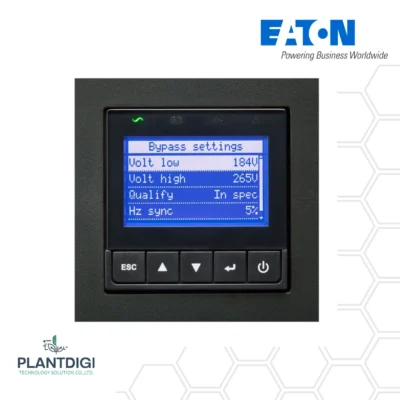

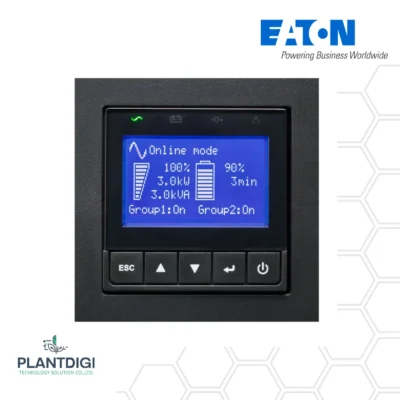

User interface: Multilingual graphical LCD display
Type of interface: Other
Potential free switch contact: Yes

————–
สภาพแวดล้อม
————–
Altitude: 3000 m
BTU Rating: Online: 614
Noise level: <40 dB at 1 meter
Relative humidity: 0-96% non-condensing
Temperature range: 0° to 40°C (32° to 104°F)

—————
ข้อมูลจำเพาะเพิ่มเติม
—————

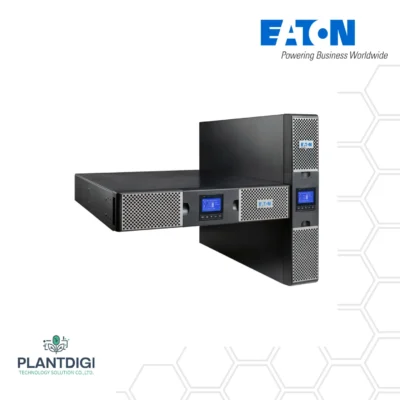

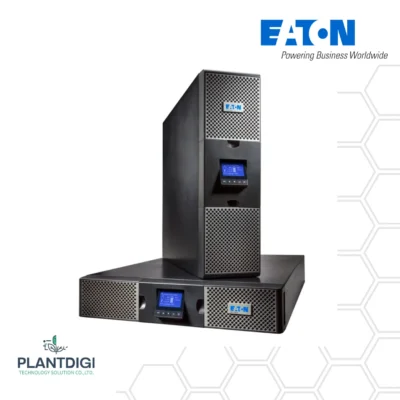

Form factor: Rack/tower

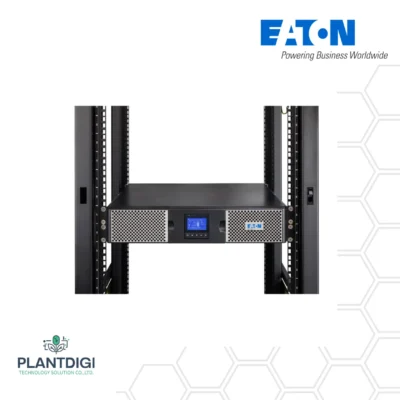

Rack size: 2U
Construction type: 482.6 mm (19 inch) device
Color: Black/silver
Rack mounting kit: Yes
Package contents: UPS, Input cable, (2) IEC-IEC output cables, USB cable, Serial cable, (2) brackets for 19’ mounting, (2) Rack-mounting kit, (2) Supports for tower mounting, Cable locking system, Safety instructions, Quickstart guide
Efficiency: 94
Phase (input): 1
Phase (output): 1
Internal bypass: Yes
Hot swap power: No
Auto shutdown function: Yes
