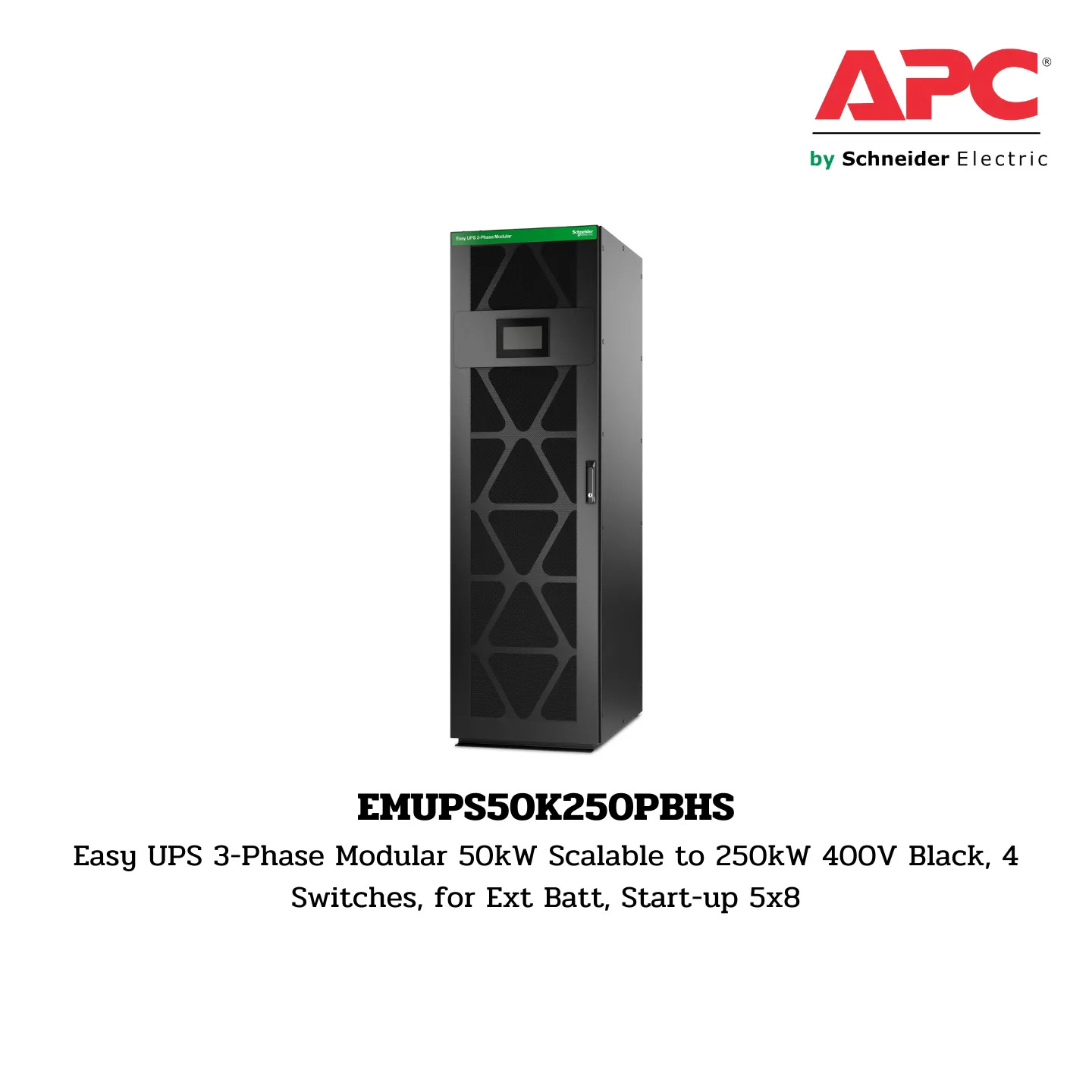

เครื่องสำรองไฟ APC EMUPS50K250PBHS รุ่น Easy UPS 3-Phase Modular

APC EMUPS50K250PBHS
Easy UPS 3-Phase Modular 50kW Scalable to 250kW 400V Black, 4 Switches, for Ext Batt, Start-up 5×8

Presentation

EMUPS50K250PBHS: The Easy UPS 3-Phase Modular uninterruptible power supply is a robust, modular, high-density 50 kW, 400V 3-phase UPS that is scalable up to 250 kW N+1. It delivers high availability, scalability, and redundancy in a compact footprint in a cost-optimized, EcoStruxure connected package ideal for small and medium data centers and other business-critical applications. Includes 5×8 start-up service and 4 switches.

Lead Time

• Usually ships within 2 weeks

Main Specifications

• Main Input Voltage: 400 V
• Other Input Voltage: 400 V
• Main Output Voltage: 400 V
• Other Output Voltage: 400 V
• Rated Power in W: 50 kW
• Rated Power in VA: 50 kVA
• Battery Type: VRLA
• Provided Equipment: User manual, Dust filter, Network management card, Start-up service
• Range of Product: Easy UPS 3-Phase Modular
• Range Compatibility: Easy UPS 3-Phase Modular

Batteries & Runtime

• Battery Voltage: 480…576 V DC
• Max Current Discharge: 130 A

General

• Bypass Voltage Tolerance: +/- 10%
• Max Bypass Input Current: 74 A
• Number of Power Modules: 1
• Number of Power Module Free Slots: 5
• Redundant: Yes
• Product or Component Type: Uninterruptible power supply (UPS)

Physical Specifications

• Colour: Black
• Dimensions: 199.1 cm (H) x 60 cm (W) x 85 cm (D)
• Net Weight: 251 kg
• USB Compatible: Yes

Input

• Network Frequency: 40…70 Hz
• Maximum Input Current: 95 A
• Max Short Time Withstand Current: 35 kA
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: From 0.7 leading to 0.7 lagging without any derating

Output

• Maximum Configurable Power in W: 250 kW
• Output Frequency: 50…60 Hz
• UPS Type: Double conversion online
• Output Harmonic Distortion: < 1% linear load and < 3% non-linear load
• Maximum Configurable Power in VA: 250 kVA

Conformance

• Standards: IEC 62040-1 safety, IEC 62040-2, IEC 62040-3, IEC 61641

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3000 m
• Storage Temperature: -25…55 °C
• Storage Relative Humidity: 0…95% non-condensing
• Acoustic Level: 74 dB
• Heat Dissipation: 8414 Btu/h
• IP Degree of Protection: IP20

Packing Units

• Package Type: PCE
• Package Height: 219.1 cm
• Package Width: 120 cm
• Package Length: 80 cm
• Package Weight: 295 kg
• Number of Units in Package: 1
