เครื่องสำรองไฟ APC Easy UPS 3S รุ่น E3SUPS10KHB

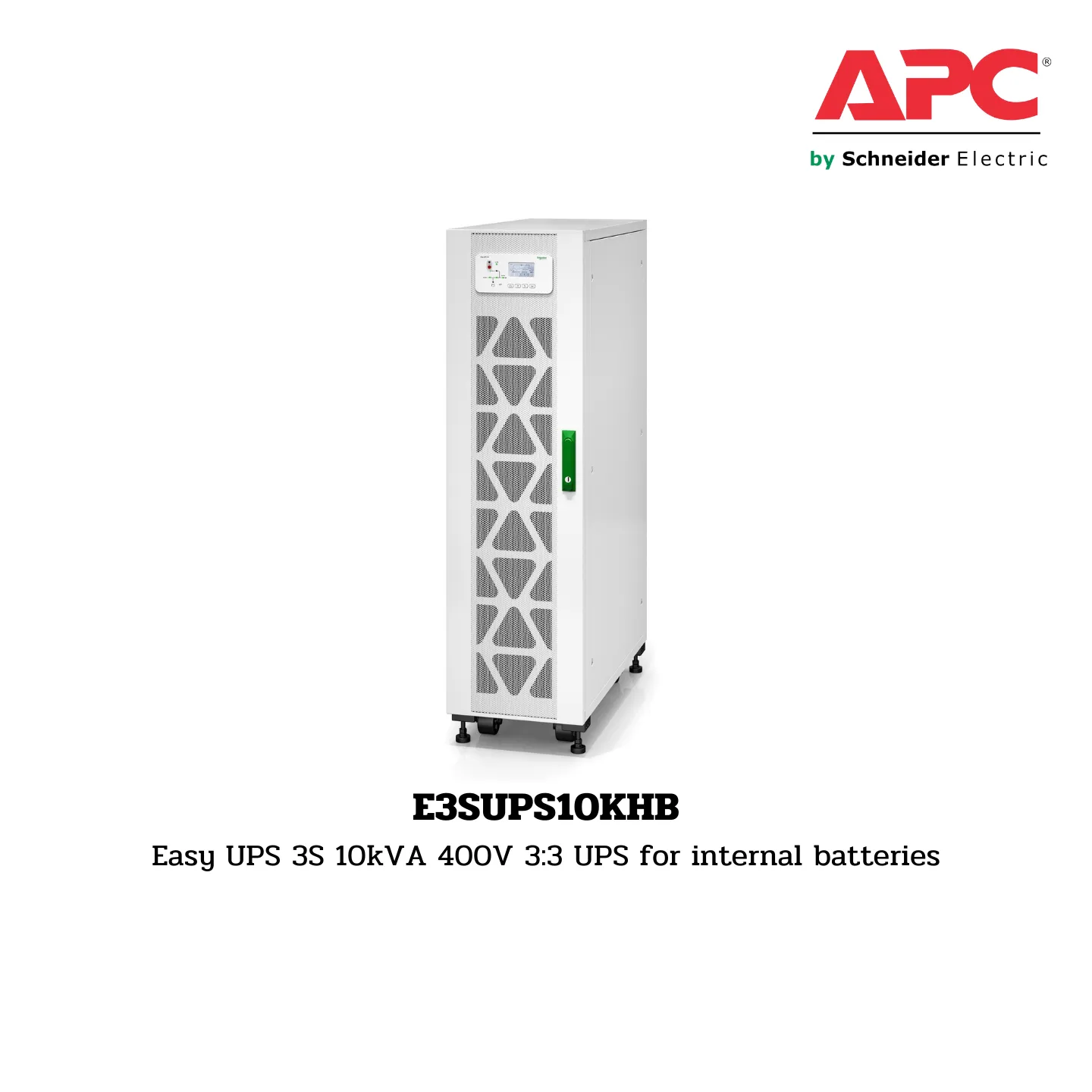

APC E3SUPS10KHB
Easy UPS 3S 10kVA 400V 3:3 UPS for internal batteries

Presentation

E3SUPS10KHB : A highly efficient 3-phase UPS designed to ensure business continuity in small and medium data centers or electrical rooms. This 10 kVA UPS, featuring a 400V 3-phase input and output, is easy to install, operate, maintain, and service. It includes a dust filter and conformance-coated boards for harsh environments. This UPS is intended for internal batteries but is supplied without batteries, allowing you to customize the battery runtime. For detailed battery runtime information, please refer to the runtime charts under the Documents tab.

Lead Time

Usually ships within 6 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 400 V (3 phases)
• Other Output Voltage: 380 V, 415 V
• Rated Power: 10 kW / 10 kVA
• Provided Equipment: Dust filter, Installation guide
• Product Type: Uninterruptible Power Supply (UPS)

Batteries & Runtime

• Battery Type: VRLA
• Battery Voltage: 240 V
• Maximum Short-Circuit Current: 10 kA
• Battery Slots: 0 filled, 3 free
• Discharge Battery Voltage: +/- 198 V DC

Physical Specifications

• Colour: White (RAL 9003)
• Dimensions: 140 cm (H) x 38 cm (W) x 92.8 cm (D)
• Net Weight: 112 kg
• USB Compatible: Yes

Input Specifications

• Maximum Input Current: 18 A
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: 0.9 leading to 0.9 lagging
• Input Power Factor: 0.99 at full load
• Input Voltage Limits: 304…477 V
• Network Frequency: 45…65 Hz

Output Specifications

• Maximum Configurable Power: 10 kVA / 10 kW
• Output Frequency: 50 Hz / 60 Hz (sync to mains)
• Harmonic Distortion: Less than 3%
• Output Harmonic Distortion: < 3% linear load
• Output Overload Operation: 130-150% for 1 minute and 125-130% for 10 minutes
• Output Voltage Tolerance: +/- 1.5%
• UPS Type: Double conversion online

Conformance

• Product Certifications: CE, EAC, RCM

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3333 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0…15240 m
• Acoustic Level: 60 dBA
• Heat Dissipation: 516 W
• IP Protection: IP20

Packing Units

• Package Type: PCE
• Package Height: 164 cm
• Package Width: 101.4 cm
• Package Length: 56.3 cm
• Package Weight: 145 kg
• Number of Units in Package: 1
