เครื่องสำรองไฟ APC Easy UPS 3S รุ่น E3SUPS40KH

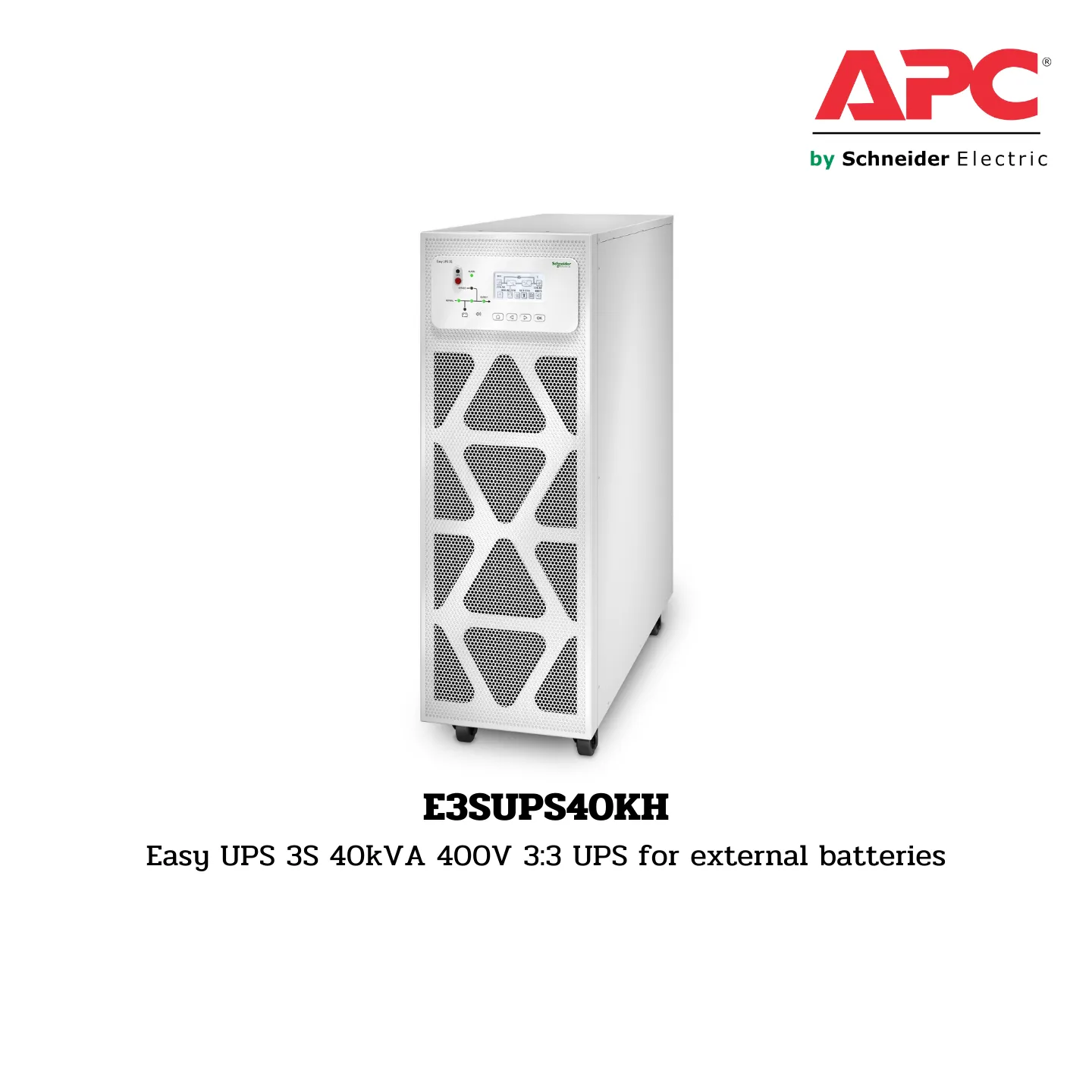

APC E3SUPS40KH
Easy UPS 3S 40kVA 400V 3:3 UPS for external batteries

Presentation

E3SUPS40KH: A high-efficiency 3-phase UPS designed to ensure business continuity in small and medium data centers or electrical rooms. This 40 kVA UPS, featuring a 400V 3-phase input and output, is easy to install, operate, maintain, and service. It includes a dust filter and conformance-coated boards for harsh environments. This UPS is supplied without batteries, allowing you to customize the battery solution as needed.

Lead Time

• Usually ships within 6 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 400 V (3 phases)
• Other Output Voltage: 380 V, 415 V
• Rated Power: 40 kW / 40 kVA
• Provided Equipment: Dust filter, Installation guide
• Product Type: Uninterruptible Power Supply (UPS)

Batteries & Runtime

• Battery Type: External battery system
• Maximum Short-Circuit Current: 10 kA
• Battery Slots: 0 filled, 0 free

Physical Specifications

• Colour: White (RAL 9003)
• Dimensions: 77 cm (H) x 25 cm (W) x 90 cm (D)
• Net Weight: 70 kg
• USB Compatible: Yes

Input Specifications

• Maximum Input Current: 73 A
• Load Power Factor: 0.9 leading to 0.9 lagging
• Input Power Factor: 0.99 at full load
• Input Voltage Limits: 304…477 V
• Network Frequency: 45…65 Hz

Output Specifications

• Maximum Configurable Power: 40 kVA / 40 kW
• Output Frequency: 50 Hz / 60 Hz (sync to mains)
• Harmonic Distortion: Less than 3%
• Output Harmonic Distortion: < 3% linear load
• Output Overload Operation: 10 minutes at 125%, 60 seconds at 150%
• UPS Type: Double conversion online
• Bypass Type: Built-in maintenance bypass
• Crest Factor: 3:1

Conformance

• Product Certifications: CE, EAC, RCM

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3281 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0…14999.8 m
• Acoustic Level: 63 dBA
• Heat Dissipation: 1880 W
• IP Protection: IP20

Packing Units

• Package Type: PCE
• Package Height: 101.5 cm
• Package Width: 105 cm
• Package Length: 40 cm
• Package Weight: 86 kg
• Number of Units in Package: 1
