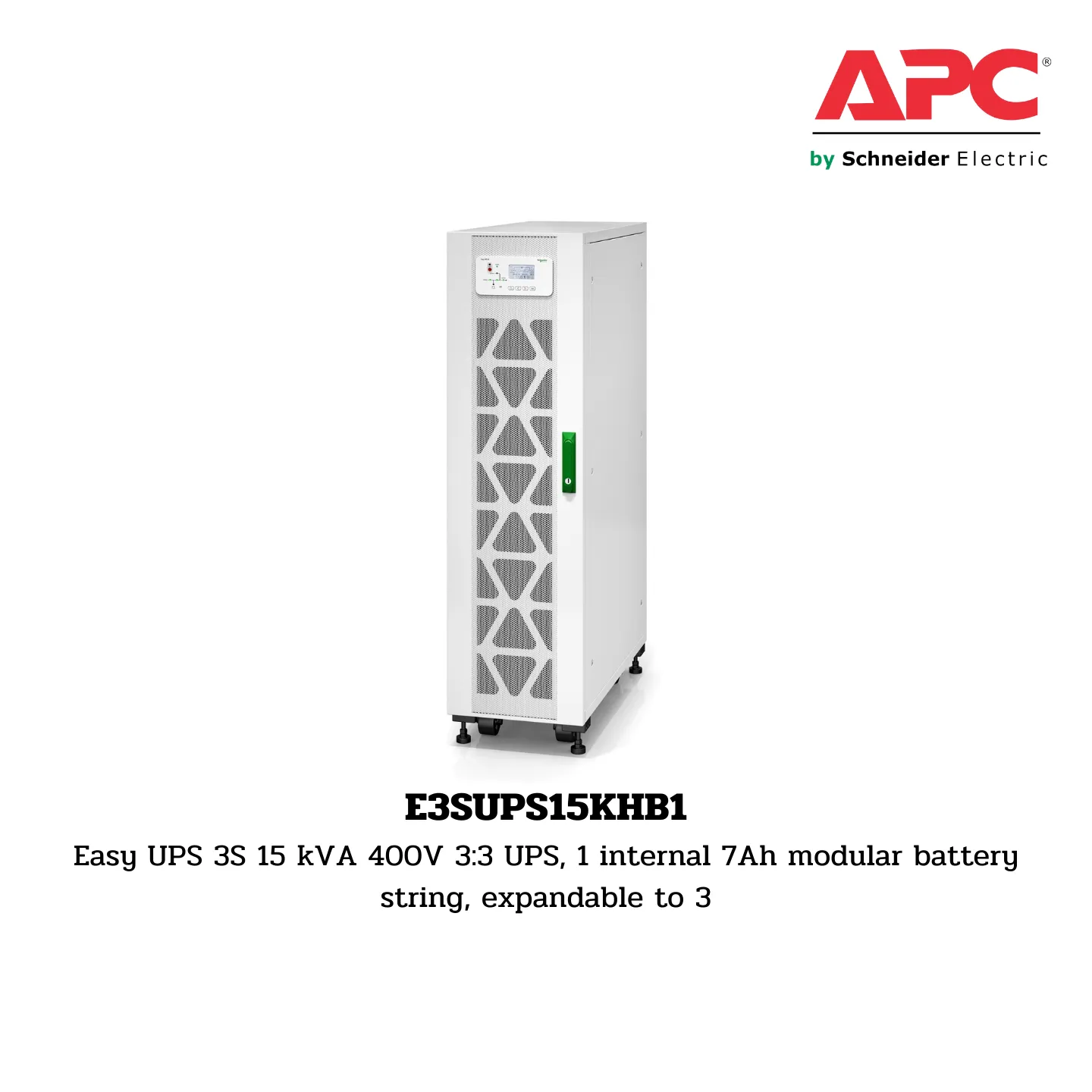

เครื่องสำรองไฟ APC Easy UPS 3S E3SUPS15KHB1

APC E3SUPS15KHB1
Easy UPS 3S 15 kVA 400V 3:3 UPS, 1 internal 7Ah modular battery string, expandable to 3

Presentation

E3SUPS15KHB1: A highly efficient 3-phase UPS designed to ensure business continuity in small and medium data centers or electrical rooms. This 15 kVA UPS, featuring a 400V 3-phase input and output, is easy to install, operate, maintain, and service. It includes a dust filter and conformance-coated boards for harsh environments and comes with one internal 7Ah modular battery string, expandable to three strings for extended runtime.

Lead Time

• Usually ships within 6 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 400 V (3 phases)
• Other Output Voltage: 380 V, 415 V
• Rated Power: 15 kW / 15 kVA
• Provided Equipment: Dust filter, Installation guide
• Product Type: Uninterruptible Power Supply (UPS)

Batteries & Runtime

• Battery Type: VRLA
• Battery Voltage: 240 V
• Maximum Short-Circuit Current: 10 kA
• Battery Slots: 1 filled, 2 free

Physical Specifications

• Colour: White (RAL 9003)
• Dimensions: 140 cm (H) x 38 cm (W) x 92.8 cm (D)
• Net Weight: 436 kg
• USB Compatible: Yes

Input Specifications

• Maximum Input Current: 28 A
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: 0.9 leading to 0.9 lagging
• Input Power Factor: 0.99 at full load
• Input Voltage Limits: 304…477 V
• Network Frequency: 45…65 Hz

Output Specifications

• Maximum Configurable Power: 15 kVA / 15 kW
• Output Frequency: 50 Hz / 60 Hz (sync to mains)
• Harmonic Distortion: Less than 3%
• Output Harmonic Distortion: < 3% linear load
• Output Voltage Tolerance: +/- 1.5%
• UPS Type: Double conversion online

Conformance

• Product Certifications: CE, EAC, RCM

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3333 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 0…95% non-condensing
• Storage Altitude: 0…15240 m
• Acoustic Level: 60 dBA
• Heat Dissipation: 852 W
• IP Protection: IP20

Packing Units

• Package Type: PCE
• Package Height: 164 cm
• Package Width: 101.4 cm
• Package Length: 56.3 cm
• Package Weight: 481 kg
• Number of Units in Package: 1
