เครื่องสำรองไฟ APC Galaxy VS รุ่น GVSUPS40K0B4HS

APC GVSUPS40K0B4HS

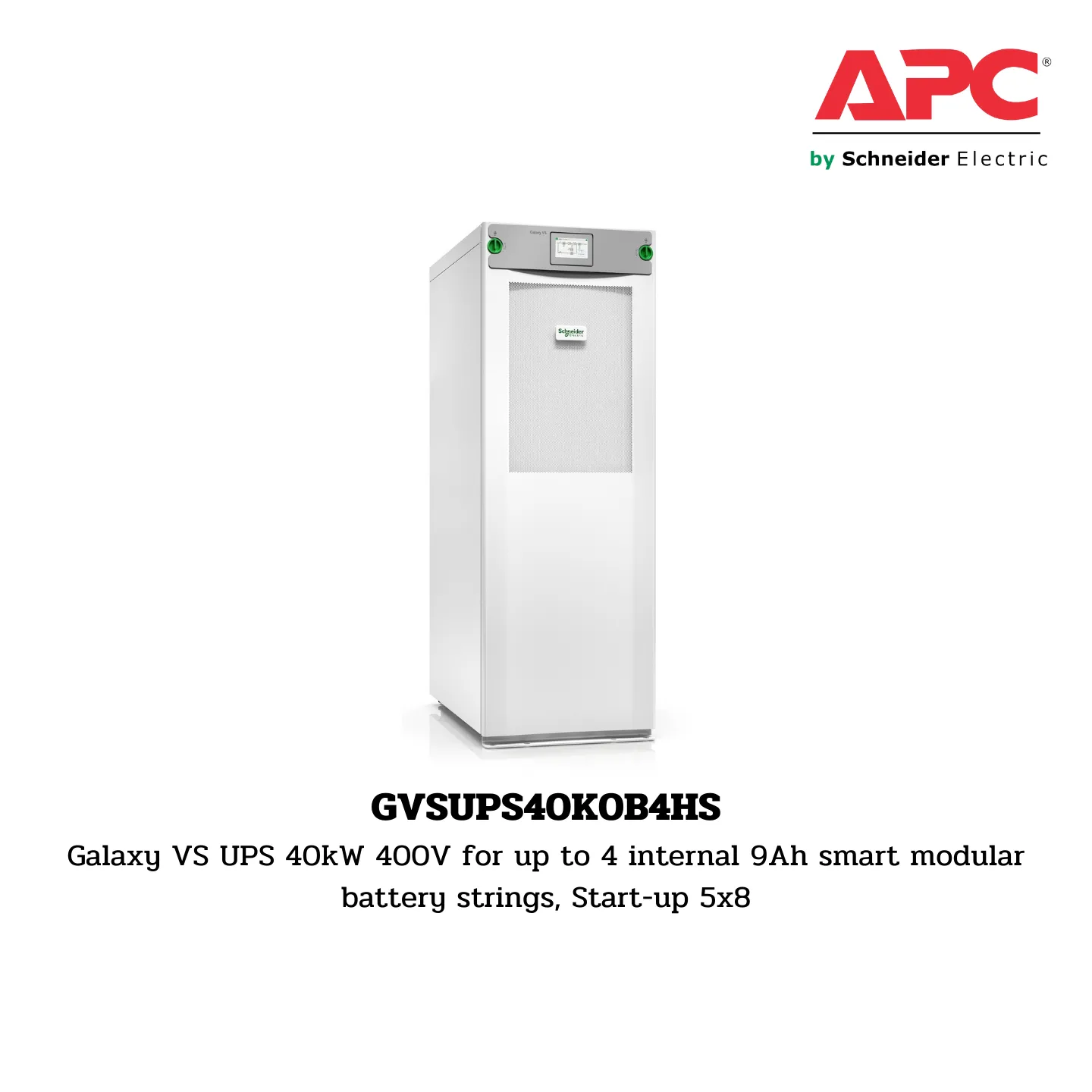

GVSUPS40K0B4HS Galaxy VS UPS 40kW 400V for up to 4 internal 9Ah smart modular battery strings, Start-up 5×8

Presentation

GVSUPS40K0B4HS APC Highly efficient and easy-to-deploy 40 kW, 400V 3-phase UPS that brings best-in-class power protection and low total cost of ownership to edge, small and medium data centers, as well as to critical infrastructure in commercial and industrial applications. This UPS supports up to four smart modular high-capacity battery strings but is supplied without batteries, so you can easily customize the battery runtime. Includes 5×8 start-up service.

Lead Time

• Usually ships within 2 weeks

Main Specifications

• Main Input Voltage: 400 V (3 phases)
• Other Input Voltage: 380 V, 415 V
• Main Output Voltage: 400 V (3 phases)
• Other Output Voltage: 380 V, 415 V
• Rated Power: 40 kW / 40 kVA
• Battery Type: Internal modular battery, VRLA
• Provided Equipment: Dust filter, Installation manual, Integrated network management, Start-up service, EcoStruxure Ready
• Product Type: Uninterruptible Power Supply (UPS)
• Range of Product: Galaxy VS

Batteries & Runtime

• Battery Voltage: 480 V
• Discharge Battery Voltage: 384 V
• Maximum Current Discharge: 109 A
• Extended Runtime: 0
• Battery Power in VAh: 0 VAh runtime

General

• Redundant: No

Physical Specifications

• Colour: White
• Dimensions: 148.5 cm (H) x 52.1 cm (W) x 84.7 cm (D)
• Net Weight: 200 kg
• USB Compatible: No

Input Specifications

• Network Frequency: 40…70 Hz
• Input Voltage Limits: 340…460 V 400 V
• Maximum Input Current: 72 A
• Max Short Time Withstand Current: 65 kA
• Input Harmonic Distortion: Less than 3% for full load
• Load Power Factor: From 0.7 leading to 0.7 lagging without any derating
• Input Power Factor: 0.99 at full load

Output Specifications

• Maximum Configurable Power: 40 kW
• Harmonic Distortion: Less than 3%
• Output Frequency: 50 Hz sync to mains, 60 Hz sync to mains
• Crest Factor: 2.5
• Wave Type: Sine wave
• Output Voltage Tolerance: +/-1% after 50ms, +/- 5% after 2ms
• Output Harmonic Distortion: < 1% linear load and < 3% non-linear load
• Output Overload Operation: 10 minutes at 125% and 60 seconds at 150%
• Bypass Type: Built-in static bypass

Conformance

• Standards: IEC 62040-1-1, IEC 62040-2, OSHPD

Environmental Specifications

• Operating Temperature: 0…40 °C
• Relative Humidity: 0…95% non-condensing
• Operating Altitude: 0…3300 ft
• Storage Temperature: -15…40 °C
• Storage Relative Humidity: 10…80% non-condensing
• Storage Altitude: 0…3048 m
• Acoustic Level: 61 dBA
• Heat Dissipation: 4658 Btu/h
• IP Protection: IP20

Communications & Management

• Control Panel: Touch screen LCD user interface

Packing Units

• Package Type: PCE
• Package Height: 168 cm
• Package Width: 99 cm
• Package Length: 64 cm
• Package Weight: 200 kg
• Number of Units in Package: 1
