เครื่องสำรองไฟ APC SMTL3000RMI2UC รุ่น APC Smart-UPS Lithium Ion

APC SMTL3000RMI2UC

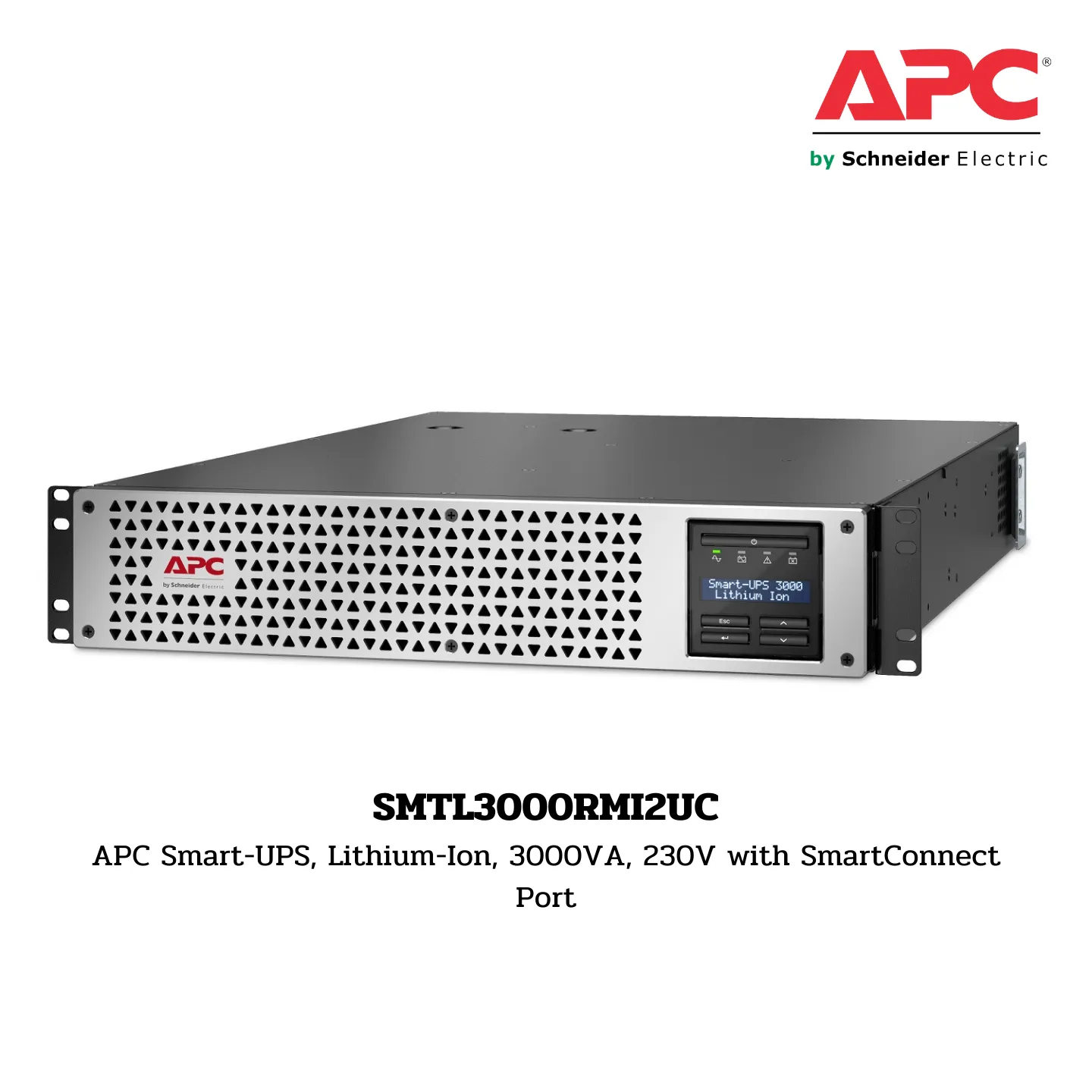

APC Smart-UPS, Lithium-Ion, 3000VA, 230V with SmartConnect Port

Overview

APC Smart-UPS, Lithium-Ion, 3000VA, 230V with SmartConnect Port

Specifications

Main

• Run time for load: 2700 W, Min-max: 270-2700 W, 5min 19s
• Max. Capacity Used: 100 %
• Main Input Voltage: 230 V (Other: 220 V, 240 V)
• Main Output Voltage: 230 V (Other: 220 V, 240 V)
• Rated power: 2700 W
• Rated power in VA: 3000 VA
• Input Connection Type: IEC 60320 C20

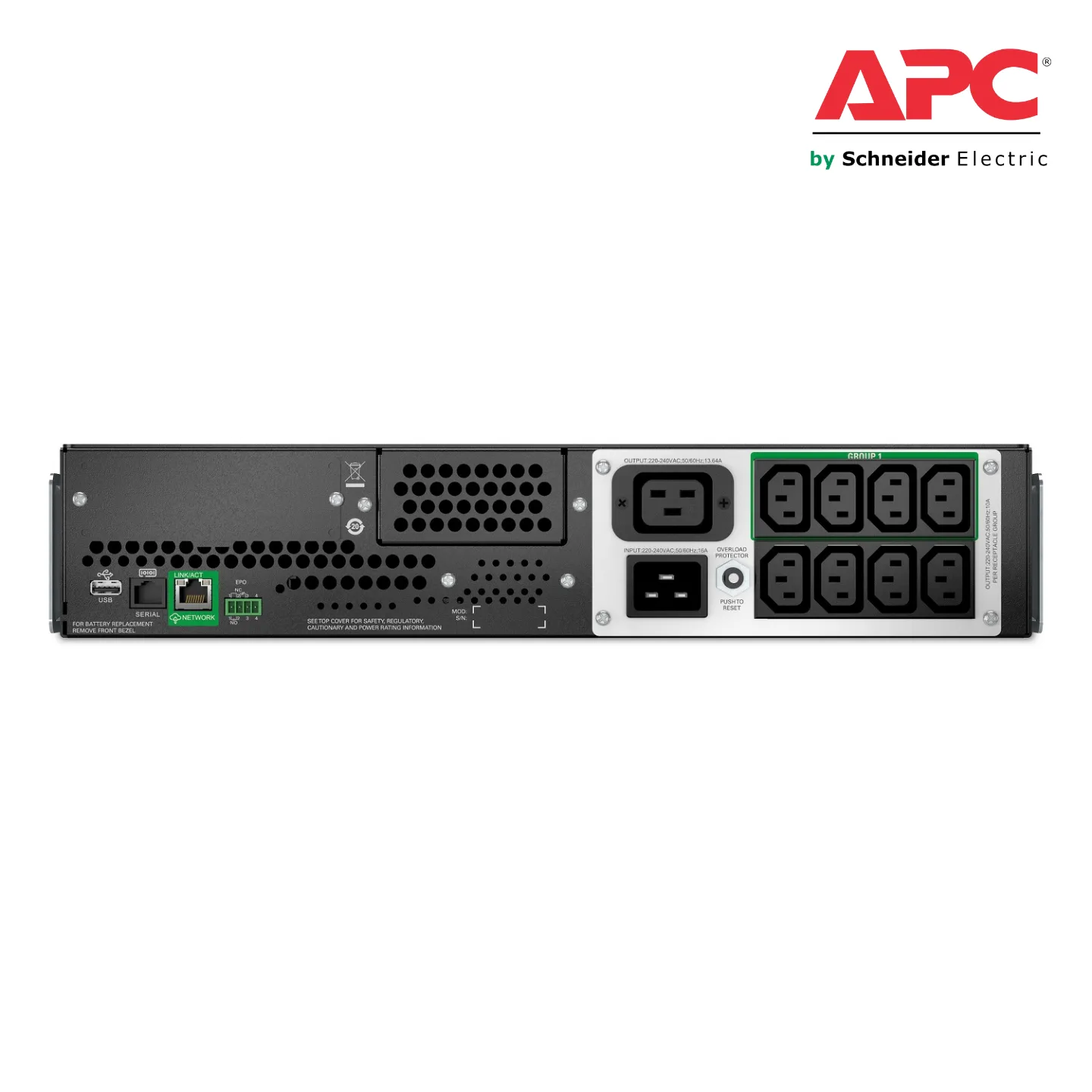

• Output connection type: 8 IEC 60320 C13, 1 IEC 60320 C19
• Number of rack unit: 2U
• Battery type: Li-Ion (Lithium-Ion)

Provided Equipment

• Rack mounting brackets
• Rack mounting support rails
• Screw
• Washer
• USB cable
• Ethernet patch cable

Complementary

• Communication port type: SmartConnect Ethernet port, SmartSlot
• Software package: SmartConnect software for remote power monitoring (availability varies by terms of use)

Batteries & Runtime

• Run Time: View Runtime Graph
• Efficiency: View Efficiency Graph
• Battery recharge time: 2 hours
• Battery design life: 8-10 years
• Battery charger power: 216 W rated
• Replacement battery: APCRBC174-LI

Physical

• Colour: Black with silver front bezel
• Height: 8.6 cm
• Width: 43.2 cm
• Depth: 68.3 cm
• Net weight: 33.3 kg
• Mounting preference: Lower
• Mounting mode: Rack-mounted
• USB compatible: Yes

Input

• Input protection type: Circuit breaker
• Input voltage limits: 160-286 V
• Network frequency: 50/60 Hz +/- 3 Hz auto-sensing

Output

• Crest factor: 3 : 1
• Maximum configurable power: 3000 VA / 2700 W
• Transfer time: 6 ms typical, 10 ms maximum
• UPS type: Line interactive
• Wave type: Sine wave
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains

Conformance

• Product certifications: UK PSTI

Environmental

• Acoustic level: 55 dB
• Operating altitude: 0-10000 ft
• Ambient air temperature for operation: 0-40 °C
• Ambient air temperature for storage: -15-45 °C
• IP degree of protection: IP20
• Relative humidity: 0-95 % non-condensing

Communications & Management

• Alarm: Audible and visible alarms
• Control panel: Multifunction LCD status and control console
• Emergency power off: Yes
• Free slots: 1
• Communication port support: SmartConnect Ethernet port (availability varies by terms of use)
• Alarm: Alarm when on battery, distinctive low battery alarm

Surge Protection and Filtering

• Surge energy rate: 739 J

Packing Units

• Unit Type of Package 1: PCE
• Number of Units in Package 1: 1
• Package 1 Height: 45.8 cm
• Package 1 Width: 60 cm
• Package 1 Length: 98 cm
• Package 1 Weight: 41.5 kg
