เครื่องสำรองไฟ APC SRVL1KRIRK รุ่น APC Smart-UPS Lithium Ion

APC SRVL1KRIRK

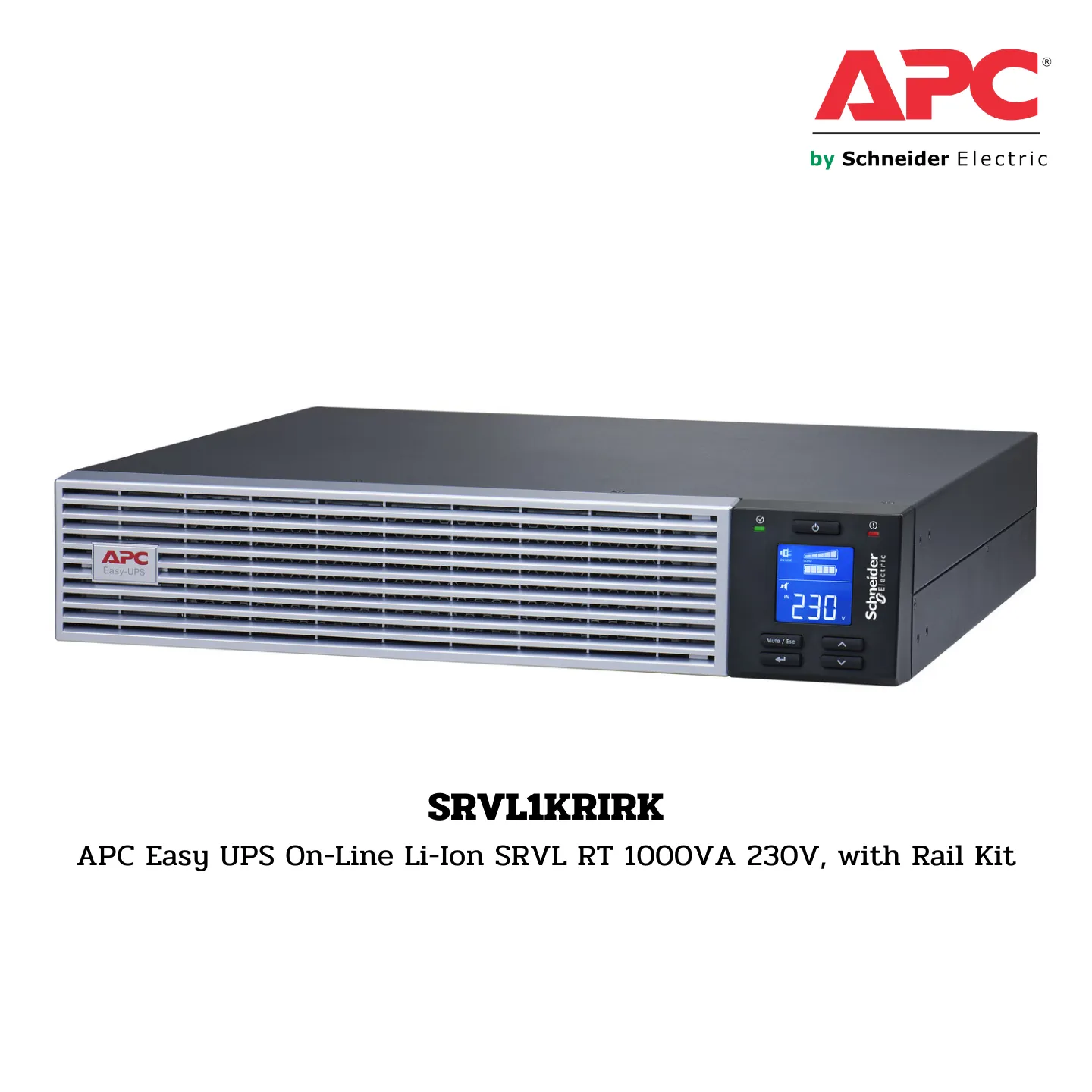

APC Easy UPS On-Line Li-Ion SRVL RT 1000VA 230V, with Rail Kit

Overview

APC Easy UPS On-Line Li-Ion SRVL RT 1000VA 230V, with Rail Kit

Specifications

Main

• Run time for load: 900 W, Min-max: 90-900 W, 10min 6s
• Max. Capacity Used: 100 %
• Main Input Voltage: 230 V
• Product or component type: Uninterruptible power supply (UPS)
• Other Input Voltage: 230 V
• Main Output Voltage: 230 V
• Other Output Voltage: 220 V, 240 V
• Rated power: 900 W
• Rated power in VA: 1000 VA

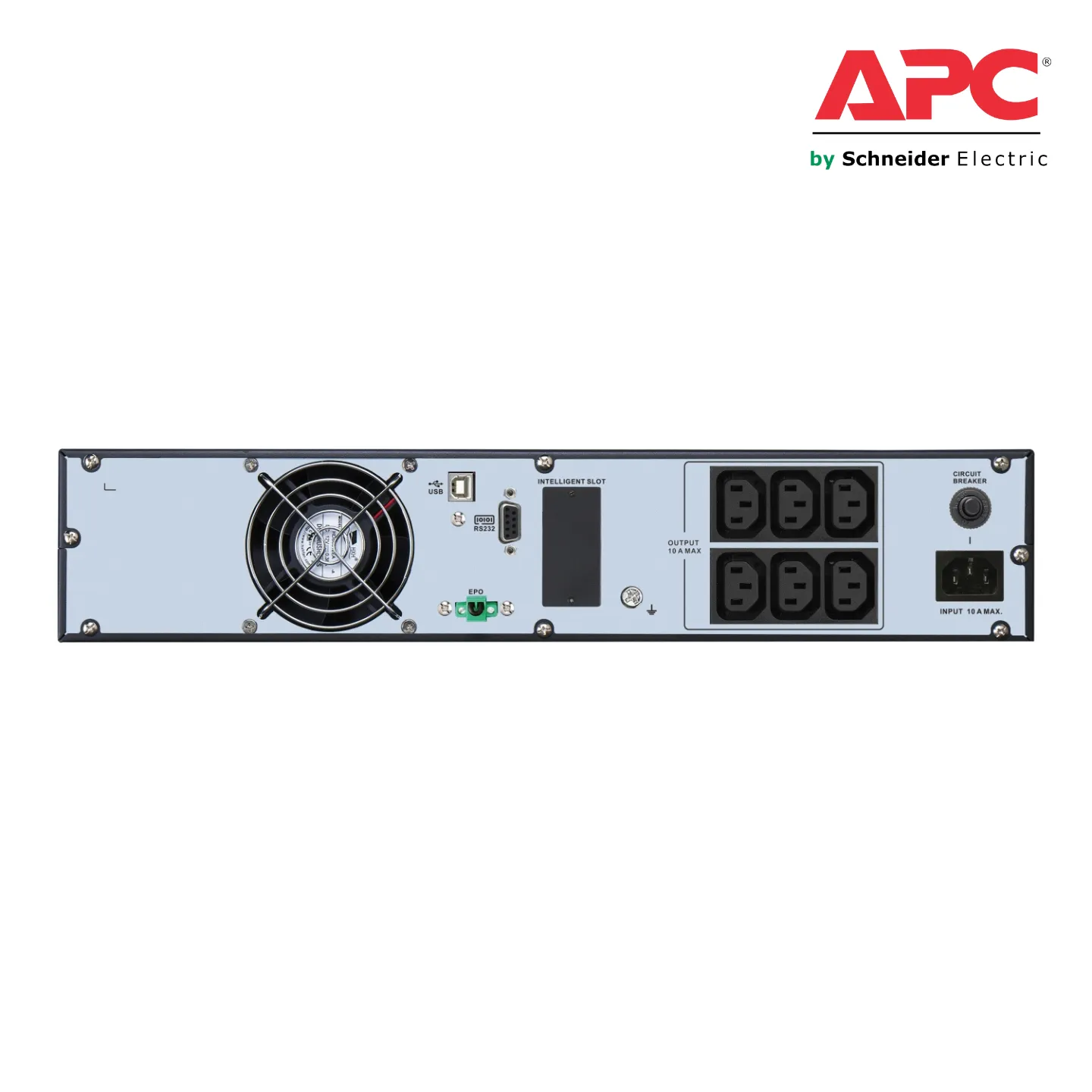

• Input Connection Type: IEC 60320 C14
• Output connection type: 6 IEC 60320 C13
• Number of rack unit: 2U

Provided Equipment

• Basic UPS signalling RS-232 cable
• USB cable
• C13-C14 power cord
• IEC-C14 – Shuko input power cord
• Rack mounting brackets
• Rack mounting support rails
• Stabilization feet
• User manual
• Safety guide

Complementary

• Range of product: Easy UPS On-Line

Batteries & Runtime

• Run Time: View Runtime Graph
• Efficiency: View Efficiency Graph
• Battery type: Li-Ion (Lithium-Ion)
• Battery voltage: 38.4 V
• Battery recharge time: 1.5 hours
• Battery design life: 8-10 years
• Replacement battery: RBCV181-LI

Physical

• Colour: Black with silver front bezel
• Height: 8.6 cm
• Width: 43.8 cm
• Depth: 45.2 cm
• Net weight: 12.9 kg
• USB compatible: Yes
• Mounting position: Horizontal and vertical

Input

• Input voltage limits: 160-300 V full load, 110-300 V 60 % load
• Network frequency: 40-70 Hz auto-sensing

Output

• Maximum configurable power: 1000 VA / 900 W
• Output frequency: 50/60 Hz +/- 3 Hz sync to mains
• UPS type: Double conversion online
• Wave type: Sine wave
• Efficiency: 90 % (full load)
• Bypass type: Internal bypass (automatic and manual)
• Crest factor: 3 : 1

Conformance

• Product certifications: CB, CE, UKCA, UN 38.3, IEC 62619

Environmental

• Ambient air temperature for operation: 0-40 °C
• Relative humidity: 0-95 % non-condensing
• Operating altitude: 0-3000 m
• Ambient air temperature for storage: -20-50 °C
• Storage Relative Humidity: 0-95 % non-condensing
• Storage altitude: 0-15000 m
• Acoustic level: 50 dBA
• Heat dissipation: 341 Btu/h
• IP degree of protection: IP20

Communications & Management

• Alarm: Alarm when on battery, distinctive low battery alarm, overload continuous tone alarm
• Emergency power off: Yes
• Control panel: Multifunction LCD status and control console

Surge Protection and Filtering

• Surge energy rate: 945 J

Packing Units

• Unit Type of Package 1: PCE
• Number of Units in Package 1: 1
• Package 1 Height: 24 cm
• Package 1 Width: 55 cm
• Package 1 Length: 58 cm
• Package 1 Weight: 18.3 kg
